36. Length of Plane Curves

Dated: 30-10-2024

The Arc Length Problem

The continuous functions1 are also called smooth functions and their graphs are called smooth curves.
Pasted image 20240928102906.png

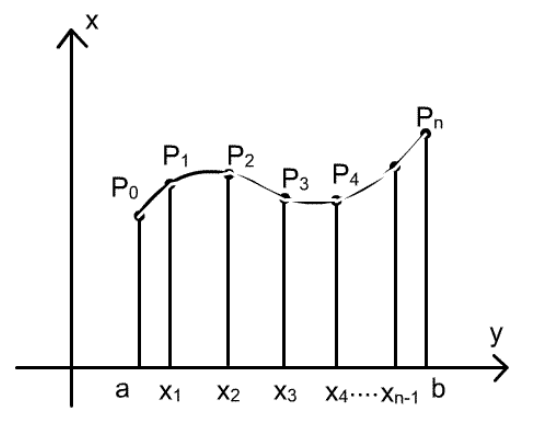

We can divide the curve into small enough intervals2 such that the distances between the points on the curve appear to be within a straight line.3
This way, we can cover the whole curve and accurately measure the arc length.

Pasted image 20240928104406.png

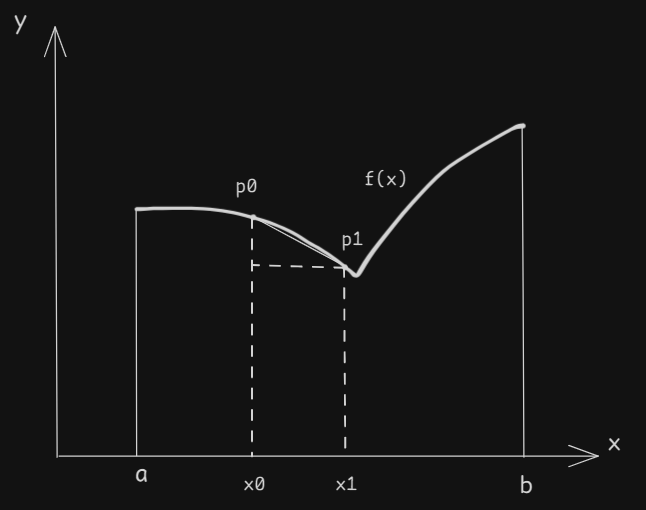

If we want to know the length of \(\overline{P_0 P_1}\), we can use pythagorus theorem.

\[m\overline{P_0 P_1} = \sqrt{\Delta x^2 + \Delta y^2}\]
\[\because \Delta x = x_1 - x_0\]
\[\because \Delta y = f(x_1) - f(x_0)\]
\[m\overline{P_0 P_1} = \sqrt{(x_1 - x_0)^2 + (f(x_1) - f(x_0))^2}\]

Let's generalize this equation.

\[L_i = m \overline{P_{i - 1} P_i}\]
\[L_i = \sqrt{(x_{i} - x_{i - 1})^2 + (f(x_i) - f(x_{i - 1}))^2}\]

According to mean value theorem4

\[\frac{f(x_i)-f(x_{i-1})}{x_i-x_{i-1}}=f'(x_i^*)\]
\[\Rightarrow f(x_i)-f(x_{i-1})=f'(x_i^*)(x_i-x_{i-1})=f'(x_i^*)\Delta x_i\]

Plugging these into our equation, we get

\[L_i=\sqrt{(\Delta x_i)^2+(f'(x_i^*))^2(\Delta x_i)^2}\]
\[L_i=\sqrt{(\Delta x_i)^2(1 + (f'(x_i^*))^2)}\]
\[L_i=\sqrt{1+(f'(x_i^*))^2}\Delta x_i\]

Therefore, for the whole polygonal path, we have

\[\sum_{i=1}^{n}L_{i}=\sum_{i=1}^{n}\sqrt{1+(f^{\prime}(x_{i}^{*}))^{2}}\Delta x_{i}\]

And we know that our approximation gets better as the distance between the intervals2 decreases, therefore,

\[L=\lim_{\max(\Delta x_i\to 0)}\sum_{i=1}^{n}\sqrt{1+(f^{\prime}(x_{i}^{*}))^{2}}\Delta x_{i}\]

Of course, we can re-write it in integral5 form.

\[L=\int_{a}^{b}\sqrt{1+(f^{\prime}(x))^{2}}dx\]
