Introduction

This lecture is about the intel 8088 architecture.

Intel Iapx88

The word IAPX88 stands for Intel Advanced Processor Extensions 88 which is a 16-bit processor. The 386 on the other hand is 32-bit processor.

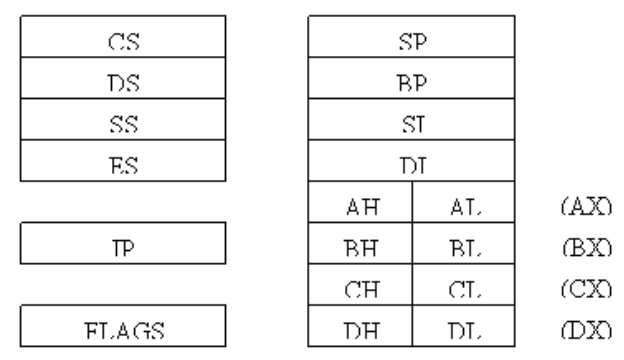

Register Architecture

There are 14 register it uses.

General Register (AX, BX, CX, DX)

These register have X in the end which stands for extended.
Meaning, these register are composite of their lower and upper parts.
Example: AX (16-bit) consists of AL(8-bit) which is its lower part and AH(8-bit) which is its upper part.
Now looking at the first characters of it. 1. A: accumulator, because it does mathematical and logical operations. 2. B: base, used for memory addressing 3. C: counter, certain operations work with counting. 4. D: destination, act as destination in I/O operations.

Index Registers (SI and DI)

SI stands for source-index and DI stands for destination-index.
They are used in a special class of instructions called string instructions.
These are 16-bit and are not composite of other parts.

Instruction Pointer

The Program Control instructions change this register and it is very dangerous to play around with it.

Stack Pointer

This is a memory related pointer.

Base Pointer

This pointer is used to store memory location in a stack.

Flags Register

The bits of this register are expressed as follows:

C	Carry	When two 16bit numbers are added the answer can be 17 bits long or when two 8bit numbers are added the answer can be 9 bits long. This extra bit that won’t fit in the target register is placed in the carry flag where it can be used and tested.
P	Parity	Parity is the number of “one” bits in a binary number. Parity is either odd or even. This information is normally used in communications to verify the integrity of data sent from the sender to the receiver.
A	Auxiliary Carry	A number in base 16 is called a hex number and can be represented by 4 bits. The collection of 4 bits is called a nibble. During addition or subtraction if a carry goes from one nibble to the next this flag is set. Carry flag is for the carry from the whole addition while auxiliary carry is the carry from the first nibble to the second.
Z	Zero Flag	The Zero flag is set if the last mathematical or logical instruction has produced a zero in its destination.
S	Sign Flag	A signed number is represented in its two’s complement form in the computer. The most significant bit (MSB) of a negative number in this representation is 1 and for a positive number it is zero. The sign bit of the last mathematical or logical operation’s destination is copied into the sign flag.
T	Trap Flag	The trap flag has a special role in debugging which will be discussed later.
I	Interrupt Flag	It tells whether the processor can be interrupted from outside or not. Sometimes the programmer doesn’t want a particular task to be interrupted so the Interrupt flag can be zeroed for this time. The programmer rather than the processor sets this flag since the programmer knows when interruption is okay and when it is not. Interruption can be disabled or enabled by making this bit zero or one, respectively, using special instructions.
D	Direction Flag	Specifically related to string instructions, this flag tells whether the current operation has to be done from bottom to top of the block (D=0) or from top to bottom of the block (D=1).
O	Overflow Flag	The overflow flag is set during signed arithmetic, e.g. addition or subtraction, when the sign of the destination changes unexpectedly. The actual process sets the overflow flag whenever the carry into the MSB is different from the carry out of the MSB

Segment Registers(CS, DS, SS, ES)

Code, Data, Stack and Extra segment register are related to Intel Segmented memory model.

Our First Program

We will write our 1st program which adds 3 numbers.

English Language Version

move 5 to ax
move 10 to bx
add bx to ax
move 15 to bx
add bx to ax

Assembly Language Version

operation destination, source
operation destination
operation source
operation

These are the four variants.

[org 0x0100]
    mov ax, 5    ;load 5 into ax register
    mov bx, 10   ;load 10 into bx register
    add ax, bx   ;add ax and bx and store it in ax
    mov bx, 15   ;load 15 into bx register
    add ax, bx   ;add ax and bx and store it in ax
    mov ax, 0x4c00    ;terminate the program
    int 0x21

Assembler, Linker, Debugger

nasm ex01.asm –o ex01.com –l ex01.lst

This takes ex01.asm file, assembles into ex01.com executable and makes a ex01.lst listing file which contains the code without comments.

00000000:B80500          mov ax, 5
00000003:BB0A00          mov bx, 10
00000006:01D8            add ax, bx
00000008:BB0F00          mov bx, 15
0000000B:01D8            add ax, bx
0000000D:B8004C          mov ax, 0x4C00
00000010:CD21            int 0x21

The first column is the offset of listed instructions in the output file.
Next column is the opcode, B8 is the instruction adding something to AX but it is immediately followed by 0500 which makes it called immediate operand.

A hex digit requires 4 bits to be represented.
2 hex digits will require 8 or in simple terms, a byte.
4 hex digits will require 2 bytes or a word.

There are 2 types of ordering the hex digits in the memory.
Big-endian: Most significant figure, followed by lesser significant figure, followed by less significant figure, followed by least significant figure. This is used by Motorola.
Little-endian: Least significant, followed by less significant, followed by lesser significant, followed by most significant letter. This is used by Intel.

The 0500 suggests there are 2 bytes, those are: 05 and 00.
Since it is little-endian so the number 0005 is shown as 0500.
Since the instruction itself was 3 bytes long, the offset is shown to be 3 as well.
