Rationale

The 8080 and 8085 both are linear models (meaning, an array) but due to 16-bit address bus, it can only target 2^16 = 64k memory locations.
Then segmented-memory-model (used by 8085) was introduced to extend this limit.

There are 3 sections of program. 1. Code 2. Data 3. Program’s Stack
These 3 sections are not distinguishable in the linear model but they are in segmented-memory-model.

Mechanism

There are multiple windows, each for a specific section.
The memory size of 8088 is 1MB which can be addressed by 20-bit address bus.
These memory windows are assigned to each segment.
extra segment can be used when we need to access 2 different areas of memory but cannot be accessed from same window (meaning, both areas are from separate windows).
It can be used as an extra data segment.

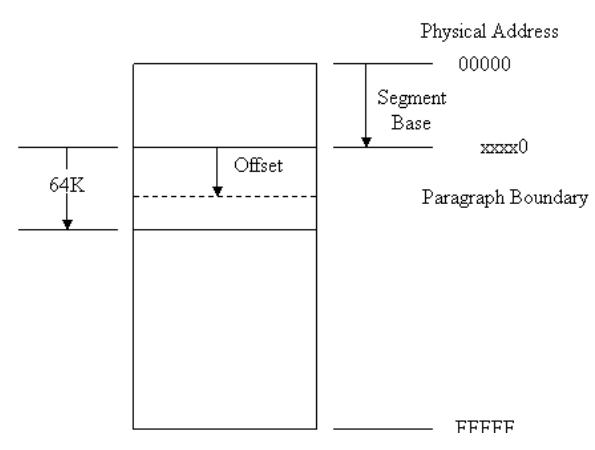

Segment register tells where to open the window of size 64KB.
The Base and offset are used as variables.
The segment tells the base meanwhile offset is added to it.

The instruction-pointer cannot work alone.
Firstly, a window of 64KB is opened by code segment register which stores the base.
The instruction-pointer uses this base as a reference of starting and then moves using the offsets.
Since it is 16-bit in itself as well, it cannot move outside that 64Kb window.
When the CS register changes the base, the window is moved and instruction-pointer also behaves relatively.
Pasted image 20240521165648.png

Physical Address Calculator

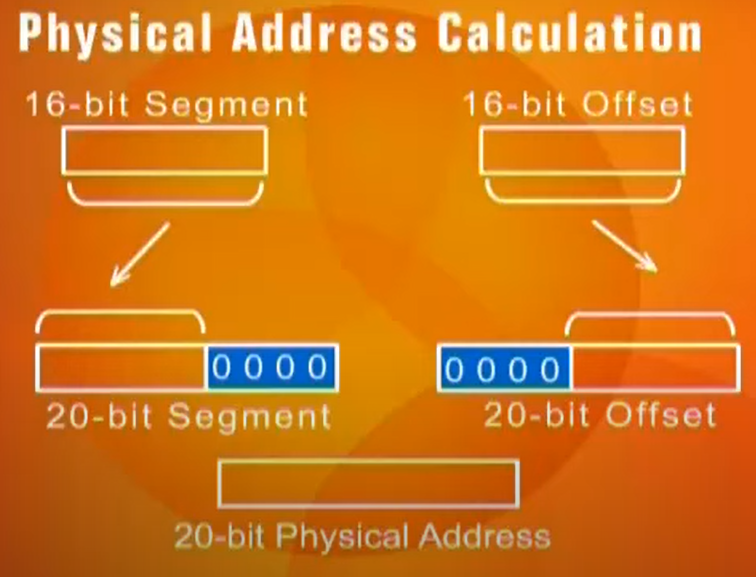

The code segment register and offset both are 16-bit in size.
However, we need 20-bit address to address 1MB memory.
There should be a way for both of these 16-bit registers to make up a 20-bit address.

Pasted image 20240521170745.png

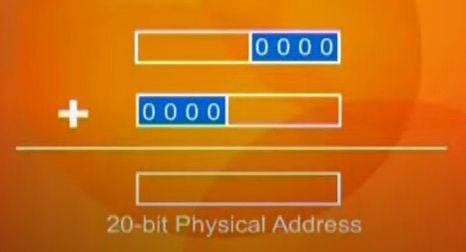

The code segment gets 4 zeros appended to the right.
The offset gets 4 zeros appended to the left.
Then these are added together.
Pasted image 20240521171002.png
There maybe a carry bit which gets generated but it is not stored.
This whole phenomena is called address wraparound.

Paragraph Boundaries

The segment value itself is a 16-bit number in a 20-bit physical address.
This 16-bit boundary is called paragraph boundaries.

Overlapping Segments

Segments can also overlap.
Means if the CS, DS, SS and ES all have the same values, they (segments or windows) all are overlapping.

The partially overlapping segments can also point to the same exact physical memory location.

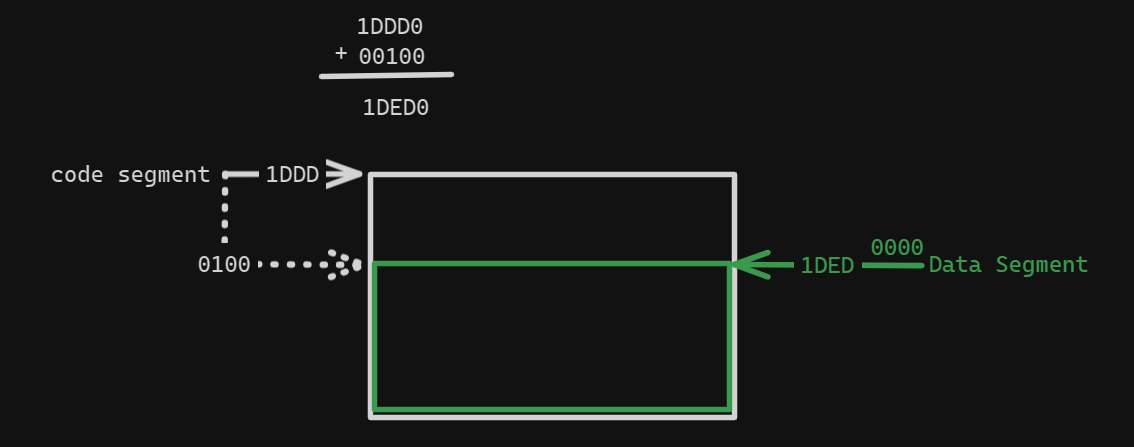

Consider this example:
Pasted image 20240521180939.png
The segment pointed by CS register is 1DDD:0100.
Where 1DDD is the base of the code segment and 0100 is the offset.
Then we append 4 bits (1 hex digit) for addition (to figure out the physical address).
The result of that addition is 1DED0.

Now, we can also open a segment pointed by DS register at 1DED with offset 0000 which when added, results into 1DED0.

Hence this proves that even the partially overlapping segments can point to same memory address.

This pair of segment:offset is called logical-address.

Exercises

  1. How the processor uses the address bus, the data bus, and the control bus to communicate with the system memory?
  2. Which of the following are unidirectional and which are bidirectional?
    1. Address Bus
    2. Control Bus
    3. Data Bus
  3. What are registers and what are the specific features of the accumulator, index registers, program counter, and program status word?
  4. What is the size of the accumulator of a 64bit processor?
  5. What is the difference between an instruction mnemonic and its opcode?
  6. How are instructions classified into groups?
  7. A combination of 8bits is called a byte. What is the name for 4bits and for 16bits?
  8. What is the maximum memory 8088 can access?
  9. List down the 14 registers of the 8088 architecture and briefly describe their uses.
  10. What flags are defined in the 8088 FLAGS register? Describe the function of the zero flag, the carry flag, the sign flag, and the overflow flag.
  11. Give the value of the zero flag, the carry flag, the sign flag, and the overflow flag after each of the following instructions if AX is initialized with 0x1254 and BX is initialized with 0x0FFF.
    1. add ax, 0xEDAB
    2. add ax, bx
    3. add ax, bxp
  12. What is the difference between little endian and big endian formats? Which format is used by the Intel 8088 microprocessor?
  13. For each of the following words identify the byte that is stored at lower memory address and the byte that is stored at higher memory address in a little endian computer.
    1. 1234
    2. ABFC
    3. B100
    4. B800
  14. What are the contents of memory locations 200, 201, 202, and 203 if the word 1234 is stored at offset 200 and the word 5678 is stored at offset 202?
  15. What is the offset at which the first executable instruction of a COM file must be placed?
  16. Why was segmentation originally introduced in 8088 architecture?
  17. Why a segment start cannot start from the physical address 55555.
  18. Calculate the physical memory address generated by the following segment offset pairs.
    1. 1DDD:0436
    2. 1234:7920
    3. 74F0:2123
    4. 0000:6727
    5. FFFF:4336
    6. 1080:0100
    7. AB01:FFFF
  19. What are the first and the last physical memory addresses accessible using the following segment values?
    1. 1000
    2. 0FFF
    3. 1002
    4. 0001
    5. E000
  20. Write instructions that perform the following operations.
    1. Copy BL into CL
    2. Copy DX into AX
    3. Store 0x12 into AL
    4. Store 0x1234 into AX
    5. Store 0xFFFF into AX
  21. Write a program in assembly language that calculates the square of six by adding six to the accumulator six times.
