Unconditional Jump

; a program to add ten numbers without a separate counter
[org 0x0100]
    jmp start ; unconditionally jump over data

num1: dw 10, 20, 30, 40, 50, 10, 20, 30, 40, 50
total: dw 0

start: mov bx, 0 ; initialize array index to zero
       mov ax, 0 ; initialize sum to zero

l1: add ax, [num1+bx] ; add number to ax
    add bx, 2 ; advance bx to next index
    cmp bx, 20 ; are we beyond the last index
    jne l1 ; if not add next number
    mov [total], ax ; write back sum in memory

    mov ax, 0x4c00 ; terminate program
    int 0x21

We can move our data declaration at the top but then the interpreter will start to interpret the data as the opcode.
Therefore, we use an unconditional jump instruction called JMP.

Relative Addressing

The listing file generated is as follows:

     1        ; a program to add ten numbers without a separate counter
     2        [org 0x0100]
     3 00000000 E91600    jmp start ; unconditionally jump over data
     4
     5 00000003 0A0014001E00280032- num1: dw 10, 20, 30, 40, 50, 10, 20, 30, 40, 50
     6 0000000C 000A0014001E002800-
     7 00000015 3200
     8 00000017 0000       total: dw 0
     9
    10 00000019 BB0000     start: mov bx, 0 ; initialize array index to zero
    11 0000001C B80000        mov ax, 0 ; initialize sum to zero
    12
    13 0000001F 0387[0300] l1: add ax, [num1+bx] ; add number to ax
    14 00000023 81C30200      add bx, 2 ; advance bx to next index
    15 00000027 81FB1400      cmp bx, 20 ; are we beyond the last index
    16 0000002B 75F2          jne l1 ; if not add next number
    17 0000002D A3[1700]      mov [total], ax ; write back sum in memory
    18
    19 00000030 B8004C        mov ax, 0x4c00 ; terminate program
    20 00000033 CD21          int 0x21

Pay attention to line 3, the E9 is the operand for the jump but it takes 1600 which translates to 0016 (because of little endian format).
This is a relative address because due to first instruction, the instruction-pointer was moved to location 0100.
Then, It was pointing to 0103 (because of the 3 bytes offset, E9, 16, 00)
So, 0103 + 0016 = 0119.

0119 is composite of 0019 and 0100

The 0019 is the offset value of our first instruction of the program meanwhile the 0100 is the offset created by the first statement [org 0x0100]

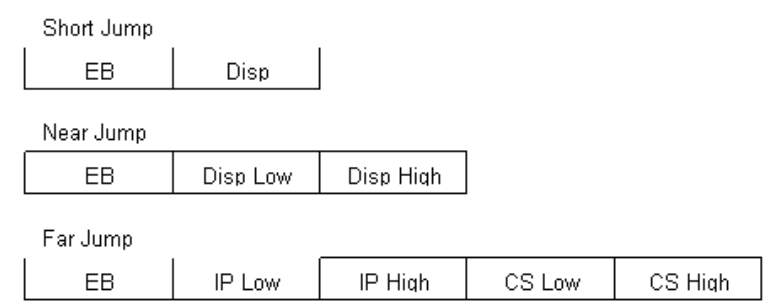

Types of Jumps

There are 3 types of jumps.

Short

If the relative address stored with the instruction is within 8-bits (or 1 byte) then it is called short jump.

Near

If the relative address stored with the instruction is within 16-bits (or 2 bytes) then it is called near jump.

Far

This jump does not work with relative addressing but works with absolute addressing instead.
This jump can be used to jump from one code segment to another.
We need to provide it both offset and segment values (both 2 bytes long).
It uses CS register for the segment part and instruction-pointer for the offset part.

The following jump instructions have a far variant: 1. JMP 2. CALL 3. RET

Conditional Jumps can only be of short jump type

Sorting Example

We will discuss about bubble sort ¹ algorithm.

[org 0x0100]
    jmp start

data: dw 60,55,45,50,40,35,25,30,10,0

swap: db 0

start: mov bx,0              ; initialize array index to zero
        mov byte [swap],0     ; reset swap flag to no swaps

loop1: mov ax,[data+bx]      ; load number in ax
        cmp ax,[data+bx+2]    ; compare with next number
        jbe noswap            ; no swap if already in order
        mov dx,[data+bx+2]    ; load second element in dx
        mov [data+bx+2],ax    ; store first number in second
        mov [data+bx],dx      ; store second number in first
        mov byte [swap],1     ; flag that a swap has been done

noswap: add bx,2              ; advance bx to next index
        cmp bx,18             ; are we at last index
        jne loop1             ; if not compare next two
        cmp byte [swap],1     ; check if a swap has been done
        je start              ; if yes make another pass

    mov ax,0x4c00         ; terminate program
    int 0x21

---

1. Read about Bubble Sort. ↩
