Multiplication Algorithm

Imagine if 13 is multiplicant and 5 is multiplier then we take each bit from mutliplier, perform an AND operation, shift the answer a little bit and repeat.

Shifting and Rotations

There are different types of shifting algorithms

Shift Logical Right (SHR)

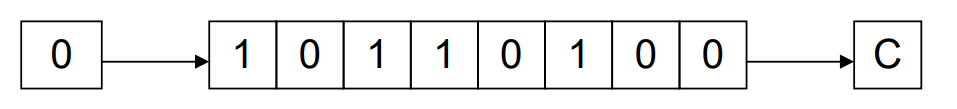

The 0 is pushed from left and all the bits are moved to right meanwhile the right most bit is dropped into carry flag.

Shift Logical Left (SHL) / Shift Arithmetic Left (SAL)

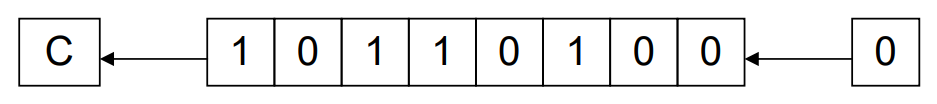

Same logic as previous one, but the direction is reversed.

Shift Arithmetic Right (SAR)

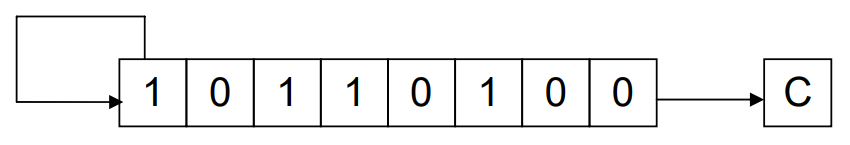

This one copies the left most bit and pushes it.
The right most is dropped inside carry flag.

The shift left operations are basically multiplication with 2 and shift right operations are basically division by 2.

Rotate Right (ROR)

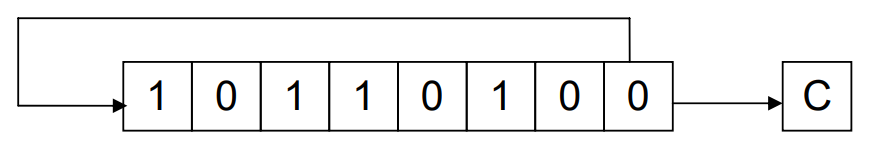

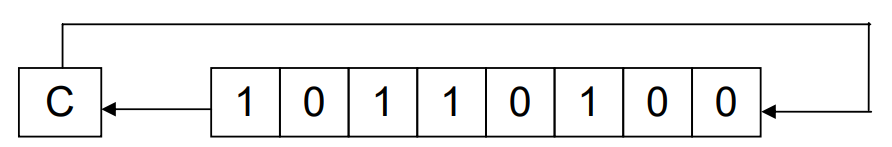

The right most bit is copied to carry flag and then is pushed to the left end.

Rotate Left (ROL)

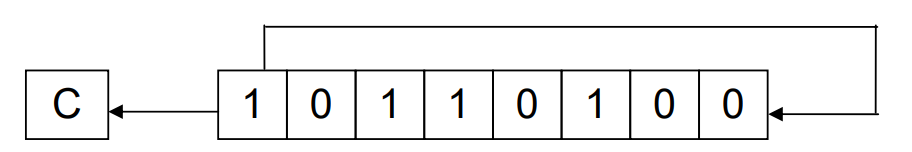

Same logic as previous one but reversed.

Rotate through Carry Right (RCR)

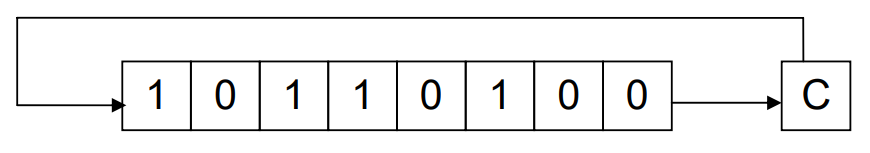

The value inside carry flag is copied to the left end and then the right most bit is copied into the carry flag.

Rotate through Carry Left (RCL)

Same logic but direction is reversed.

Multiplication in Assembly Language

The algorithm for previously discussed problem is: 1. Shift the multiplier to the right 2. If CF = 1 add the multiplicant to the result 3. Shift the multiplicant to the left 4. Repeat the algorithm 4 times.

[org 0x100]
jmp start

multiplicant: db 13
multiplier: db 5
result: db 0

start:  mov cl, 4
        mov bl, [mutliplicant]
        mov dl, [multiplier]

checkbit:   shr dl, 1
            jnc skip
            add [result], bl

skip:   shl bl, 1
        dec cl
        jnz checkbit

        mov ax, 0x4c00
        int 0x21

Extended Operations

Imagine we want to multiply 2 16-bit numbers.
Imagine one of the numbers is 1001110001000000 and other is decimal 2.
The left most bit is dropped into carry bit and hence we get data lose.

Extended Shifting

We have to deal with the 32-bit numbers word by word.
We cannot shift the whole number because the operations are limited to the word size.

num1:   dd 40000
        shl word [num1], 1
        rcl word [num1+2], 1

the dd directive reserves double word or 2 words.

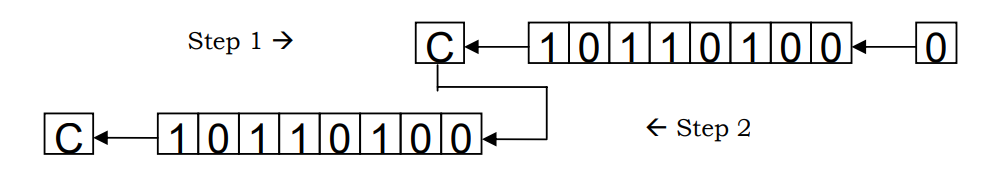

Step 1 is using shl and Step 2 is using rcl .

Extended addition and Subtraction

There is a new operator called Add With Carry with mnemonic ADC.
The normal add takes 2 operands but adc takes 3 operands, the 3rd one being the carry bit.
Consider an example statement:

add ax, bx

This instruction adds bx to ax.

adc ax, bx

This instruction adds carry bit to ax and then adds bx to ax.

dest: dd 40000
src:  dd 80000

mov ax, [src]
add word [dest], ax
mov ax, [src+2]
adc word [dest+2], ax

There is an alternate for subtraction as well.
It is called subtract with borrow with mnemonic SBB.

Extended Multiplication

[org 0x0100]
jmp start

multiplicant: dd 1300                     ;16 bit multiplicant in 32 bits
multiplier:   dw 500                      ;16 bit multiplier
result:       dd 0                        ;32 bit result

start:  mov cl, 16
        mov dx, [multiplier]

checkbit:   shr dx, 1                     ;move right most bit in carry
            jnc skip                      ;if it is zero then skip
            mov ax, [multiplicant]
            add [result], ax
            mov ax, [multiplicant + 2]
            adc [result + 2], ax

skip:   shl word [multiplicant], 1
        rcl word [multiplicant + 2], 1
        dec cl
        jnz checkbit

        mov ax, 0x4c00
        int 0x21

Bitwise Logical Operations

These operators are bitwise.
These operators store the result in the first operand or destination.

AND Operation

X	Y	X AND Y
0	0	0
1	0	0
0	1	0
1	1	1

and ax, bx

OR Operation

X	Y	X OR Y
0	0	0
1	0	1
0	1	1
1	1	1

or ax, bx

XOR Operation

X	Y	X XOR Y
0	0	0
0	1	1
1	0	1
1	1	0

xor ax, bx

NOT Operation

not ax

This operator takes one operand and flips all the bits.

Masking Operations

Selective Bit Clearing

We can use AND for this:

src  = 1011
mask = 0011
des  = mask and src
     = 0011

In the mask the bits which need to be cleared, are set to 0.

Selective Bit Setting

We can use OR for this:

src  = 0101
mask = 0010
des  = mask OR src
     = 0111

In the mask, the bits which need to be set to 1, are set to 1.

Selective Bit Inversion

We can use XOR for this:

src  = 0101
mask = 0010
des  = mask XOR src
     = 0111

In the mask, the bits which need to be flipped are set to 1.

Exercises

1. Write a program to swap every pair of bits in the AX register.
2. Give the value of the AX register and the carry flag after each of the following instructions

stc
mov ax, <roll num>
adc ah, <first character of your name>
cmc
xor ah, al
mov cl, 4
shr al, cl
rcr ah, cl

1. Write a program to swap the nibbles in each byte of the AX register.
2. Calculate the number of one bits in BX and complement an equal number of least significant bits in AX.
3. Write a program to multiply two 32bit numbers and store the answer in a 64bit location.
4. Declare a 32byte buffer containing random data. Consider for this problem that the bits in these 32 bytes are numbered from 0 to 255. Declare another byte that contains the starting bit number. Write a program to copy the byte starting at this starting bit number in the AX register. Be careful that the starting bit number may not be a multiple of 8 and therefore the bits of the desired byte will be split into two bytes.
5. AX contains a number between 0-15. Write code to complement the corresponding bit in BX. For example if AX contains 6; complement the 6th bit of BX.
6. AX contains a non-zero number. Count the number of ones in it and store the result back in AX. Repeat the process on the result (AX) until AX contains one. Calculate in BX the number of iterations it took to make AX one. For example BX should contain 2 in the following case:
   1. AX = 1100 0101 1010 0011 (input – 8 ones)
   2. AX = 0000 0000 0000 1000 (after first iteration – 1 one)
   3. AX = 0000 0000 0000 0001 (after second iteration – 1 one) STOP
