Program Flow
CALL and RET
The call takes a label as operand just like jmp does.
the ret takes no operands and returns the execution back to the statement followed by the call statement.
Our First Subroutine
[org 0x0100]
jmp start
data:
dw 60, 55, 45, 50, 40, 35, 25, 30, 10, 0
swap:
db 0
bubblesort:
dec cx ; last element not compared
shl cx, 1 ; turn into byte count
mainloop:
mov si, 0 ; initialize array index to zero
mov byte [swap], 0 ; reset swap flag to no swaps
innerloop:
mov ax, [bx+si] ; load number in ax
cmp ax, [bx+si+2] ; compare with next number
jbe noswap ; no swap if already in order
mov dx, [bx+si+2] ; load second element in dx
mov [bx+si], dx ; store first number in second
mov [bx+si+2], ax ; store second number in first
mov byte [swap], 1 ; flag that a swap has been done
noswap:
add si, 2 ; advance si to next index
cmp si, cx ; are we at last index
jne innerloop ; if not compare next two
cmp byte [swap], 1 ; check if a swap has been done
je mainloop ; if yes make another pass
ret ; go back to where we came from
start:
mov bx, data ; send start of array in bx
mov cx, 10 ; send count of elements in cx
call bubblesort ; call our subroutine
mov ax, 0x4c00 ; terminate program
int 0x21 ; interrupt to DOS
When the call instruction is encountered, the 0150 is stored inside stack-pointer.
This 0150 is composite of 0100 from the beginning of file and 0050 offset which is the address of statement next to call statement.
Stack
The 8088 architecture uses a decrementing stack which means that as the elements are pushed on the stack, the stack decrements by 2 (a word), decreasing the address.
For an incrementing stack, the case is opposite.
We cannot push or pop 1 byte.
There is another type of RET that is ret n where n represents the number that needs to be added to the stack-pointer along with the default 2.
[org 0x0100]
jmp start
data:
dw 60, 55, 45, 50, 40, 35, 25, 30, 10, 0
data2:
dw 328, 329, 898, 8923, 8293, 2345, 10, 877, 355, 98
dw 888, 533, 2000, 1020, 30, 200, 761, 167, 90, 5
swapflag:
db 0
swap:
mov ax, [bx+si] ; load first number in ax
xchg ax, [bx+si+2] ; exchange with second number
mov [bx+si], ax ; store second number in first
ret ; go back to where we came from
bubblesort:
dec cx ; last element not compared
shl cx, 1 ; turn into byte count
mainloop:
mov si, 0 ; initialize array index to zero
mov byte [swapflag], 0 ; reset swap flag to no swaps
innerloop:
mov ax, [bx+si] ; load number in ax
cmp ax, [bx+si+2] ; compare with next number
jbe noswap ; no swap if already in order
call swap ; swaps two elements
mov byte [swapflag], 1 ; flag that a swap has been done
noswap:
add si, 2 ; advance si to next index
cmp si, cx ; are we at last index
jne innerloop ; if not compare next two
cmp byte [swapflag], 1 ; check if a swap has been done
je mainloop ; if yes make another pass
ret ; go back to where we came from
start:
mov bx, data ; send start of array in bx
mov cx, 10 ; send count of elements in cx
call bubblesort ; call our subroutine
mov bx, data2 ; send start of array in bx
mov cx, 20 ; send count of elements in cx
call bubblesort ; call our subroutine again
mov ax, 0x4c00 ; terminate program
int 0x21 ; interrupt to DOS

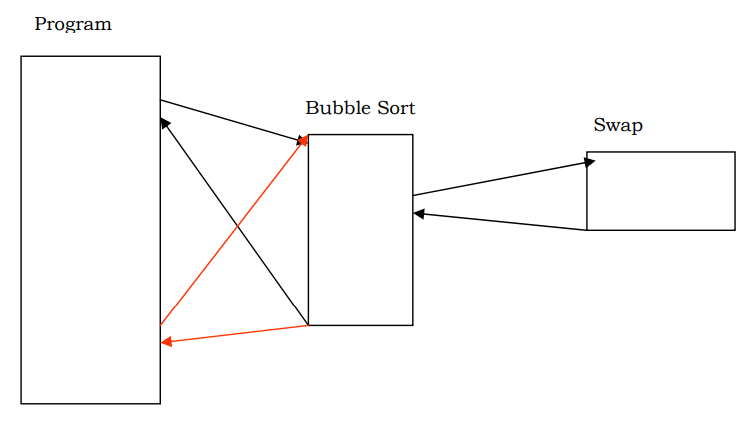

The xchg swaps its operands.
Saving and Restoring Registers
[org 0x0100]
jmp start
data:
dw 60, 55, 45, 50, 40, 35, 25, 30, 10, 0
data2:
dw 328, 329, 898, 8923, 8293, 2345, 10, 877, 355, 98
dw 888, 533, 2000, 1020, 30, 200, 761, 167, 90, 5
swapflag:
db 0
swap:
push ax ; save old value of ax
mov ax, [bx+si] ; load first number in ax
xchg ax, [bx+si+2] ; exchange with second number
mov [bx+si], ax ; store second number in first
pop ax ; restore old value of ax
ret ; go back to where we came from
bubblesort:
push ax ; save old value of ax
push cx ; save old value of cx
push si ; save old value of si
dec cx ; last element not compared
shl cx, 1 ; turn into byte count
mainloop:
mov si, 0 ; initialize array index to zero
mov byte [swapflag], 0 ; reset swap flag to no swaps
innerloop:
mov ax, [bx+si] ; load number in ax
cmp ax, [bx+si+2] ; compare with next number
jbe noswap ; no swap if already in order
call swap ; swaps two elements
mov byte [swapflag], 1 ; flag that a swap has been done
noswap:
add si, 2 ; advance si to next index
cmp si, cx ; are we at last index
jne innerloop ; if not compare next two
cmp byte [swapflag], 1 ; check if a swap has been done
je mainloop ; if yes make another pass
pop si ; restore old value of si
pop cx ; restore old value of cx
pop ax ; restore old value of ax
ret ; go back to where we came from
start:
mov bx, data ; send start of array in bx
mov cx, 10 ; send count of elements in cx
call bubblesort ; call our subroutine
mov bx, data2 ; send start of array in bx
mov cx, 20 ; send count of elements in cx
call bubblesort ; call our subroutine again
mov ax, 0x4c00 ; terminate program
int 0x21 ; interrupt to DOS
PUSH
It takes the operands value (could be #register or memory) and places it on the top of the stack, decrementing stack-pointer by 2.
POP
This does the opposite of push
CALL
It pushes the instruction-pointer onto the stack, storing its value inside stack-pointer.
RET
It does the opposite, pops stack-pointer value into instruction-pointer
Parameters Passing through Stack
The maximum parameters a sub routine can accept is 7.
To pass the parameters:
1. push the arguments onto the stack
2. the call pushes the instruction-pointer onto the stack.
3. Then we push base-pointer onto the stack
4. Then we move the return address, pointed by the stack-pointer, into the base-pointer
5. Then we use [bp + 2] to get a word (2nd argument) which was pushed on the stack and [bp + 4 for (1st argument).
Stack Clearing by Caller or Callee
Usually, it is done by callee by using ret n since it adds n values beyond 2 to the stack-pointer and the values are not popped but rather discarded.
Local Variables
We can make local variables by using the stack.
push bp
mov bp, sp
sub sp, 2
We create the space using the sub operation and then peek through the stack using base-pointer.
