Hardware Interrupts
Programmable interrupt controller (PIC) is a device which interfaces between the INT pin of CPU and the interrupt signals generated by the devices.
It has 8 input and 1 output signals.
These 8 inputs are called Interrupt Requests (IRQ)
IRQ 0is for Timer devicesIRQ 1is for KeyboardsIRQ 2is for cascading interruptsIRQ 3is connected to serial portCOM 2IRQ 4is connected to serial portCOM 1IRQ 5is used for sound cards, network cards or modemsIRQ 6is used for floppy disksIRQ 7is used for parallel ports
The IRQ 0 is mapped to INT 8 and linearly IRQ 7 is mapped to INT F
The I/O ports of the interrupt handler send a signal called End of Interrupt (EOI) to the PIC.
I/O Ports
CPU can either do read or write.
There is a special pin on the intel's control bus which determines if the instruction is from memory space or peripherical space.
IN and OUT Instructions
Both of these have a byte form and a word form.
The source register for OUT and destination register for IN is AL or AX depending on which form was used.
The port number 20 is for PIC 60 to 64 for keyboards
The port number 21 is for PIC 378 for parallel ports.
in al, 0x21
mov dx, 0x378
in al, dx
out 0x21, al
mov dx, 0x378
out dx, al
PIC Ports
The port 20 is for control port
The port 21 is for enabling or disabling interrupts.
Each bit on port 21 corresponds to IRQ lines.
; Disable keyboard interrupt in PIC mask register
[org 0x0100]
in al, 0x21 ; Read interrupt mask register
or al, 2 ; Set bit for IRQ2
out 0x21, al ; Write back mask register
mov ax, 0x4c00 ; Terminate program
int 0x21
Keyboard Controller
Each key on the keyboard corresponds to a scan code which tells the CPU which key has been pressed.
The scan code is 1 byte long with first bit indicating the status of the key and remaining bits indicating the key itself.
If it is set to 0 then it means the key is pressed.
If it is set to 1 then it means the key is released.
; Differentiate left and right shift keys with scancodes
[org 0x0100]
jmp start
; Keyboard interrupt service routine
kbisr:
push ax
push es
mov ax, 0xb800
mov es, ax ; Point es to video memory
in al, 0x60 ; Read a char from keyboard port
cmp al, 0x2a ; Is the key left shift?
jne nextcmp ; No, try next comparison
mov byte [es:0], 'L' ; Yes, print L at top left
jmp nomatch ; Leave interrupt routine
nextcmp:
cmp al, 0x36 ; Is the key right shift?
jne nomatch ; No, leave interrupt routine
mov byte [es:0], 'R' ; Yes, print R at top left
nomatch:
mov al, 0x20
out 0x20, al ; Send EOI to PIC
pop es
pop ax
iret
start:
xor ax, ax
mov es, ax ; Point es to IVT base
cli ; Disable interrupts
mov word [es:9*4], kbisr ; Store offset at n*4
mov [es:9*4+2], cs ; Store segment at n*4+2
sti ; Enable interrupts
Interrupt Chaining
; Another attempt to terminate program with Esc that hooks
; keyboard interrupt
[org 0x100]
jmp start
oldisr: dd 0 ; Space for saving old ISR
; Keyboard interrupt service routine
kbisr:
push ax
push es
mov ax, 0xb800
mov es, ax ; Point es to video memory
in al, 0x60 ; Read a char from keyboard port
cmp al, 0x2a ; Is the key left shift?
jne nextcmp ; No, try next comparison
mov byte [es:0], 'L' ; Yes, print L at top left
jmp nomatch ; Leave interrupt routine
nextcmp:
cmp al, 0x36 ; Is the key right shift?
jne nomatch ; No, leave interrupt routine
mov byte [es:0], 'R' ; Yes, print R at top left
nomatch:
; mov al, 0x20
; out 0x20, al
pop es
pop ax
jmp far [cs:oldisr] ; Call the original ISR
; iret
start:
xor ax, ax
mov es, ax ; Point es to IVT base
mov ax, [es:9*4]
mov [oldisr], ax ; Save offset of old routine
mov ax, [es:9*4+2]
mov [oldisr+2], ax ; Save segment of old routine
cli ; Disable interrupts
mov word [es:9*4], kbisr ; Store offset at n*4
mov [es:9*4+2], cs ; Store segment at n*4+2
sti ; Enable interrupts
l1:
mov ah, 0 ; Service 0 – get keystroke
int 0x16 ; Call BIOS keyboard service
cmp al, 27 ; Is the Esc key pressed?
jne l1 ; If no, check for next key
mov ax, 0x4c00 ; Terminate program
int 0x21
Unhooking Interrupt
; Terminate program with Esc that hooks keyboard interrupt
[org 0x100]
jmp start
oldisr: dd 0 ; Space for saving old ISR
;;;;; COPY LINES 005-029 FROM EXAMPLE 9.4 (kbisr) ;;;;;
start:
xor ax, ax
mov es, ax ; Point es to IVT base
mov ax, [es:9*4]
mov [oldisr], ax ; Save offset of old routine
mov ax, [es:9*4+2]
mov [oldisr+2], ax ; Save segment of old routine
cli ; Disable interrupts
mov word [es:9*4], kbisr ; Store offset at n*4
mov [es:9*4+2], cs ; Store segment at n*4+2
sti ; Enable interrupts
l1:
mov ah, 0 ; Service 0 – get keystroke
int 0x16 ; Call BIOS keyboard service
cmp al, 27 ; Is the Esc key pressed?
jne l1 ; If no, check for next key
mov ax, [oldisr] ; Read old offset in ax
mov bx, [oldisr+2] ; Read old segment in bx
cli ; Disable interrupts
mov [es:9*4], ax ; Restore old offset from ax
mov [es:9*4+2], bx ; Restore old segment from bx
sti ; Enable interrupts
mov ax, 0x4c00 ; Terminate program
int 0x21

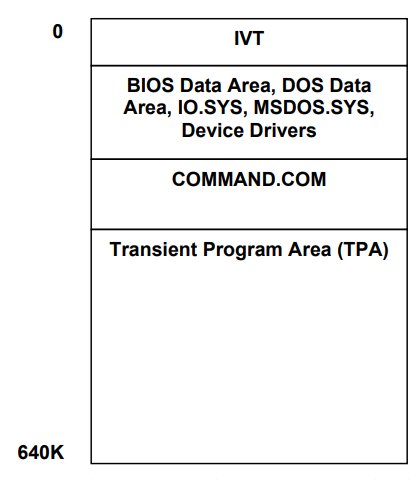

Terminate and Stay Resident
The number of paragraphs is given in DX register and since of each is 16-bits
mem /c
Programmable Interval Timer
The frequency of this chip is 1.19318 MHz
Inside the chip, there is a 16-bit divisor which divides this frequency and connects the result to IQR 0.
The default is:
This is called Timer Tick.
; Display a tick count on the top right of screen
[org 0x0100]
jmp start
tickcount: dw 0
; Subroutine to print a number at top left of screen
; Takes the number to be printed as its parameter
printnum:
push bp
mov bp, sp
push es
push ax
push bx
push cx
push dx
push di
mov ax, 0xb800
mov es, ax ; Point es to video base
mov ax, [bp+4] ; Load number in ax
mov bx, 10 ; Use base 10 for division
mov cx, 0 ; Initialize count of digits
nextdigit:
mov dx, 0 ; Zero upper half of dividend
div bx ; Divide by 10
add dl, 0x30 ; Convert digit into ASCII value
push dx ; Save ASCII value on stack
inc cx ; Increment count of values
cmp ax, 0 ; Is the quotient zero?
jnz nextdigit ; If no, divide it again
mov di, 140 ; Point di to 70th column
nextpos:
pop dx ; Remove a digit from the stack
mov dh, 0x07 ; Use normal attribute
mov [es:di], dx ; Print char on screen
add di, 2 ; Move to next screen location
loop nextpos ; Repeat for all digits on stack
pop di
pop dx
pop cx
pop bx
pop ax
pop es
pop bp
ret 2
; Timer interrupt service routine
timer:
push ax
inc word [cs:tickcount] ; Increment tick count
push word [cs:tickcount]
call printnum ; Print tick count
mov al, 0x20
out 0x20, al ; End of interrupt
pop ax
iret ; Return from interrupt
start:
xor ax, ax
mov es, ax ; Point es to IVT base
cli ; Disable interrupts
mov word [es:8*4], timer ; Store offset at n*4
mov [es:8*4+2], cs ; Store segment at n*4+2
sti ; Enable interrupts
mov dx, start ; End of resident portion
add dx, 15 ; Round up to next para
mov cl, 4
shr dx, cl ; Number of paras
mov ax, 0x3100 ; Terminate and stay resident
int 0x21
Parallel Port
The parallel port connector is a 25 pin connector called DB-25
- Pin 2 to 9 takes data from processor to the device.
- Pin 10, the ACK pin used by printers shows willingness that it is ready to accept for data.
- Pin 18 to 25 are ground
; Show scancode on external LEDs connected through parallel port
[org 0x0100]
jmp start
oldisr: dd 0 ; Space for saving old ISR
; Keyboard interrupt service routine
kbisr:
push ax
push dx
in al, 0x60 ; Read char from keyboard port
mov dx, 0x378
out dx, al ; Write char to parallel port
pop ax
pop dx
jmp far [cs:oldisr] ; Call original ISR
start:
xor ax, ax
mov es, ax ; Point es to IVT base
mov ax, [es:9*4]
mov [oldisr], ax ; Save offset of old routine
mov ax, [es:9*4+2]
mov [oldisr+2], ax ; Save segment of old routine
cli ; Disable interrupts
mov word [es:9*4], kbisr ; Store offset at n*4
mov [es:9*4+2], cs ; Store segment at n*4+2
sti ; Enable interrupts
mov dx, start ; End of resident portion
add dx, 15 ; Round up to next para
mov cl, 4
shr dx, cl ; Number of paras
mov ax, 0x3100 ; Terminate and stay resident
int 0x21
This program prints scancode of keystrokes on the connected LED circuit.
