Implementation of Priority Queue

#include "Event.cpp"
#define PQMAX 30
class PriorityQueue {

    public:
        PriorityQueue() {
            size = 0; rear = -1;
        };

        ~PriorityQueue() {};
        int full(void) {
            return ( size == PQMAX ) ? 1 : 0;
        };

        Event* remove() {
            if( size > 0 ) {
                Event* e = nodes[0];
                for(int j=0; j < size-2; j++ )
                nodes[j] = nodes[j+1];
                size = size-1; rear=rear-1;
                if( size == 0 ) rear = -1;
                return e;
            }

            return (Event*)NULL;
            cout << "remove - queue is empty." << endl;
        };

        int insert(Event* e) {

            if( !full() ) {
                rear = rear+1;
                nodes[rear] = e;
                size = size 1;
                sortElements(); // in ascending order
                return 1;
            }

            cout << "insert queue is full." << endl;
            return 0;
        };

        int length() { return size; };
};

Tree

There are some data-structures which are linear such as stack, linked-list etc.
tree is a non-linear data-structure.

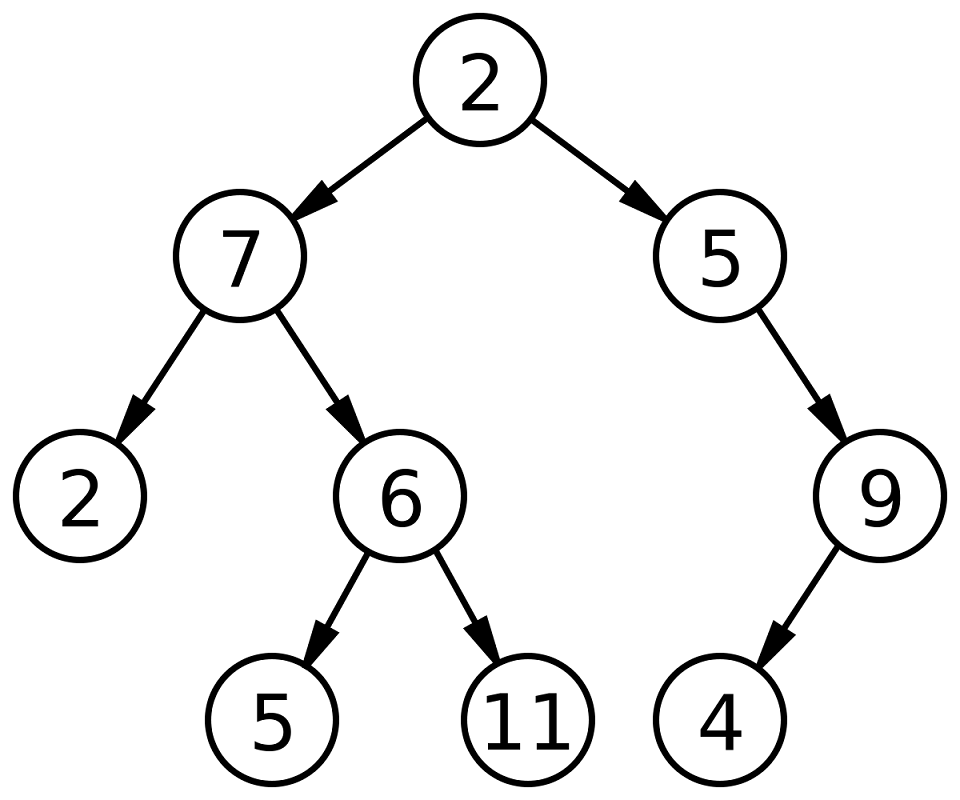

Binary Tree

It is a mathematical model defined as a

binary-tree is a finite set of elements which is either empty or is partitioned into 3 disjoint subsets.
  • the elements themselves are called nodes.
  • One of the 3 subsets contains a single node called the root.
  • Other 2 are binary trees themselves called the left or right sub trees.

Pasted image 20240608143138.png

Terminologies of a Binary Tree

The left subtree is called left descendant and right subtree is called the right descendant.
The nodes with no descendants are called leaf nodes.

Strictly Binary Tree

This is a type of binary-tree where every non-leaf node has to have a left and a right sub-tree.

Level

The level of the root node is 0.
The more levels we go deeper, the more level increases by 1.

Depth

The maximum level number of a binary-tree tree is called its depth.

Complete Binary Tree

If there is left and right sub-tree of each node, it is called a complete binary-tree.

If l is a certain level value in a complete binary-tree then the number of nodes in that level is defined by 2^l.

The total number of nodes in a complete binary-tree with a depth d is:

\[\sum^d_{i=0}2^i=2^{d+1}-1\]
