Operations on Binary Tree

Operation	Description
left(p)	Returns a pointer to the left sub-tree
right(p)	Returns a pointer to the right sub-tree
parent(p)	Returns the father node of p
brother(p)	Returns the brother node of p
info(p)	Returns the contents of node p
setLeft(p, x)	Creates the left child node of p and set the value x into it.
setRight(p, x)	Creates the right child node of p, the child node contains the info x.

Applications of Binary Tree

binary-tree is useful when a 2-way decision is made at each point.
Example: we want to find the duplicates from the following list:

14, 15, 4, 9, 7, 18, 3, 5, 16, 4, 20, 17, 9, 14, 5

Searching For Duplicates

We can either use an array or a linked-list to transverse this list and figure out the frequency of the duplicate elements but it is slow.
It can be optimized by using a binary-tree implemented through linked-list.

The first element becomes the root node, for the other elements, if they are less than the root then they become part of the left subtree.
Otherwise, if greater, then they become part of right subtree.

C++ Implementation of Binary Tree

Implementation

/* This file contains the TreeNode class declaration. TreeNode contains the functionality for a binary tree node. */

#include <stdlib.h>

template <class Object>
class TreeNode {
    public:
        // constructors
        TreeNode() {
            this->object = NULL;
            this->left = this->right = NULL;
        };

        TreeNode( Object *  object ) {
            this->object = object;
            this->left = this->right = NULL;
        };

        Object* getInfo() {
            return  this->object;
        };

        void setInfo(Object* object) {
            this->object = object;
        };

        TreeNode* getLeft() {
            return left;
        };

        void setLeft(TreeNode* left) {
            this->left = left;
        };

        TreeNode* getRight() {
            return right;
        };

        void setRight(TreeNode* right) {
            this->right = right;
        };

        int isLeaf() {

            if(this->left == NULL && this->right == NULL)
                return  1;

            return  0;
        };

    private:
        Object* object;
        TreeNode* left;
        TreeNode* right;
}; // end class TreeNode

Usage

#include <iostream>
#include <stdlib.h>
#include "TreeNode.cpp"

int main(int argc, char* argv[]) {

    int x[] = {14,15,4,9,7,18,3,5,16,4,20,17,9,14,5,-1};
    TreeNode<int>* root = new TreeNode<int>();
    root->setInfo(&x[0]);

    for(int i = 1; x[i] > 0; i++) {
        insert(root, &x[i]);
    }
}

void insert(TreeNode<int>* root, int* info) {

    TreeNode<int>* node = new TreeNode <int> (info);
    TreeNode<int>* p, *q;
    p = q = root;

    while(*info != *(p->getInfo()) && q != NULL) {
        p = q;
        if(*info < *(p->getInfo()))
            q = p->getLeft();
        else
            q = p->getRight();
    }

    if(*info == *(p->getInfo())) {
        std::cout << "attempt to insert duplicate: " << *info << std::endl;
        delete node;
    }
    else if(*info < *(p->getInfo()))
        p->setLeft(node);
    else
        p->setRight(node);
}

Trace of Insert

We are inserting number 17.

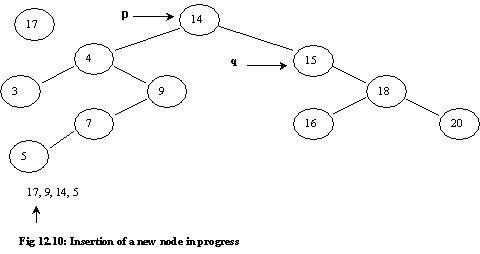

First, the p and q point to the root.

Then this section is executed:

while(*info != *(p->getInfo()) && q != NULL) {
    p = q;
    if(*info < *(p->getInfo()))
        q = p->getLeft();
    else
        q = p->getRight();
}

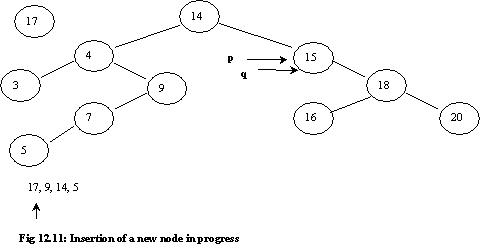

The else block is triggered and q is moved to the right.

p = q;

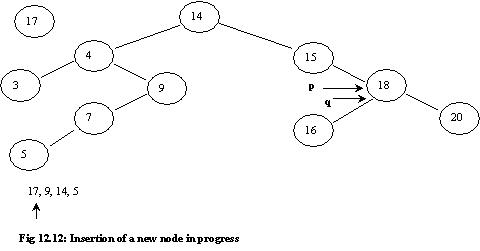

As the while-loop repeats,

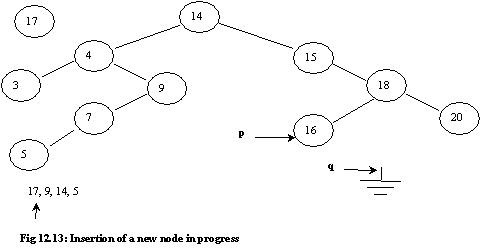

After reaching 16, the statement:

else
    q = p->getRight();

Is executed and makes the while-loop condition false.

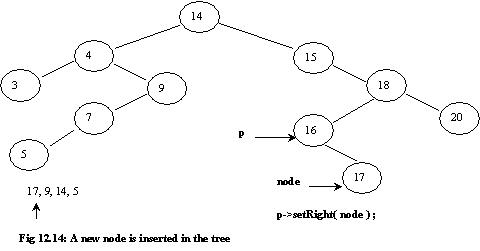

Then finally, this section runs

if(*info == *(p->getInfo())) {
    std::cout << "attempt to insert duplicate: " << *info << std::endl;
    delete node;
}
else if(*info < *(p->getInfo()))
    p->setLeft(node);
else
    p->setRight(node);
