AVL Tree
If k is any level in the binary-tree then total number of nodes at that level is \(2^k\).

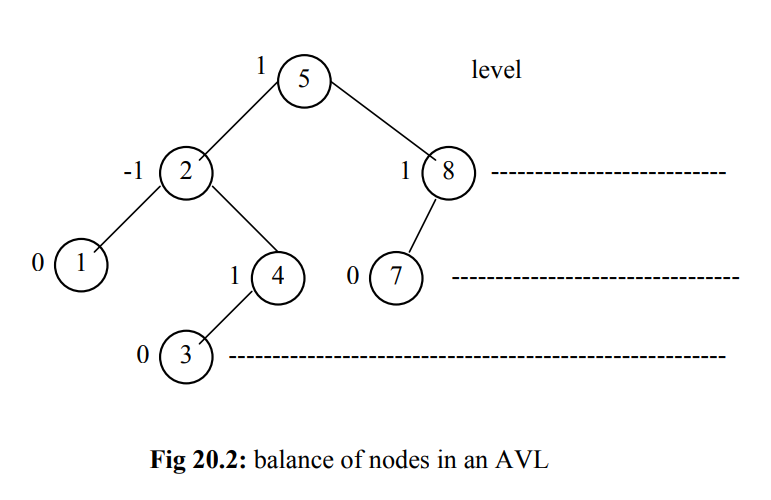

We need to keep track of these balance values called balance factor.
Insertion in AVL Tree

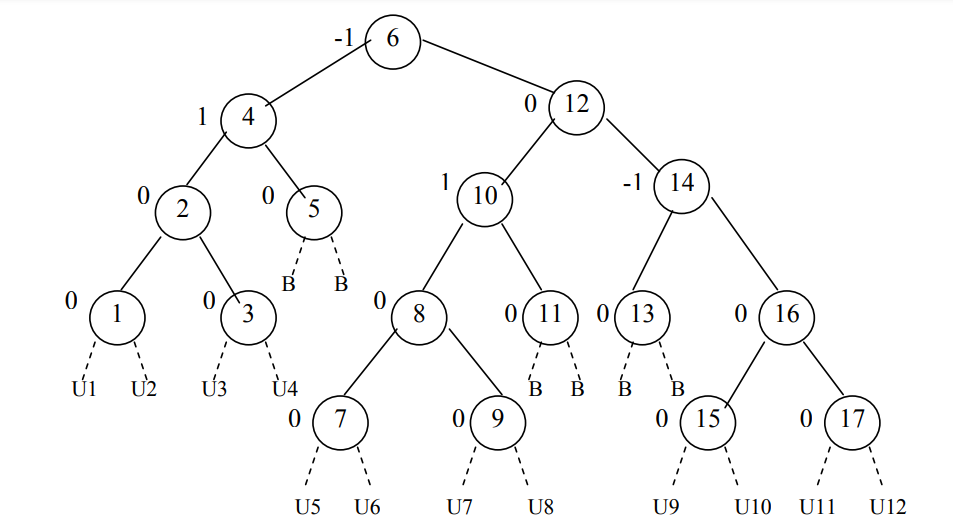

Here B indicates the positions where inserting a node will keep the tree balanced.
Whereas, the U indicates the positions where inserting a node will cause the whole tree to be unbalanced.
The letters A, B, C can be treated as numbers, meaning that they can be sorted in ascending or descending order. This order of letters (start from A, being less than B) is called lexographic order.

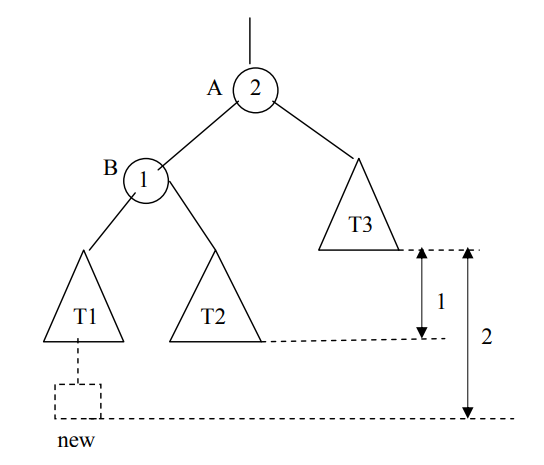

The order according to inorder is:
1. T1
2. B
3. T2
4. A
5. T3
Notice how if we are to insert a new element in inorder way, the balance of the tree is destroyed.
Notice how even after changing the arrangement of nodes in the tree, the order of inorder transversal remains the same.
1. T1
2. B
3. T2
4. A
5. T3
This tree modification process is called Tree Rotation.
Example (AVL Tree Building)

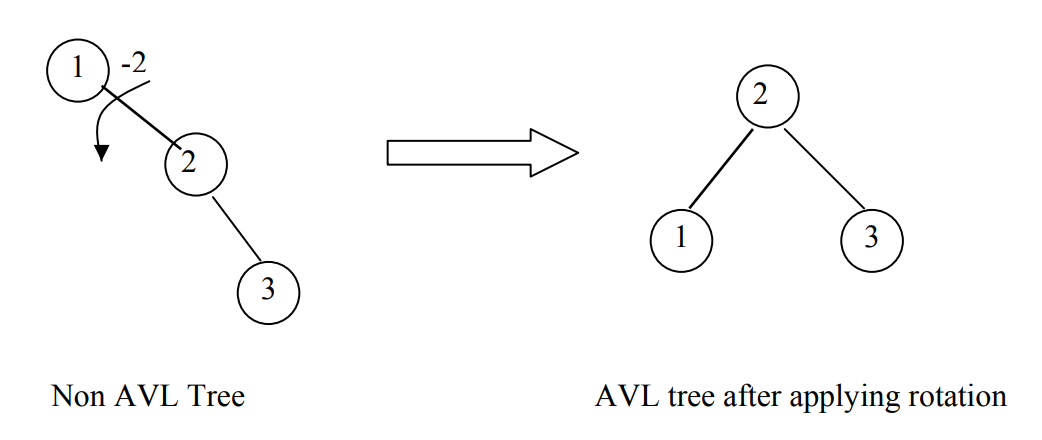

First, we create a node with 1 as root.
Then we insert 2 and since it is greater so it goes into the right subtree.
Similarly, we inserted 3 as well but now the balance of the tree is off.
To fix this, we apply rotation.
