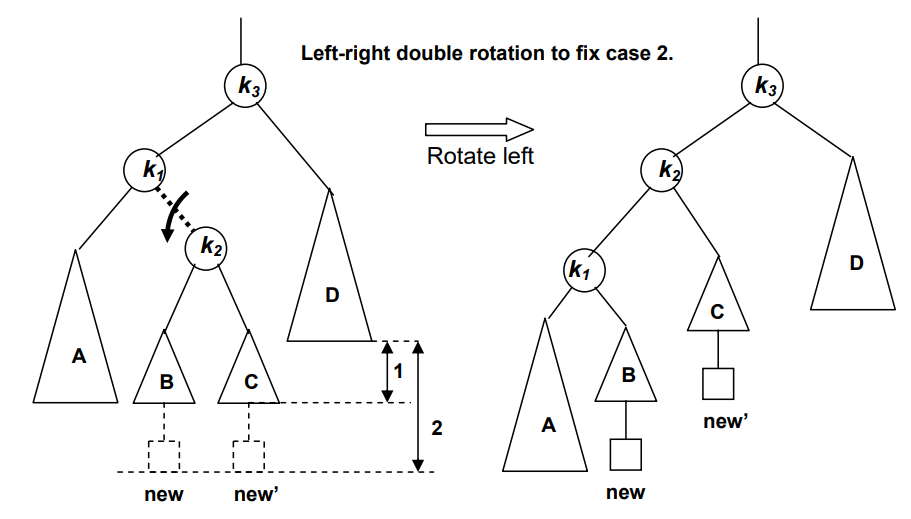

Left-right Double Rotation

Pasted image 20240801175255.png

(ignore the caption in the img, it is not consistent with the lecture notes).

Pasted image 20240801175501.png

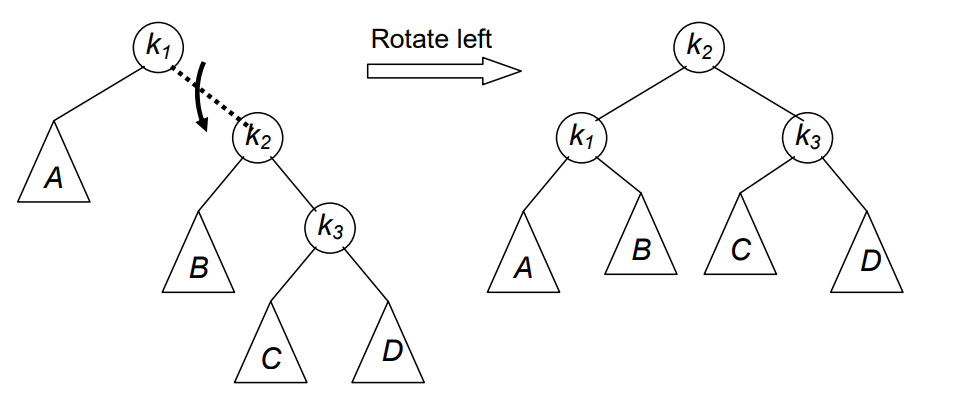

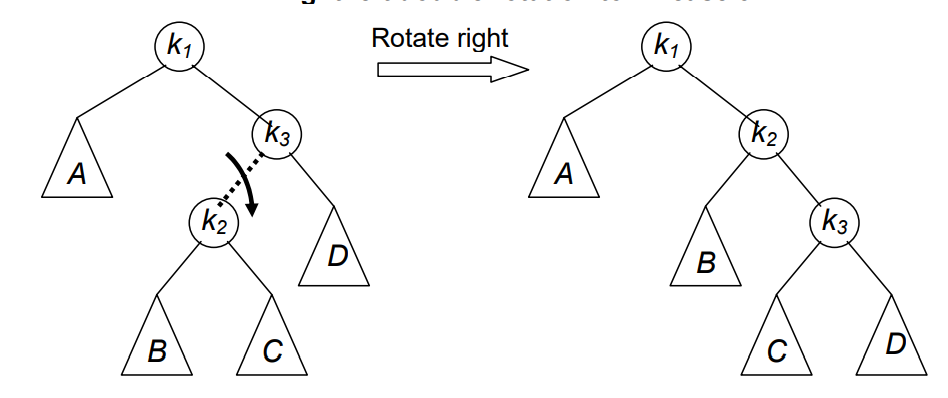

Right-left Double Rotation

Pasted image 20240801175740.png

Pasted image 20240801175759.png

C++ Code for AVL Insert Method

/* This is the function used to insert nodes satisfying the AVL condition.*/
TreeNode* avlInsert(TreeNode* root, int info) {
    if(info < root->getInfo()){

        root->setLeft(avlInsert(root->getLeft(), info));
        int htdiff = height(root->getLeft()) – height(root->getRight());

        if(htdiff == 2) {
            if(info < root->getLeft()->getInfo())
                //outside insertion case
                root = singleRightRotation(root);
            else //inside insertion case
                root = doubleLeftRightRotation(root);
        }
    }

    else if(info > root->getInfo()) {

        root->setRight(avlInsert(root->getRight(),info));
        int htdiff = height(root->getRight()) – height(root->getLeft());

        if(htdiff == 2) {
            if(info > root->getRight()->getInfo())
                root = singleLeftRotation(root);
            else
                root = doubleRightLeftRotation( root );
        }
    }
// else a node with info is already in the tree. In // case, reset the height of this root node.
    int ht = Max(height(root->getLeft()), height(root->getRight()));
    // new height for root.
    root->setHeight(ht + 1);
    return root;
}
