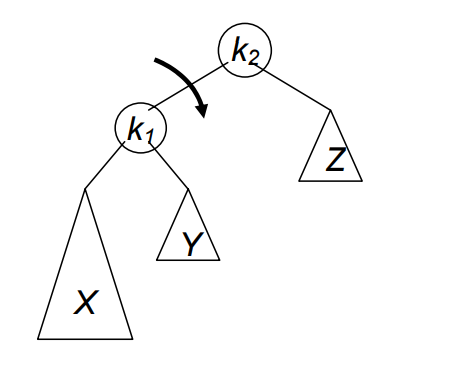

Single Right Rotation

TreeNode* singleRightRotation(TreeNode* k2) {
    if(k2 == NULL)
        return NULL; // k1 (first node in k2's left subtree) will be the new root
    TreeNode* k1 = k2->getLeft(); // Y moves from k1's right to k2's left
    k2->setLeft(k1->getRight());
    k1->setRight(k2);
    // reassign heights. First k2
    int h = Max(height(k2->getLeft()), height(k2->getRight()));
    k2->setHeight(h+1);
    // k2 is now k1's right subtree
    h = Max(height(k1->getLeft()), k2->getHeight());
    k1->setHeight(h+1);
    return k1;
}

Height Function

int height(TreeNode* node) {

    if(node != NULL)
        return node->getHeight();

    return –1;
}

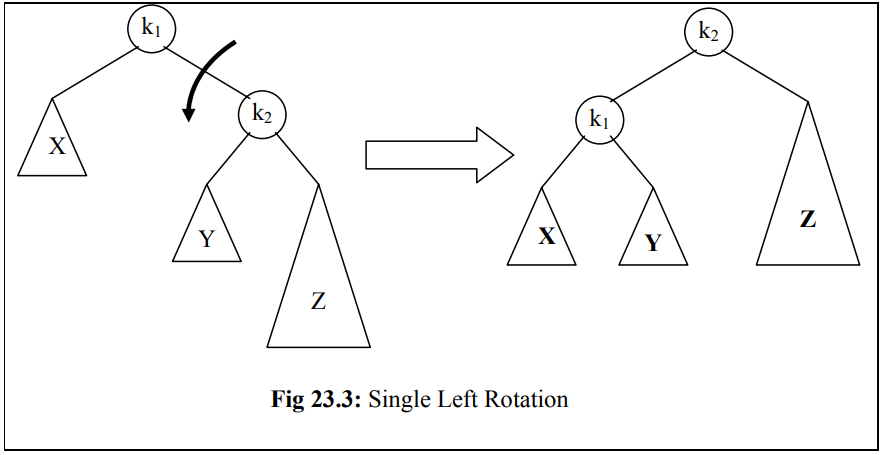

Single Left Rotation

TreeNode* singleLeftRotation(TreeNode* k1) {
    if(k1 == NULL)
        return NULL; // k2 is now the new root

    TreeNode* k2 = k1->getRight();
    k1->setRight(k2->getLeft()); // Y
    k2->setLeft(k1); // reassign heights. First k1 (demoted)

    int h = Max(height(k1->getLeft()), height(k1->getRight()));

    k1->setHeight(h+1); // k1 is now k2's left subtree
    h = Max( height(k2->getRight()), k1->getHeight());
    k2->setHeight(h+1);

    return k2;
}

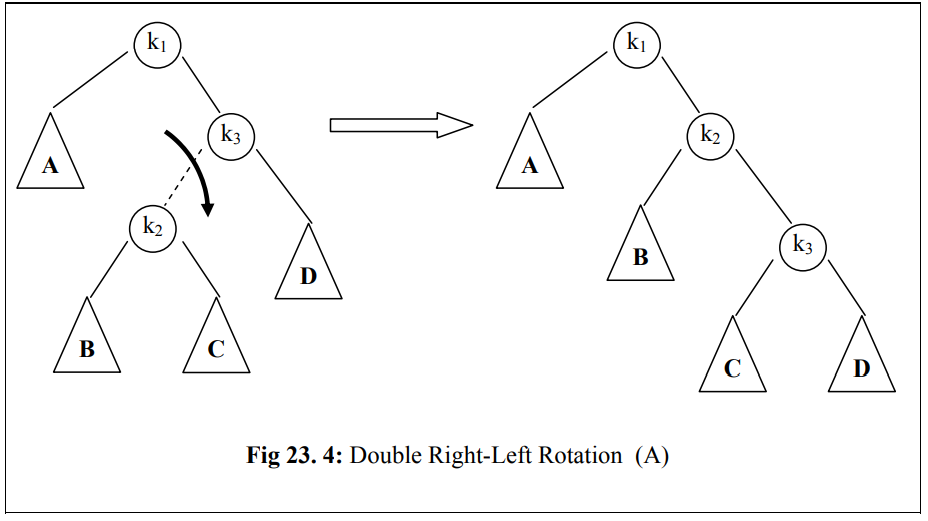

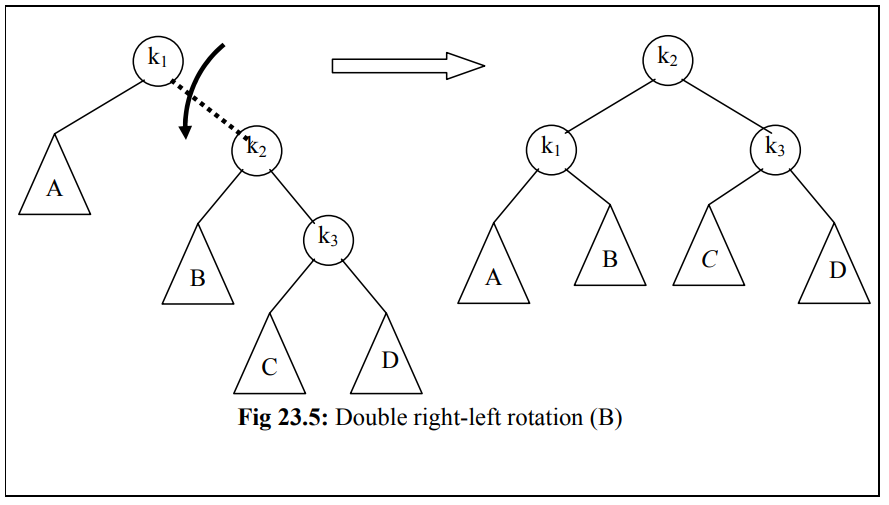

Double Right-Left Rotation

TreeNode* doubleRightLeftRotation(TreeNode* k1) {
    if(k1 == NULL)
        // single right rotate with k3 (k1's right child)
        return NULL;

    // now single left rotate with k1 as the root
    k1->setRight(singleRightRotation(k1->getRight()));
    return singleLeftRotation(k1);
}

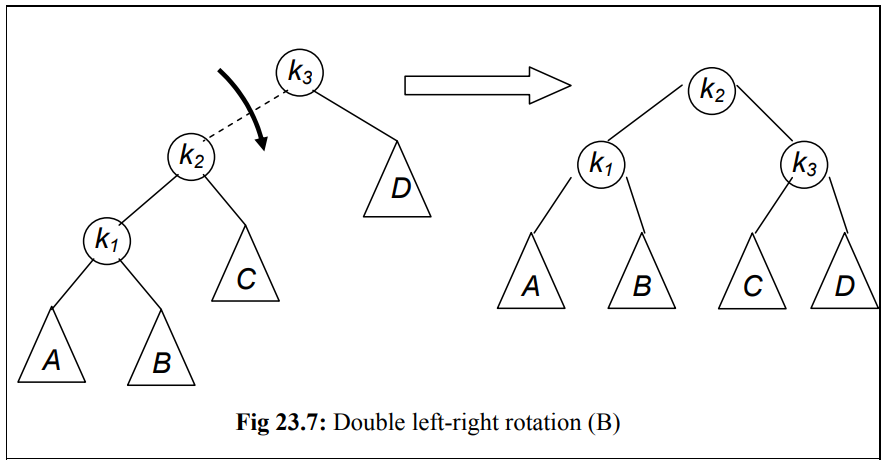

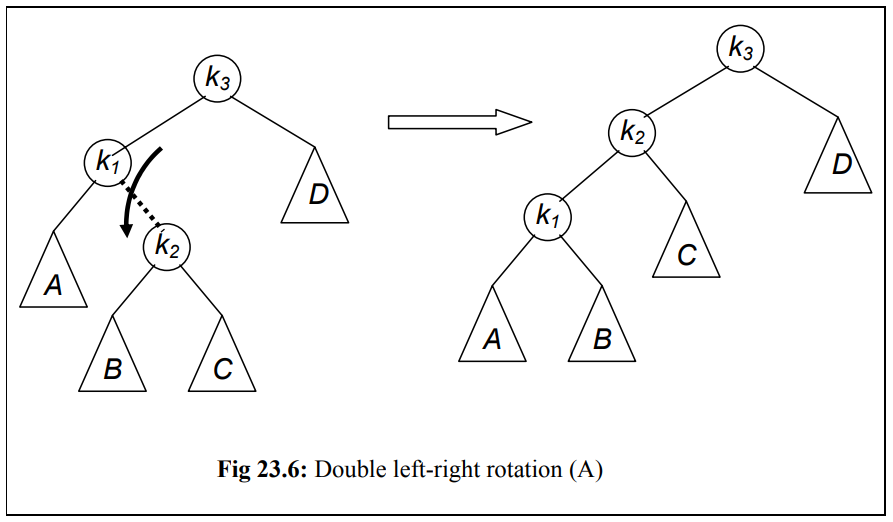

Double Left-right Rotation

TreeNode* doubleLeftRightRotation(TreeNode* k3) {
    if(k3 == NULL)
        // single left rotate with k1 (k3's left child)
        return NULL;

    // now single right rotate with k3 as the root
    k3->setLeft(singleLeftRotation(k3->getLeft()));
    return singleRightRotation(k3);
}

Deletion in AVL Tree

At the worst case, we will have to perform \(log_2(N)\) rotations where N is the number of nodes.

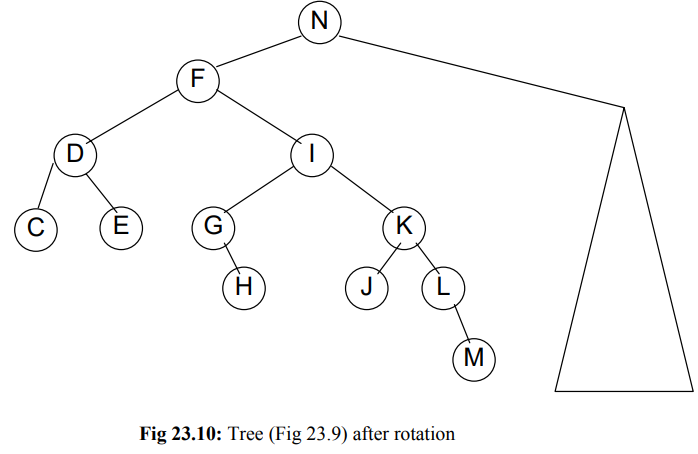

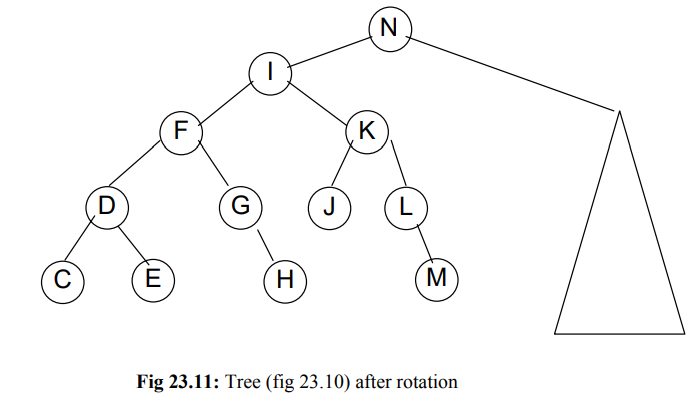

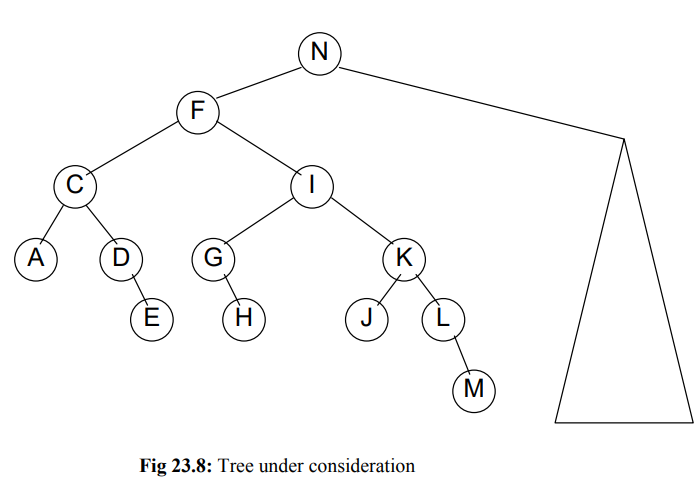

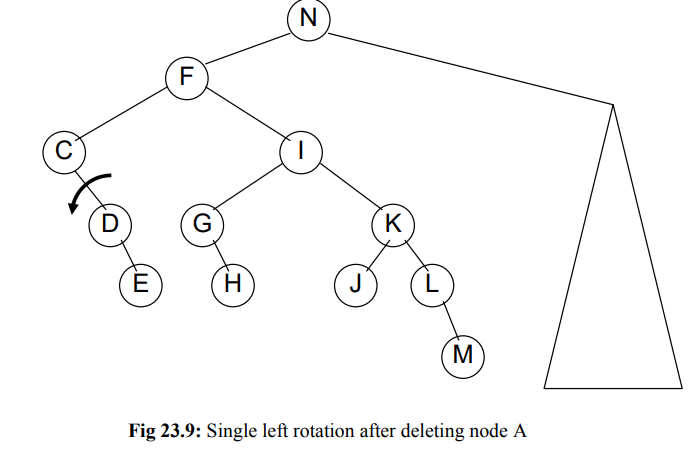

We are going to delete node A and it will be the worst case possible.

Cases of Deletion in AVL Tree

There are 5 cases:

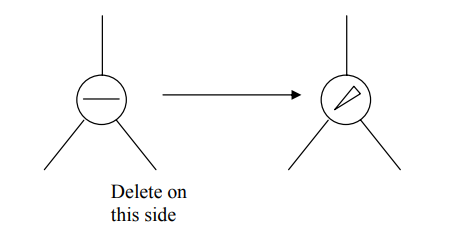

Case 1a

The node to be deleted has a parent with balance as 0 and the node is in left subtree

The left one indicates that the node has 0 balance.
The right one indicates that the node has right subtree with greater height.

Case 1b

The node to be deleted has a parent with balance as 0 and the node is in right subtree

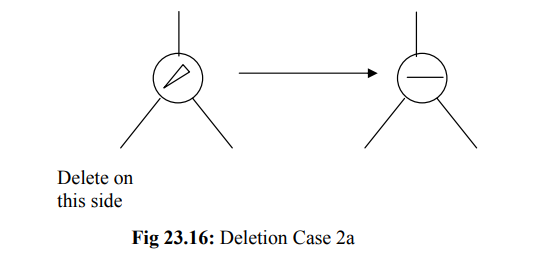

Case 2a

The node to be deleted is at the left subtree of a parent node with no right subtree
