Expression Tree

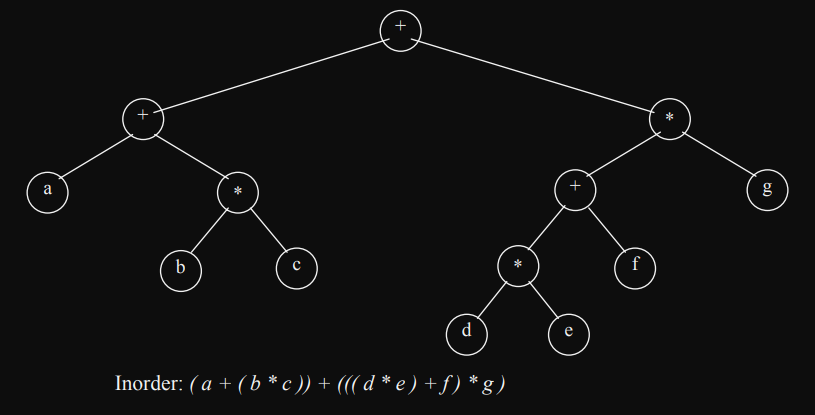

Take this tree for example, the inorder transversal gives us the infix form.
The postfix transversal gives us postfix form: a b c * + d e * f + g * +

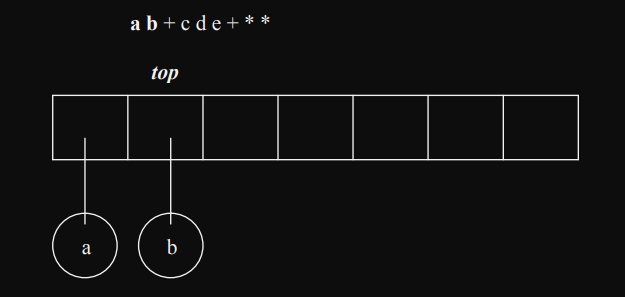

We can also create the tree from a stack.

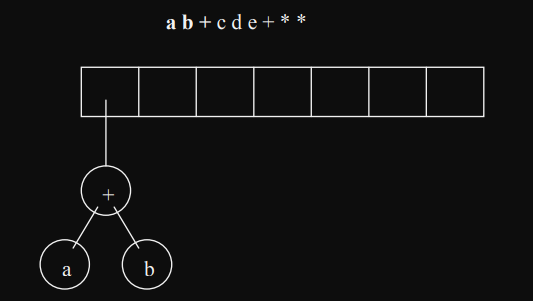

As soon as + is encountered:

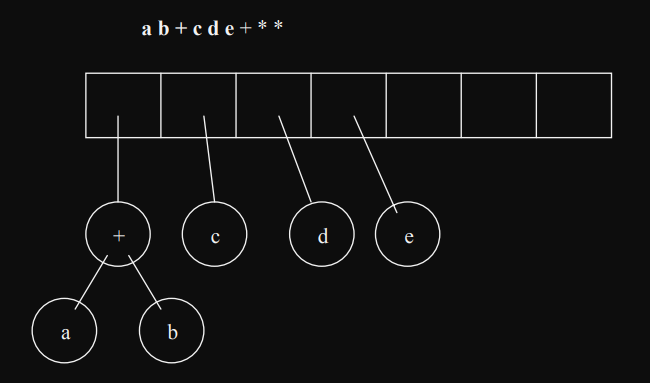

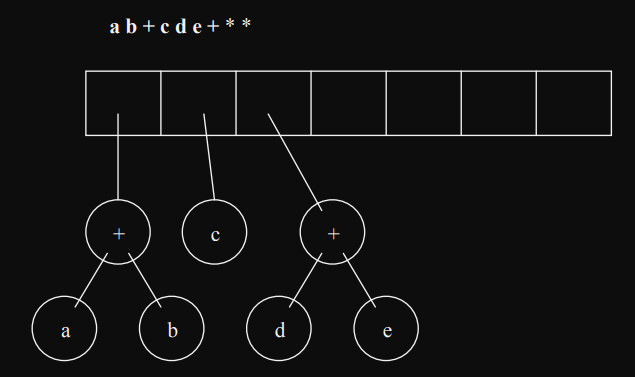

Then we keep scanning the operands as such:

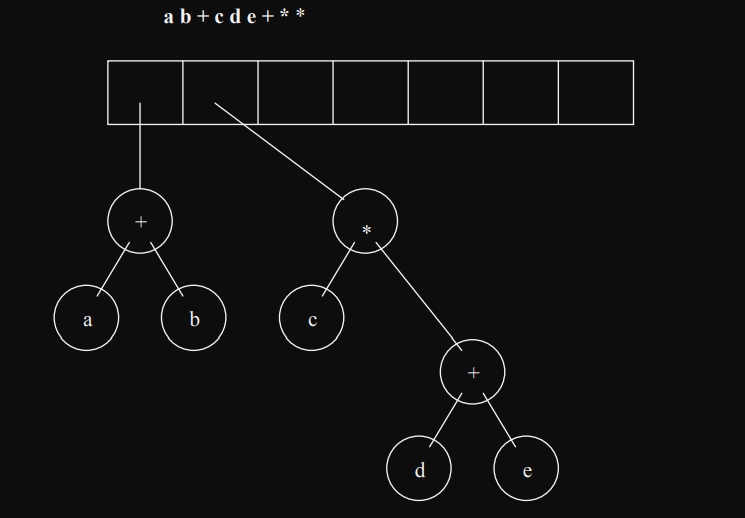

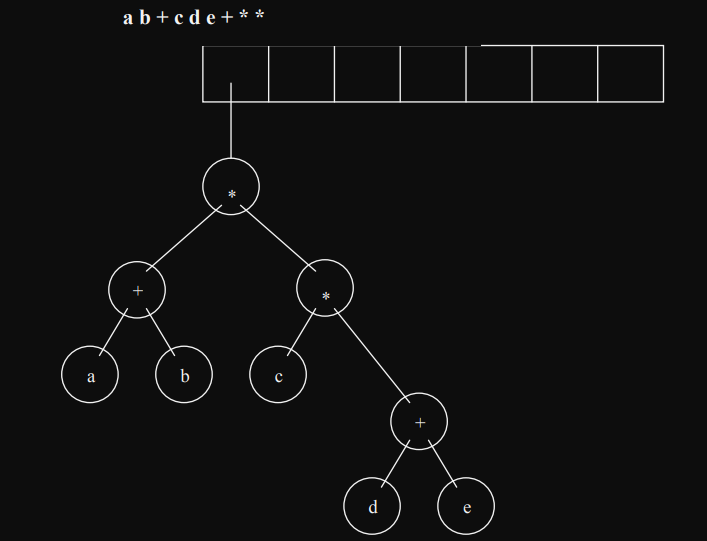

And we pop the elements as such

Huffman Encoding

This is a compression technique 1. List all characters including space characters along with their frequency in the string. 2. Consider each of these characters as a node. 3. Pick the two nodes with lowest frequency, if their frequency is equal then pick any. 4. Combine the frequencies of two nodes with equal frequencies into a parent node.

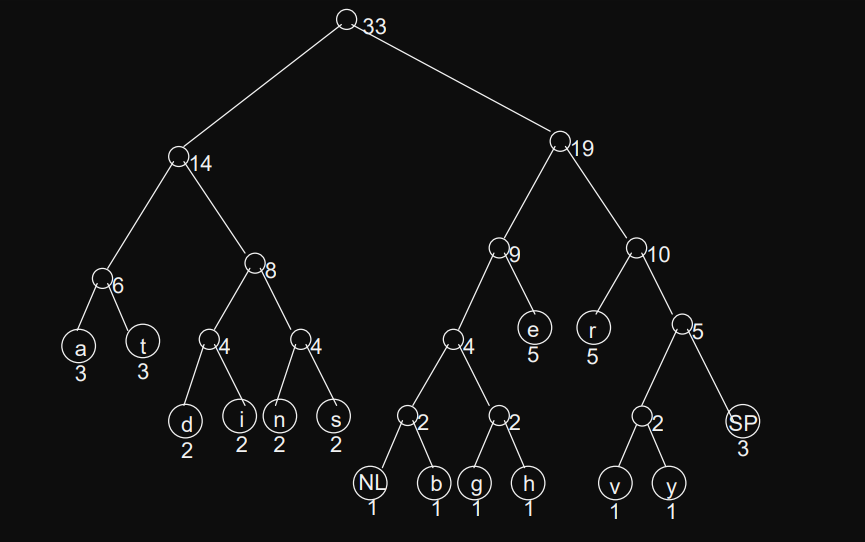

Example

String: "traversing threaded binary trees"
size: 33 characters (including space and newline)

Letters	Frequency
NL	1
SP	3
a	3
b	1
d	2
e	5
g	1
h	1
