Properties of Binary Tree

A binary-tree with N internal nodes has 2N links, N - 1 with internal nodes and N + 1 with external nodes.

Threaded Binary Trees

This tree replaces the null pointers of a node to the appropriate inorder successor predecessor of that node.

Adding Threads During Insert

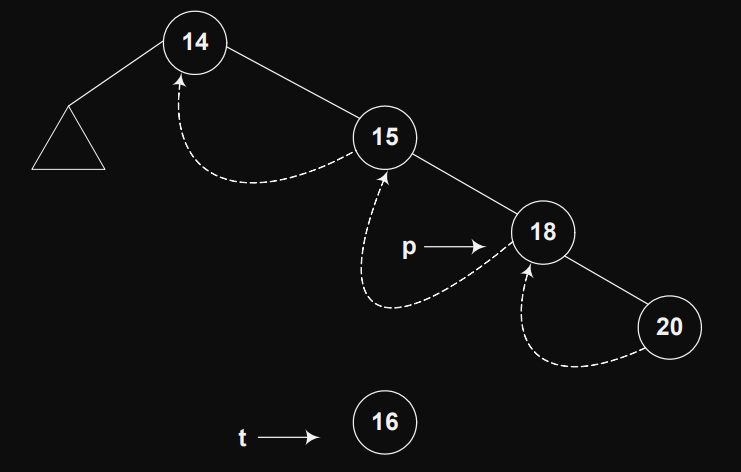

Following are the steps which insert a node in the threaded binary tree

t->L = p->L; // copy the thread
t->LTH = thread;
t->R = p; // *p is successor of *t
t->RTH = thread;
p->L = t; // attach the new leaf
p->LTH = child;

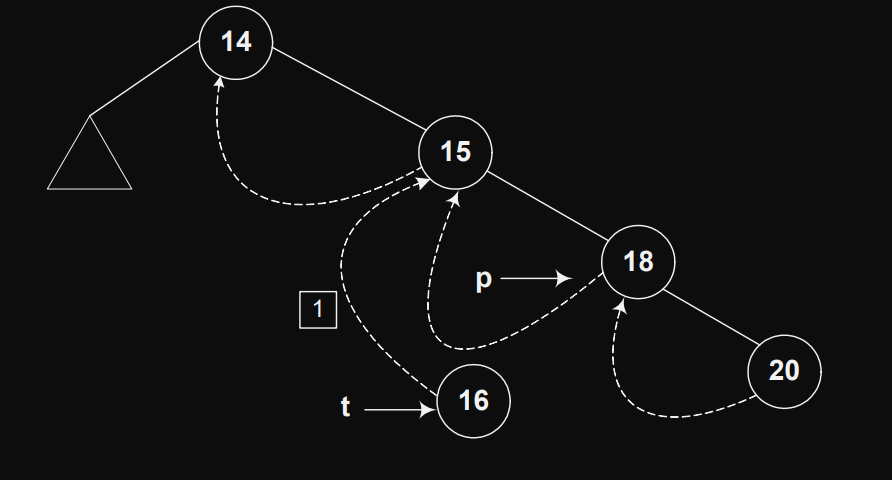

First instruction: points the left pointer to the current node's left pointer.

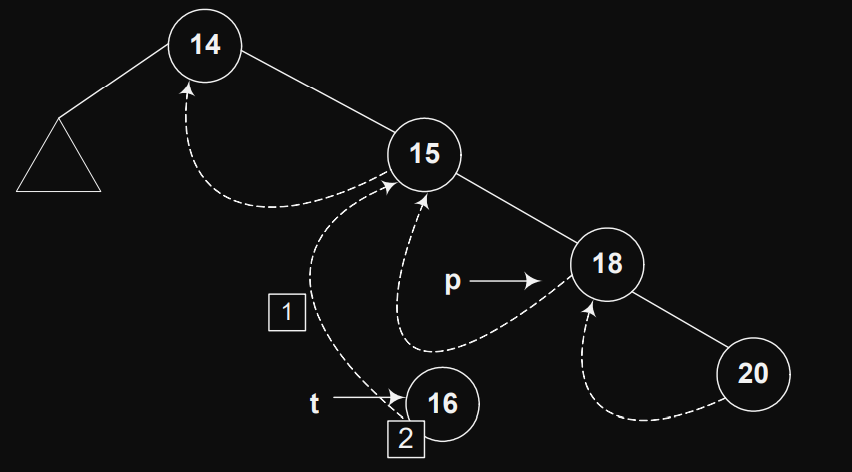

Next instruction: set the flag that right thread has been established

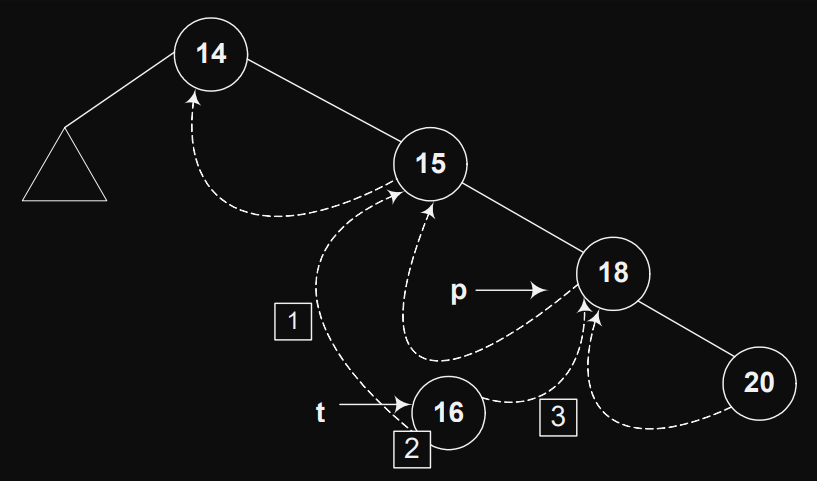

Next instruction: point the right pointer of t to the current node.

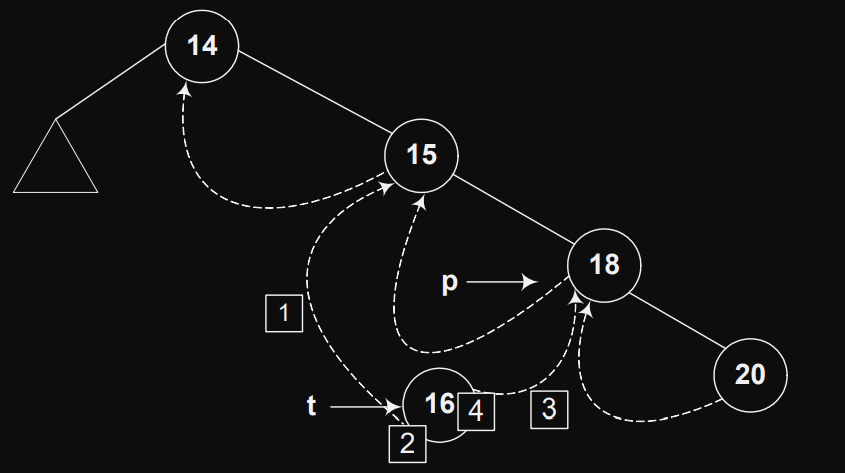

Next instruction: set the flag that thread has been established

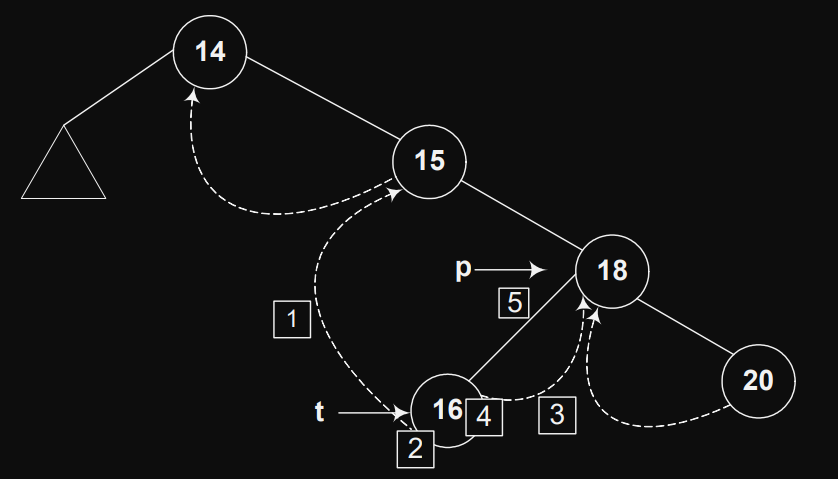

Next instruction: set the left pointer of current node to the t node.

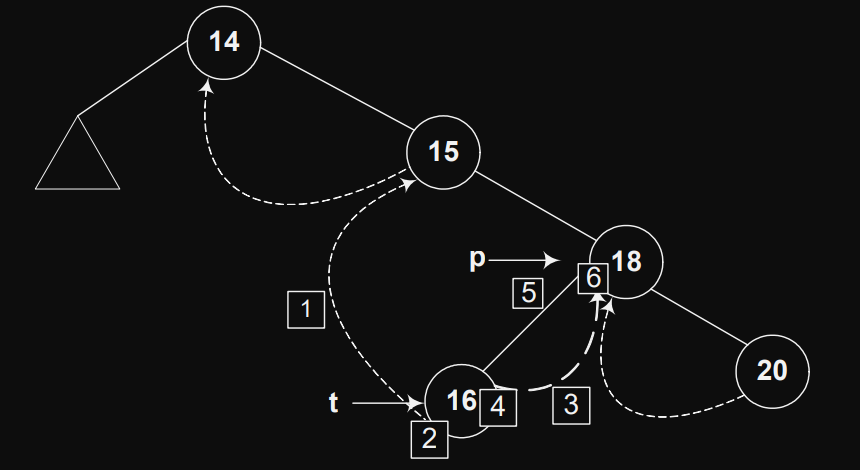

Lastly, set the left pointer of t node to the current node.

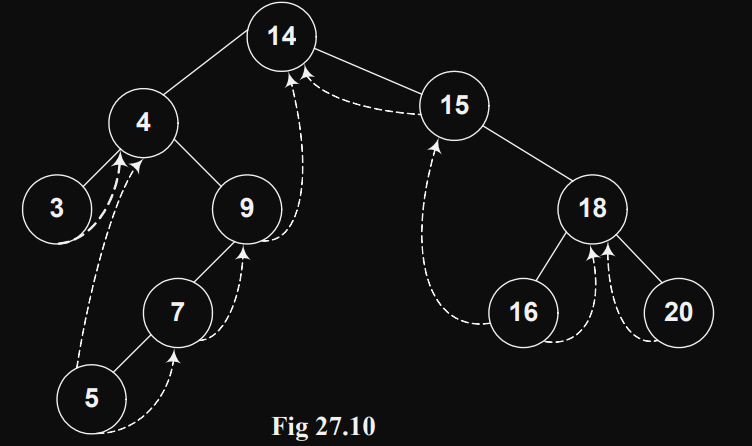

The complete tree looks like this:

TreeNode* nextInorder(TreeNode* p) {

    if(p->RTH == thread)
        return(p->R);

    else {
        p = p->R;

        while(p->LTH == child)
            p = p->L;

         return p;
    }
}
