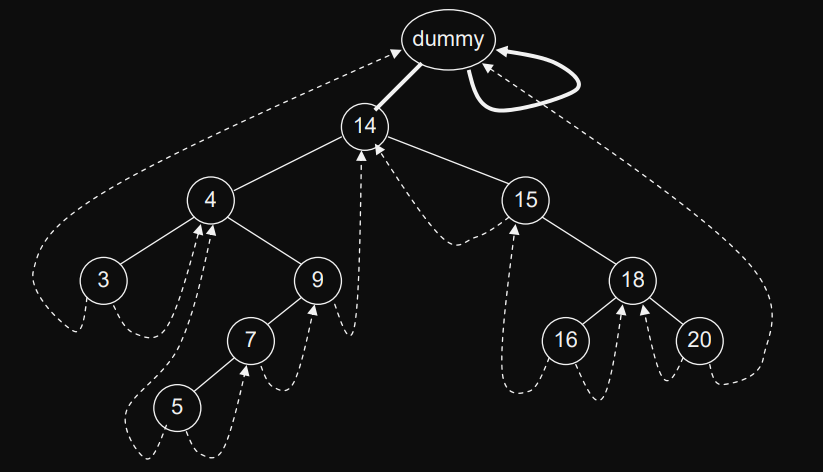

Inorder Traversal in Threaded Tree

The code snippet in previous lecture is not enough to determine the inorder traversal from the root node.
We therefore need a dummy node for it to work.

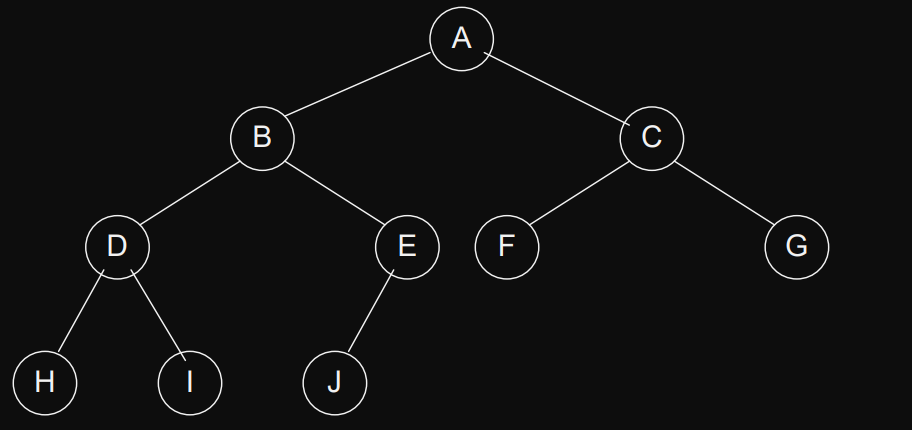

Complete Binary Tree

The tree with leaf nodes being from left to right is called a complete binary tree 1. The total number of nodes can be between \(2^k\) to \(2^{k+1}-1\) nodes. 2. The height of such a tree is \(\lfloor log_2{N} \rfloor\)

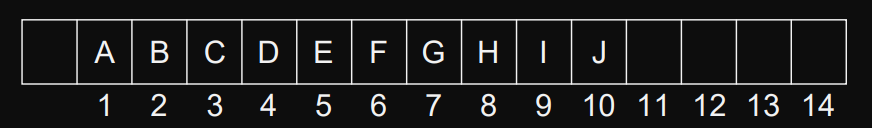

We can arrange the tree in an array following the level order pattern

For any given element with index i, the left child node is at index 2i and the right one being at index 2i + 1 and parent node being at \(\lfloor \frac{i}{2} \rfloor\)
