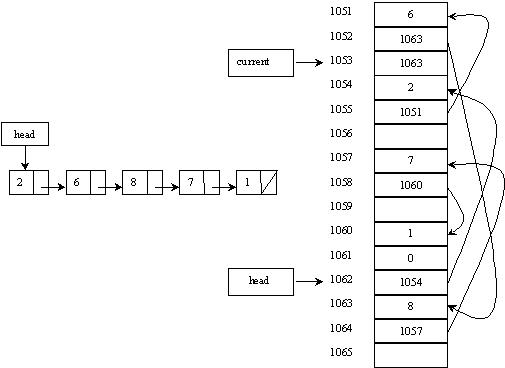

Pasted image 20240424095248.png

The memory address of head itself is 1062.
It stores the value (memory address of the first node) 1054.
The first node stores the value 2 and a pointer (value: 1051) to the next node (which stores value 6).
The current pointer (with address: 1053) points to 1063 which is the 3rd node, also pointed by 2nd node.

Node Insertion

Node* newNode = new Node(9);

This creates an object of class Node with 9 passed as a parameter to it's constructor.

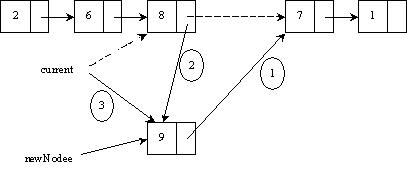

Pasted image 20240424100414.png

Algorithm: 1. Get the node pointed by current. 2. Set newNode.next to current.next. 3. Set current.next to newNode. 4. Set current to NewNode.

Node

class Node {
    public:
        int get() {
            return object;
        }

        void set(int value) {
            this->object = value;
        }

        Node* getNext() {
            return nextNode;
        }

        void setNext(Node* node) {
            this->nextNode = node;
        }
    private:
        int object;
        Node* nextNode;
}

This Node class is a factory.
state variables: object, nextNode.
methods: get, set, getNext, setNext.

List

class List {
    public:
        List () {
            headNode = new Node();
            headNode -> setNext(NULL);
            currentNode = NULL;
            size = 0;
        }

    private:
        int size;
        Node* headNode;
        Node* currentNode;
        Node* lastCurrentNode;
}

Add()

void List::add(int value) {
    //create a node
    Node* newNode = new Node();

    //if the list is NOT empty
    if (currentNode != NULL) {
        //set new's next to current's next
        newNode->setNext(currentNode->getNext());
        newNode->set(value);
        //set new to current's next
        currentNode->setNext(newNode);
        //keeps track of preview node
        lastCurrentNode = currentNode;
        //set current to new
        currentNode = newNode;
    }

    //otherwise if the list is empty, there are no nodes in it
    else {
        //the final the only node
        newNode->setNext(NULL);
        headNode->setNext(newNode);
        lastCurrentNode = headNode;
        currentNode = newNode;
    }

    this->size++; //since a new node is added
}
