Stack Implementation Using Linked List

Stack with array implementation has size limitation.
To make the stack dynamically grow, we can implement it using linked list.

Worst case

  • Removing a node from the end of the list would require us to transverse the whole list from head to the node before current.

Best case

  • nodes can be added at the start using head.
  • nodes can be added at the end using current.

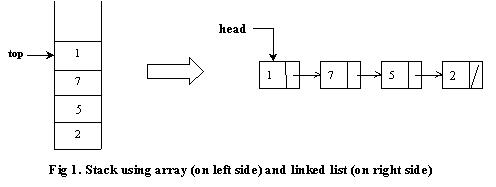

Pasted image 20240425103651.png

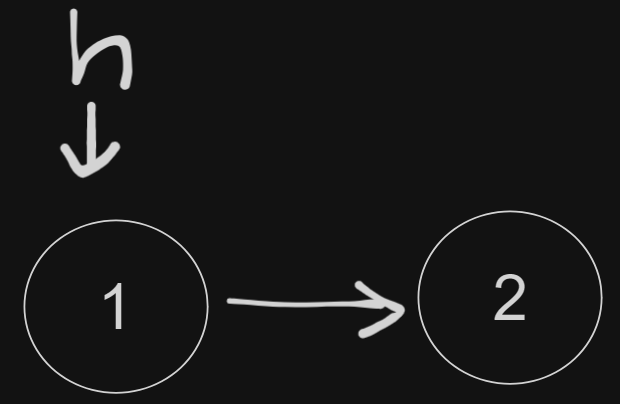

pop()

Pasted image 20240425104409.png

int value = head->get();
Node* p = head;

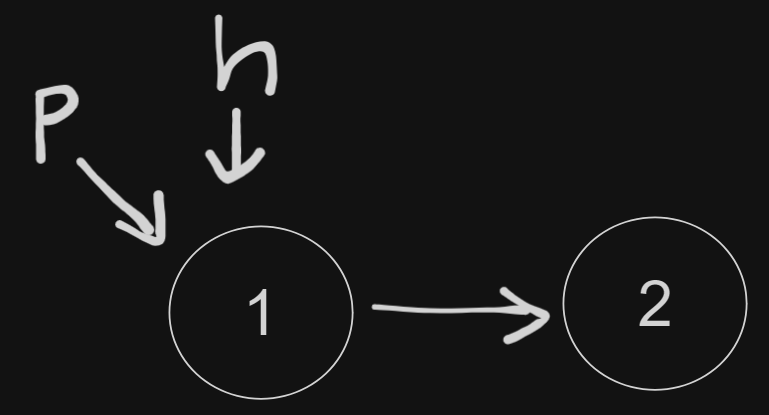

Pasted image 20240425104537.png

head = head->getNext();

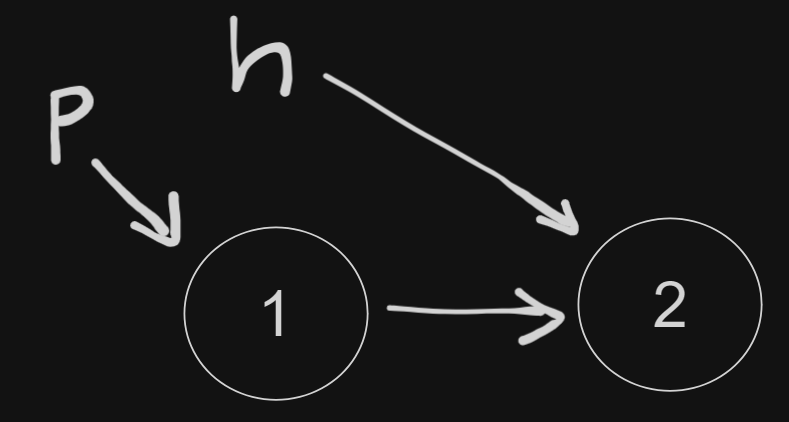

Pasted image 20240425104628.png

delete p;
return value;

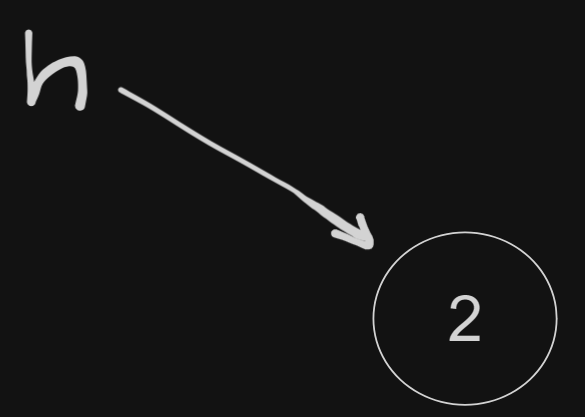

Pasted image 20240425104821.png

int pop () {
    int value = head->get();
    Node* p = head;
    head = head->getNext();
    delete p;
    return value;
}

push()

Pasted image 20240425104821.png

Node* newNode = new Node();

Pasted image 20240425105448.png

newNode->set(value);
newNode->setNext(head);

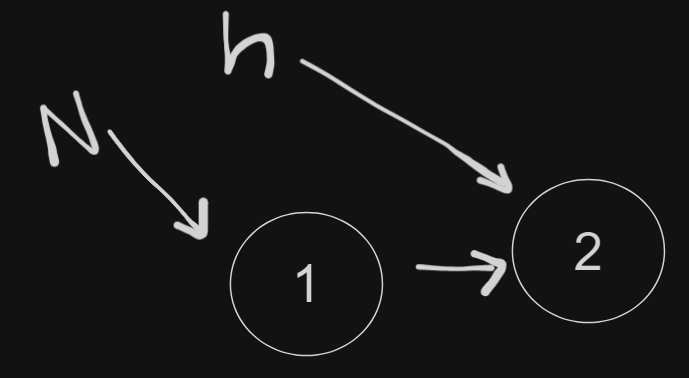

Pasted image 20240425105459.png

head = newNode;

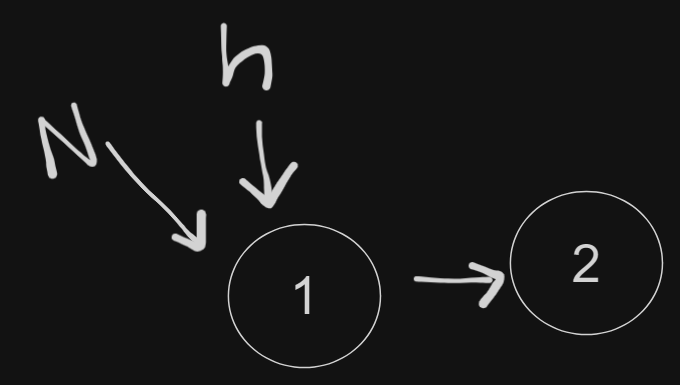

Pasted image 20240425105509.png

void push(int value) {
    Node* newNode = new Node();
    newNode->set(value);
    newNode->setNext(head);
    head = newNode;
}

Other methods:

int top () {
    return head->get();
}
int isEmpty () {
    return (head == NULL);
}

isFULL() is not required since there is no issue of limitations on the stack size.

Preference

  • Linked list: each stack element has a higher memory space requirement (for the next pointers). The allocation and de-allocation of nodes also takes a little bit of time. But the benefit here is the memory can grow and shrink dynamically without any upper limit.
  • Array: it is pre-allocated so it is faster in terms of pop() and push() requests. The down side here is the fixed memory space, it cannot grow neither shrink and leaves vacant space behind after pop() operations.

Operation Types

1. Infix

When the operator is in between the operands.
Example: A + B;

2. Prefix

when the operator is before the operands.
Example: + A B; ++x;

3. Postfix

when the operator is after the operands.
Example: A B +; x++;

Conversion of Infix to Postfix

Examples: 1. A + (B * C) 1. A + (B C *) 2. A B C * + 2. (A + B) * C 1. (A B +) * C 2. A B + C *

Operator Precedence

  1. Exponentiation: ^
  2. Multiplication / Division: *, /
  3. Addition / Subtraction: +, -

Rules

  • A + B + C means (A + B) + C (left-to-right rule).
  • A ^ B ^ C means A ^ (B ^ C) (right-to-left rule).

Examples:

infix postfix
A + B A B +
12 + 60 - 23 12 60 + 23 -
(A + B) * (C - D) A B + C D - *
A ^ B * C - D + E / F A B ^ C * D - E F / +
