consider this pseudocode:

Stack s;
while (not end of inputs) {
    e = get next input;
    if (e is an operand) {
        s.push(e);
    }
    else {
        op2 = s.pop();
        op1 = s.pop();
        value = result of operator applied on op2 and op1
        s.push(value);
    }
}
finalresult = s.pop();

Consider an example: 4 + 3 * 2.
The expression is in infix form.
Converting it to postfix form, we get: 4 3 2 * +.
Now apply the pseudocode on this input: 4 3 2 * +

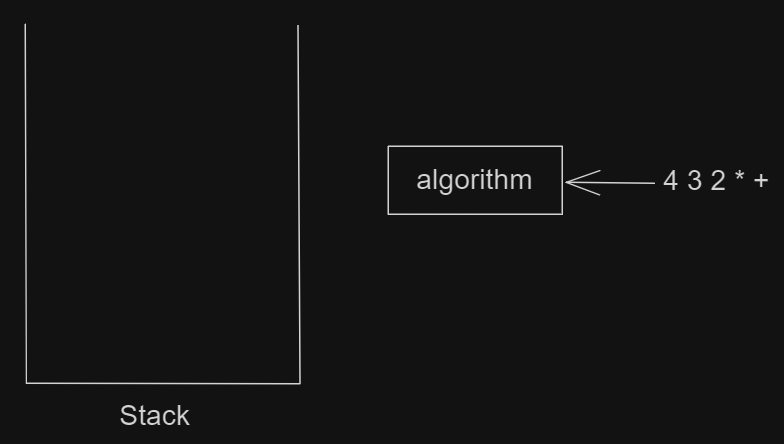

In the beginning, the stack is empty
Pasted image 20240425123016.png

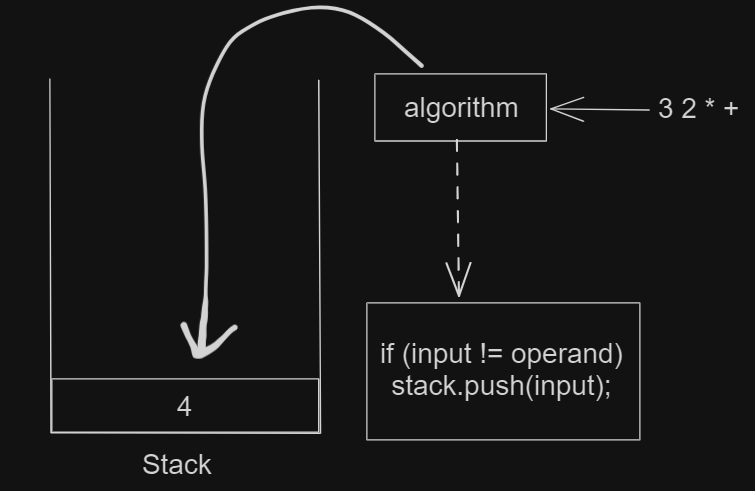

Since the first input is 4 which isn't an operator, it is pushed on the stack.
Pasted image 20240425123429.png

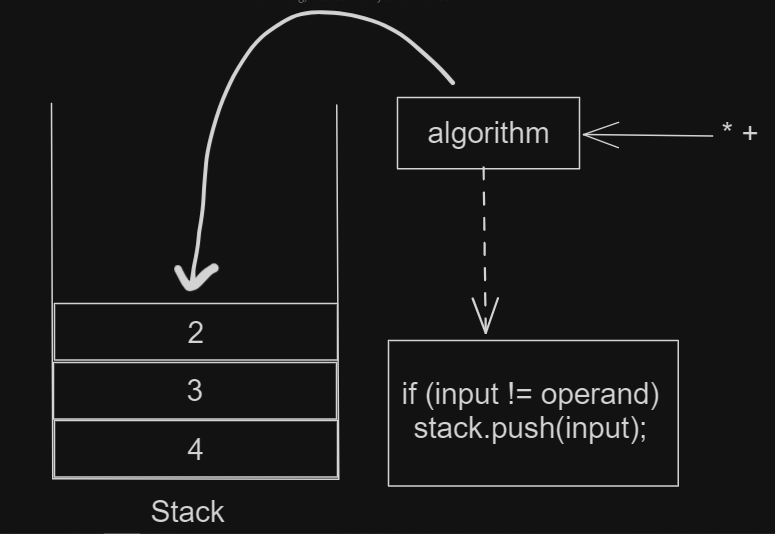

Same for 3 and 2 .
Pasted image 20240425123610.png

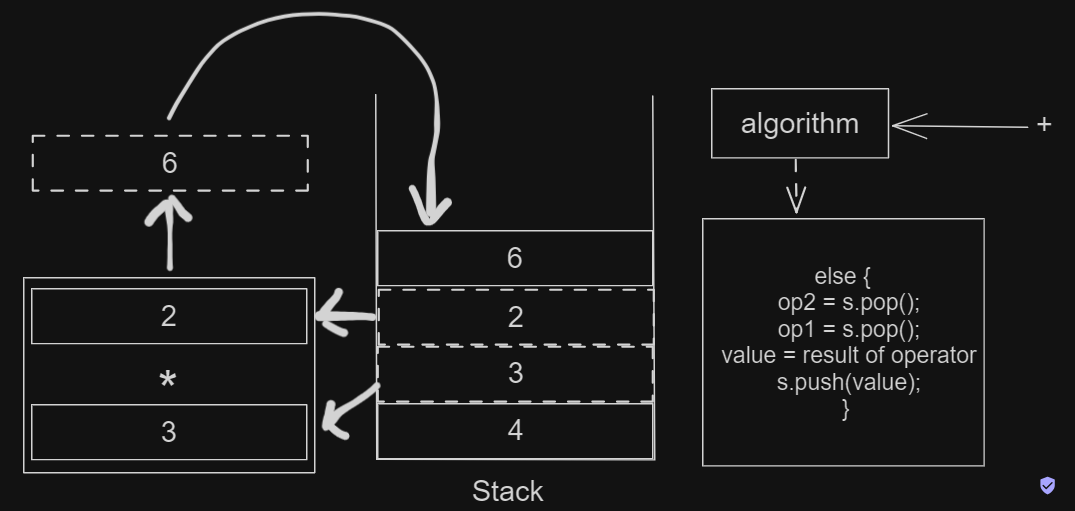

Next input is * operator, the operands are poped out of the stack, * operator is applied onto them and the result is pushed back into the stack.
Pasted image 20240425124435.png

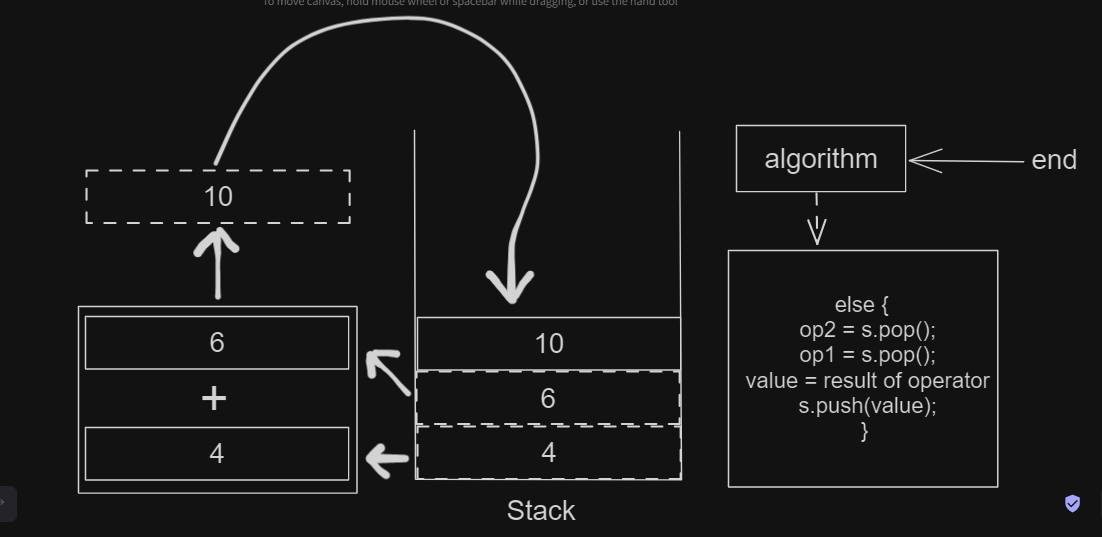

Next input is +, same thing will happen.
Pasted image 20240425124855.png

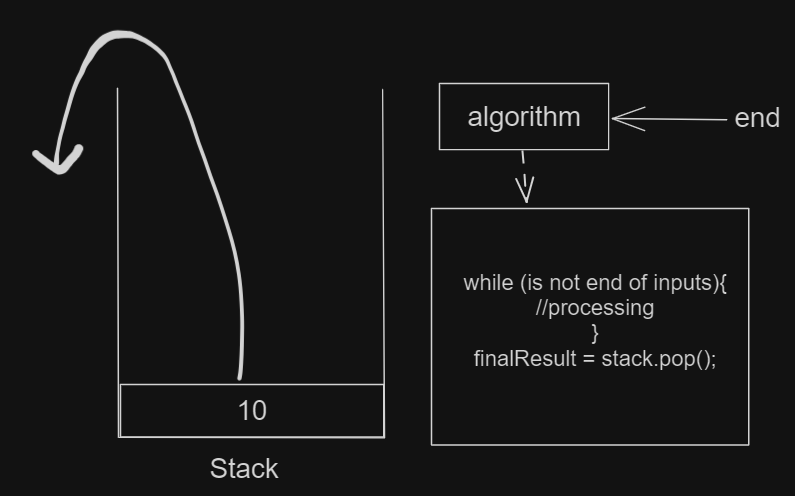

In the end when inputs are finished,
Pasted image 20240425125150.png

Conversion from Infix to Postfix

We have an algorithm which changes the infix form in string, to postfix form.

Stack s;
while( not end of input ) {

    c = next input character;

    if( c is an operand )
        add c to postfix string;

    else {

        while( !s.empty() && prcd(s.top(),c) ){
            op = s.pop();
            add op to the postfix string;
        }

        if (s.empty() || e != ')')
            s.push( c );

        else
            s.pop(); //discard the '('
    }
}

//cleanup in the end
while( !s.empty() ) {
    op = s.pop();
    add op to postfix string;
}

This algorithm is language independent.
Where prcd() is precedence determinant function which takes 2 arguments as inputs and returns true if precedence of 1st argument is higher than or equal to 2nd one.

Additional things to consider:

prcd('(', ')'); //false
prcd(op, ')'); //true if op != '(', false if op != ')'
prcd(op, '('); //false

These are self defined such that ( forces the operands to be pushed on the stack and when ) is encountered, the while loop is processed.

Let us understand it using an example:

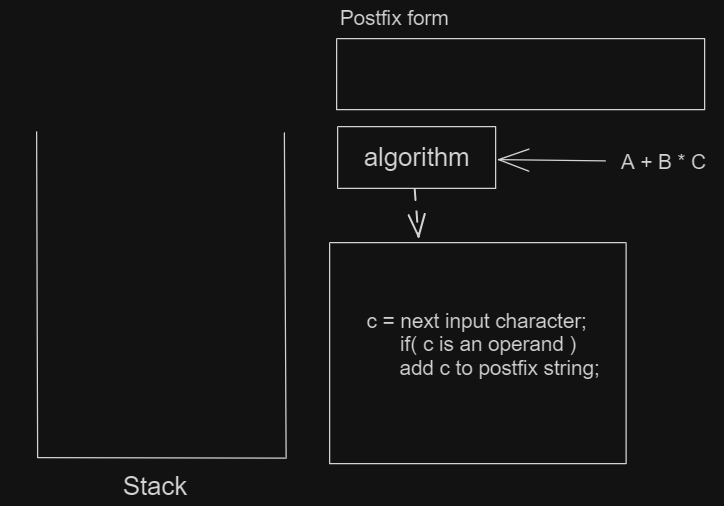

A + B * C
Pasted image 20240425183851.png
Since A is an operand, it is added to postfix form.
Pasted image 20240425184132.png

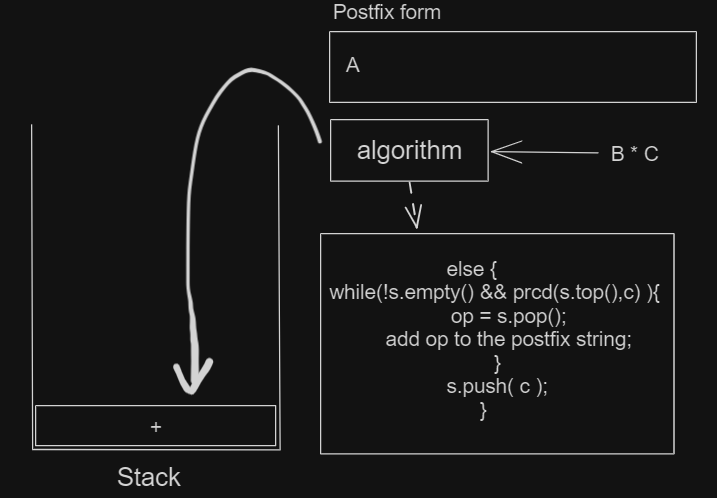

Since the stack was empty, the while loop is skipped and operator is pushed on the stack.
Pasted image 20240425184502.png

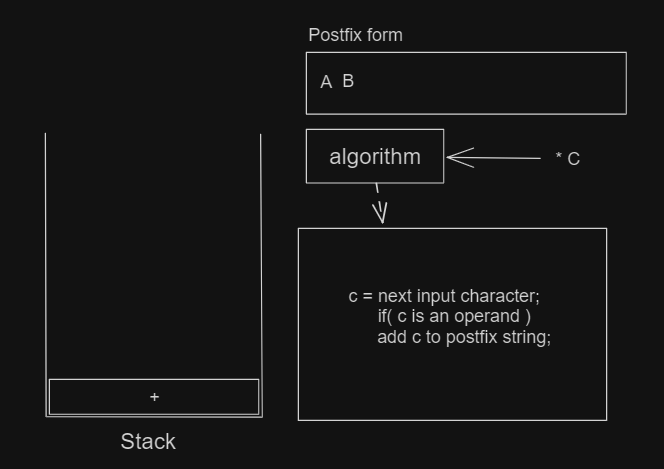

Since the next input (B) is an operand, it is written in the postfix string.
Pasted image 20240608120208.png
Next input character is * which is an operator.
Since the stack is not empty, the while-loop condition is checked.
condition:

while (!s.empty() && prcd(s.top(), c))

Because the prcd() function returns false, the loop is skipped again.
The next statement is checked.

if (s.empty() || e != ')')
    s.push( c );

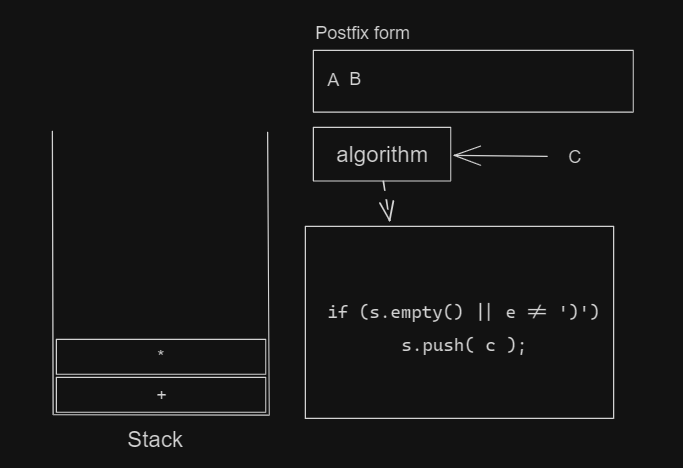

Since * is not ), it is pushed.
Pasted image 20240608121020.png

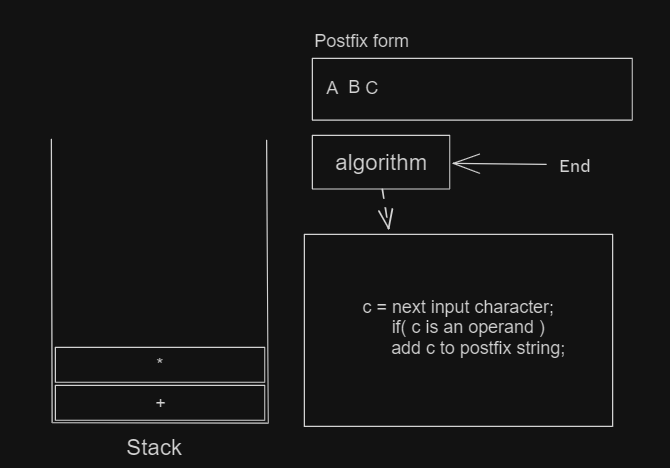

Next input (C) being an operand is written in the postfix string.
Pasted image 20240608121233.png

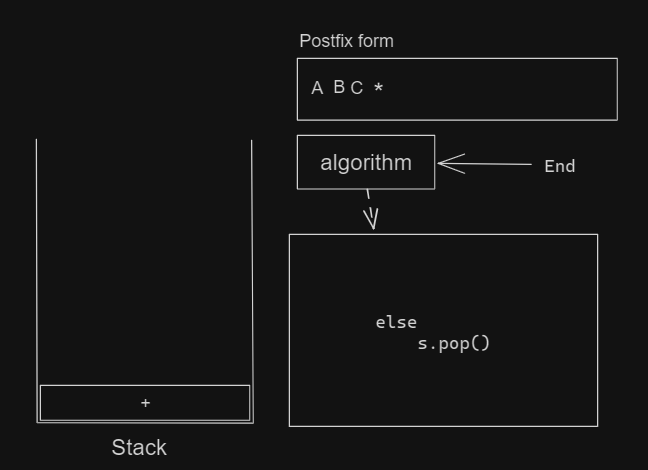

Since there are not inputs left.

else
    s.pop(); //discard the '('

Pasted image 20240608121526.png

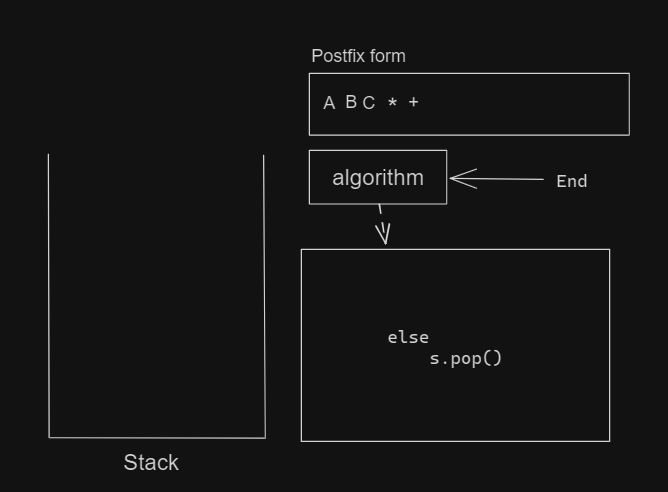

Same thing happens again
Pasted image 20240608121553.png
