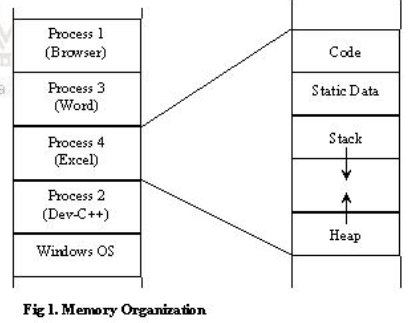

The process contains the code of its executable,
Then it has some static data such as global variables etc.
Then it has a stack which grows downwards and a heap which grows upward. heap is for dynamic-memory-allocation.

When we declare a variable as static, it is moved into the static data portion.
That is the reason when the functions return, those variables do not lose their data.

Queues

This data-structure uses the FIFO (First In First Out) philosophy.

Operation	Description
enqueue(X)	Place X at the rear of the queue.
dequeue()	Remove the front element and return it.
front()	Return front element without removing it.
isEmpty()	Return TRUE if queue is empty, FALSE otherwise

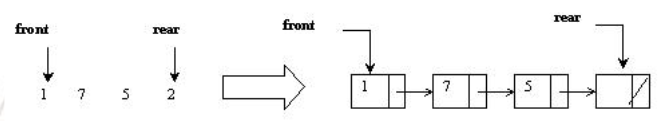

- Removal or Addition of nodes take constant time if done on front or rear. - rear should be used for insertion because it is already in the end. - front should be used when we are removing all nodes (because we can transverse through the list).

//removes the front element and move the front pointer forward
int dequeue() {
    int x = front->get();
    Node* p = front;
    front = front->getNext();
    delete p;
    return x;
}

/* Insert an element in the rear */
void enqueue(int x) {
    Node* newNode = new Node();
    newNode->set(x);
    newNode->setNext(NULL);
    rear->setNext(newNode);
    rear = newNode;
}

/* To retrieve the front element */
int front() {
    return front->get();
}

/* To check if the queue is empty */
int isEmpty() {
    return (front == NULL);
}

Array Implementation

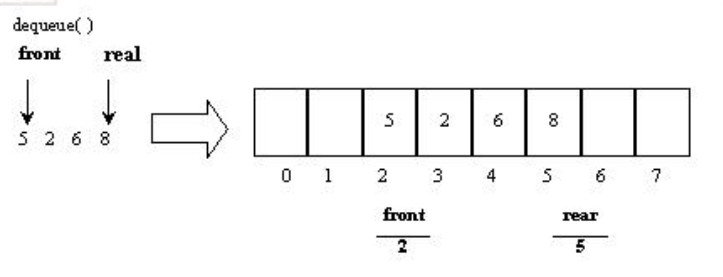

With the array implementation, removal of nodes at the front will leave empty space.

As shifting the array will be costly, we will leave it as it is.

Now if we insert 2 elements, then we run into problem that there is still 2 places (index: 0, 1) remaining to be filled.

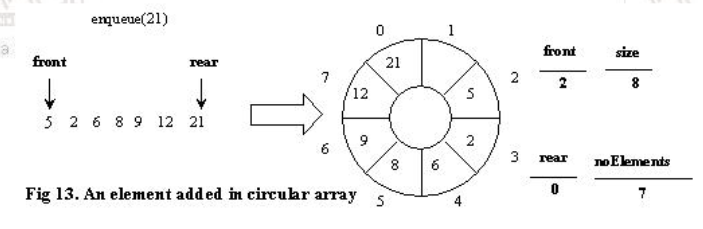

There should be a way to wrap around.
That is why we are going to make it into a circle.

Now we have to keep track of: - Where the front is. - Where the rear is. - What is the size of the array. - Total number of elements stored in the array.

void enqueue(int x) {
    rear = (rear + 1) % size;
    array[rear] = x;
    noElements = noElements + 1;
}

int isFull() {
    return noElements == size;
}

int isEmpty() {
    return noElements == 0;
}

int dequeue() {
    int x = array[front];
    front = (front + 1) % size;
    noElements = noElements - 1;
    return x;
}
