Interaction Diagram

A series of diagrams can be used to describe the dynamic behavior of an object-oriented system.
This is done in terms of message .

Purpose

  • Model interaction between objects
  • Assist in understanding how a system actually works.
  • Verify that the use case description can be supported by the existing classes
  • Identify responsibilities/operations and assign them to classes.

UML provides 2 mechanisms: 1. Sequence Diagrams: They provide time based view 2. Collaboration Diagrams: They provide an organization-based view

Sequence Diagrams

The sequence of object interactions is illustrated by message arranged in a time sequence.
These can be used to easily model: 1. Sequential flows 2. Branching 3. Iteration 4. Recursion 5. Concurrency

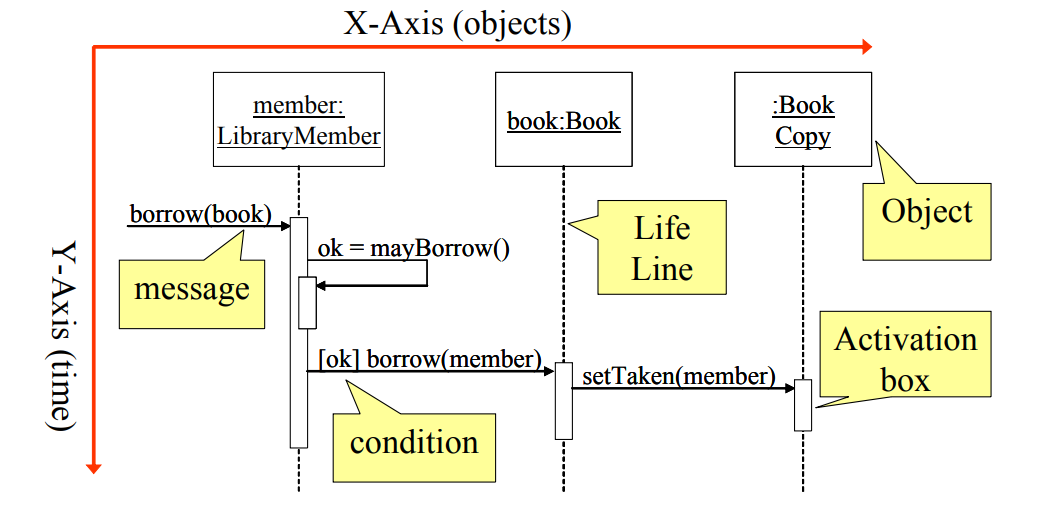

Pasted image 20240723175601.png

In the above diagram, - the X-axis represents the objects as boxes. - Y-axis represents time - dotted line represents the life line of the object - boxes at top of the life line are called activation boxes, they represent for how long a message will be activated.

Syntax

In the objects, [instance name][: class name]
