Dated: 11-11-2024

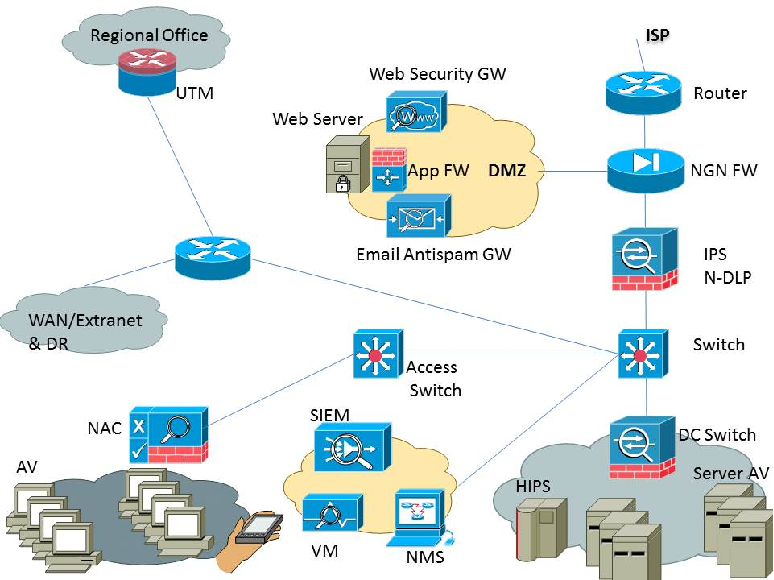

Ch02 what Does the Typical Enterprise it Network Look like

Pasted image 20241111162019.png

  • Edge router
  • NGN FW
  • DMZ
    • Web security GW/Proxy
    • Application security FW
    • Web server
    • Email antispam GW
  • IPS & N-DLP
  • Distribution switch
  • Data center switch & FW
  • Access switch
  • NAC
  • SOC
    • SIEM
    • VM
    • Other SOC tools
  • System AV
  • Server HIPS
  • UTM
  • Mobile device - MDM
