Finite Automata Corresponding to Finite Languages

Consider \(L = \{\Lambda, b, ab, bb\}\) which can be defined as \((\Lambda + b + ab + bb)\) or \((\Lambda + (\Lambda + a + b)b)\)

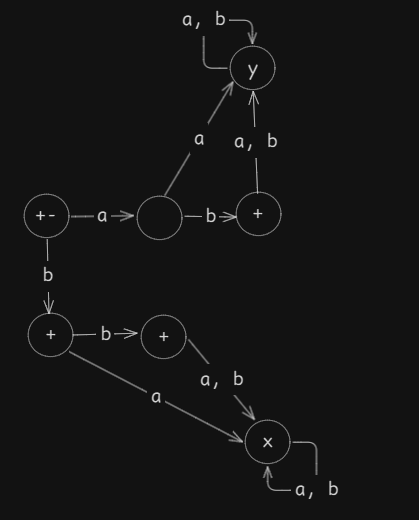

Notice the connection between the transition diagram and the regular expression?1
\(\Lambda\) suggests that the initial state is the final state at the same time.
The right most \(b\) in \((\Lambda + a + b)b\) suggest that every other final state ends by \(b\).
The number of final states is equal to the number of strings in the \(L\).

There are some states here which are \(x\) and \(y\) and are called:

  • Dead States
  • Waste Baskets
  • Davey John Lockers

Example

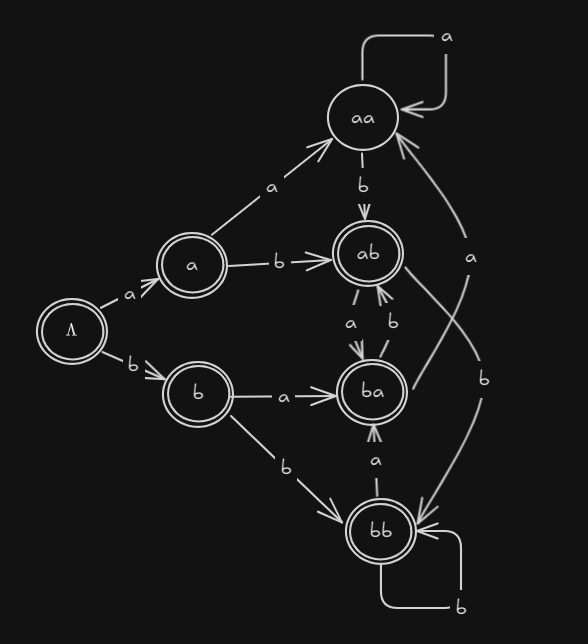

\[L = \{w \in \{a, b\}^* : \text{length}(w) \ge 2, w \text{ ends with neither } aa \text{ or } bb\}\]
\[(a + b)^*(ab + ba)\]


Example

\[L = \{w \in \{a, b\}^* : w \text{ does not ends with } aa\}\]
\[\Lambda + a + b + (a + b)^*(ab + ba + bb)\]


Transition Graph

It is a collection of following:

  • Finite number of states one of which is initial state and some or none being final state.
  • Finite set2 of input letters from which strings3 are formed.
  • Finite set2 of transitions that show how to transition from one state to another, based on substrings of input letters, possibly even null string \(\Lambda\).
