Lecture No. 11

Dated: 26-10-2024

Let's prove the 2nd statement of kleene's theorem.1
To prove that a transition graph2 can represent a regular expression,3 we will develop an algorithm which converts the transition graph2 into generalized transition graph4

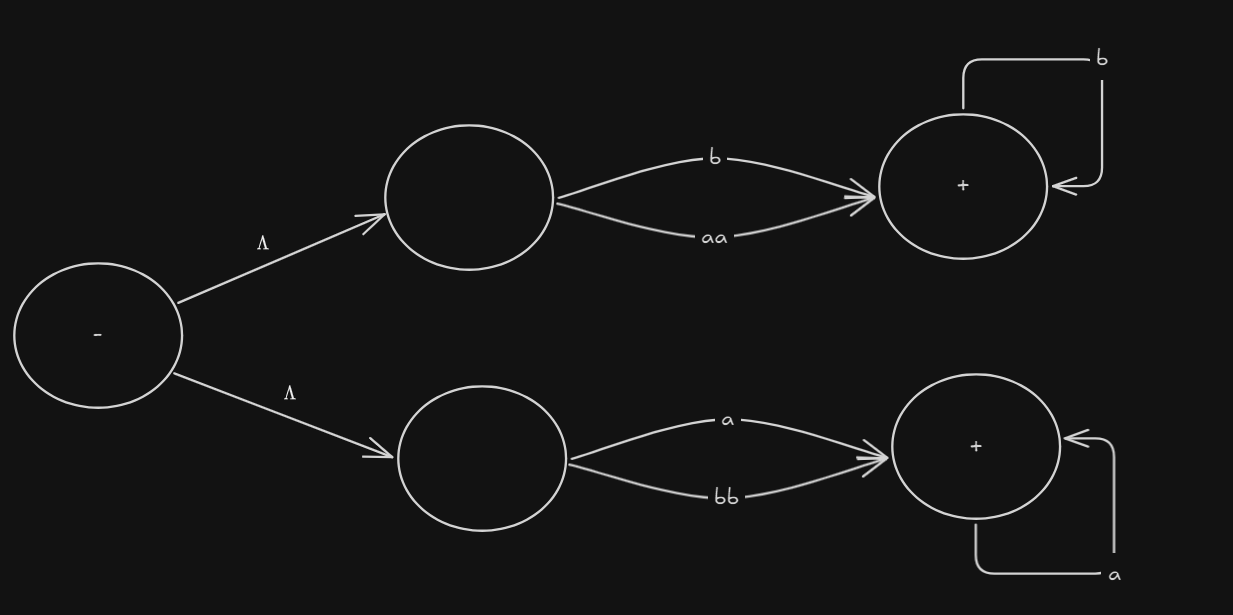

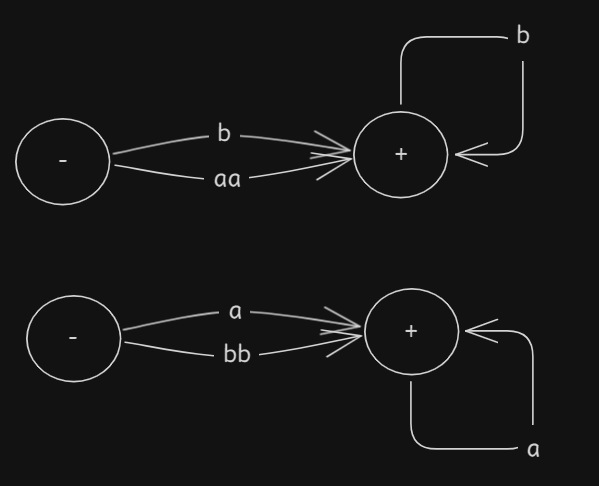

The transition graph4 we want to convert is the following.

Step 1

If a transition graph2 has more than one initial states then make one initial state, connecting the old initial states.

Step 2

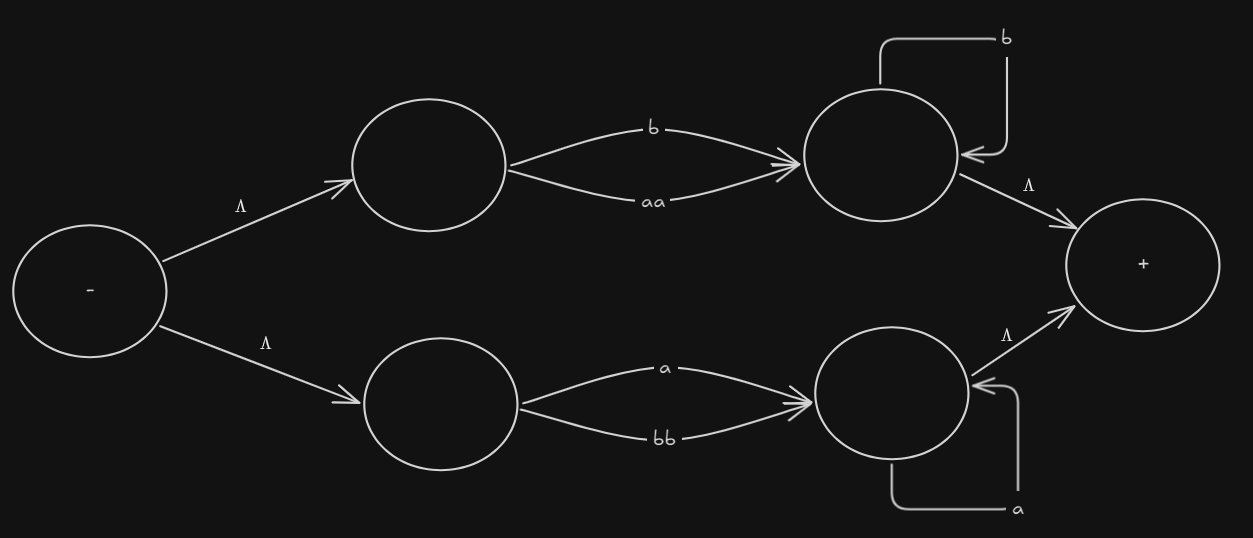

Repeat the step 1 but for final states.

Step 3

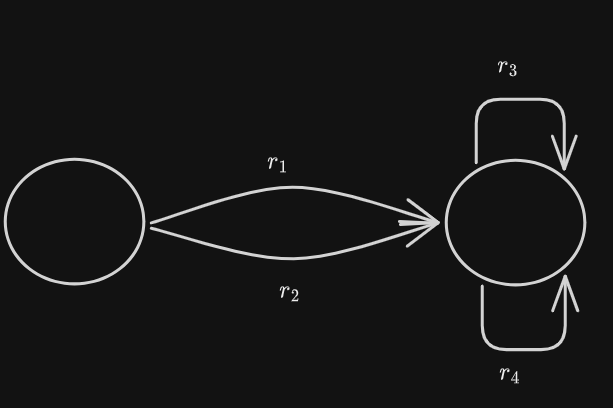

If there are 2 states connected with more than one transition edges, including the loops, convert these edges into one edge.

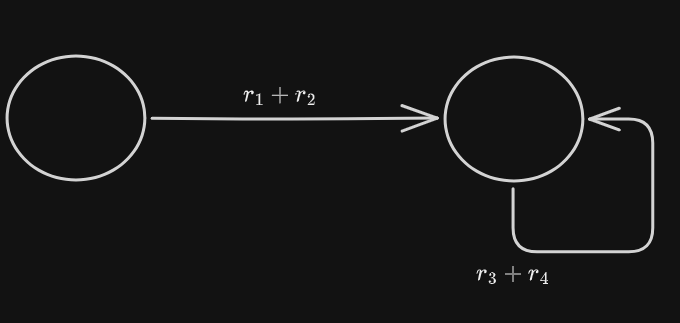

this can be converted into
This works with any number of transition edges.

Step 4

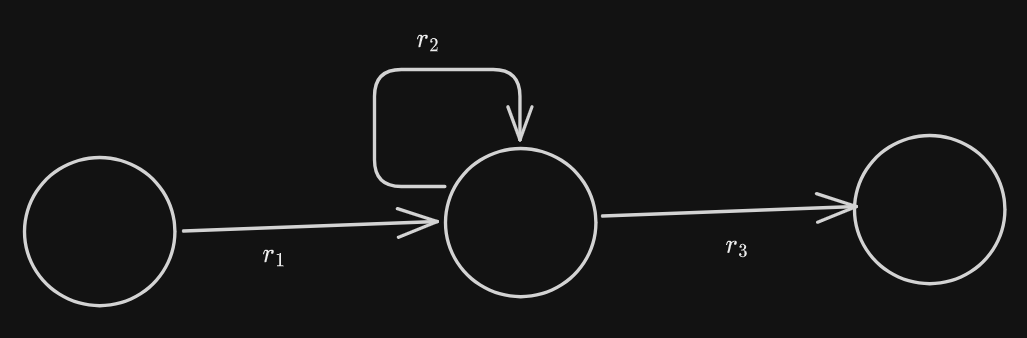

If 3 states are connected in a sequence, then we can skip the middle state.
Connecting the first state with the last one with the transition edge labeled as the concatenation of the regular expressions3 of all the edges.

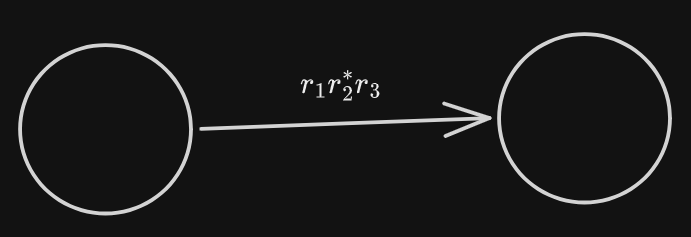

can be converted into

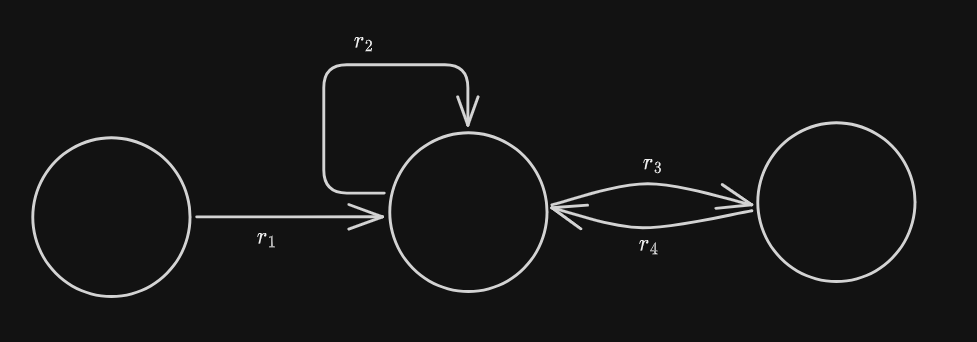

Example

Can be converted into

Example

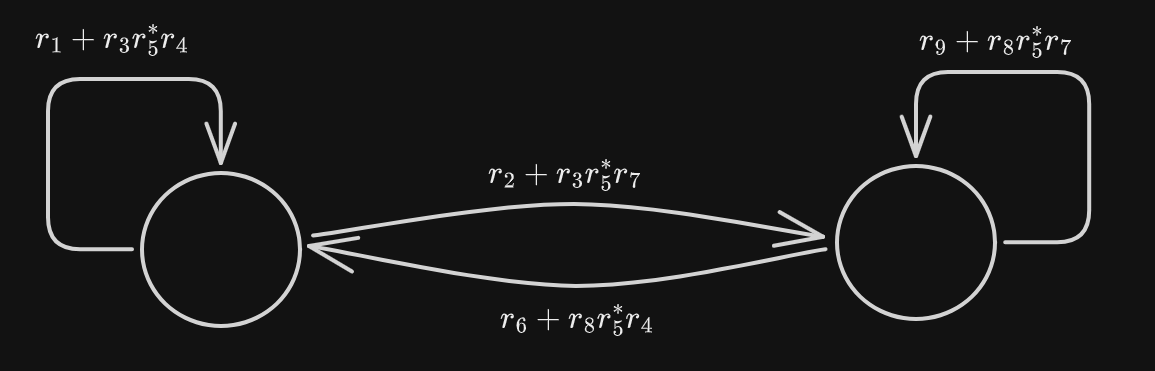

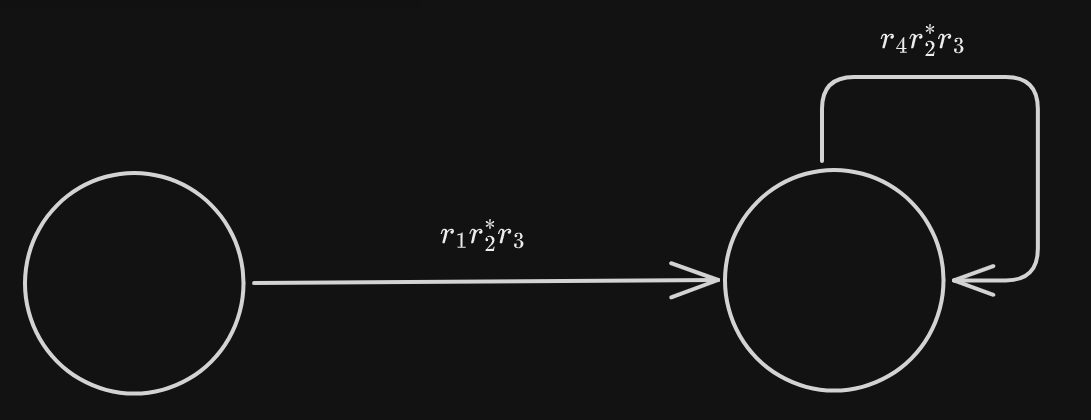

This can be converted into

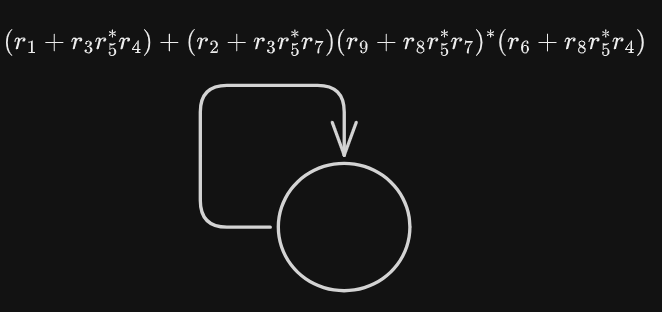

Which can further be converted to
