C1 Introduction
Dated: 07-11-2024
Origin of the Word: Algorithm
It comes from the name of a Muslim author Abu Ja'far Mohammad ibn Musa al Khawarizmi.
He was born in \(18^{\text{th}}\) century at Khwarizm(Kheva), a town south to river Oxus in present Uzbekistan.
Uzbekistan is a Muslim country over 1000 years old, was taken by Russians in 1873.
He moved to Baghdad when he was a child under the Khalifah Al-Mamun during 813 to 833 C.E and died around 840 C.E.
His work was written in a book called al Kitab al-mukhatasar fi hisab al-jabr wa’l-muqabalah (The Compendious Book on Calculation by Completion and Balancing).
The words Algebra and Algorithm came from the title of this book.
Algorithm: Informal Definition
An algorithm is a sequence of computation steps which takes a set1 of inputs and converts them into a set1 of outputs.
Algorithms, Programming
Understanding of algorithms is essential for good understanding of programming.
It is a Mathematical entity which is independent of technology.
In any major programming project, there are 2 major issues
- Macro
- Micro
Macro Issues
Macro issues are subject to software engineering, dealing with how to make the people able to coordinate to make the software.
Micro Issues
Micro issues in programming involve how to best deal with these small critical tasks.
Project success may depend on writing code efficiently.
Often, an inefficient design is chosen first, then optimized with tricks or better hardware, but poor design can't usually be overcome by fine-tuning.
A good design is crucial before implementation.
Many CS courses explore these concepts in specific applications (e.g., compilers, OS, databases, AI, Computer Graphics).
Strong algorithm design knowledge is key to understanding computer science and programming.
Implementation Issues
In this course, algorithms are studied as mathematical models, ignoring implementation details like language and hardware, though these can affect performance.
For instance, quicksort outperforms other sorting methods due to better data locality.
Effective design combines theoretical and practical considerations: first, develop strong mathematical designs, refine based on real-world factors (e.g., data locality), and prototype to optimize performance.
Use tools like profilers to further refine high-cost code sections.
Course in Review
This course covers four sections: mathematical tools for algorithm analysis (asymptotics, summations, recurrences), sorting algorithms as a case study, various algorithmic problems and techniques, and an introduction to NP-completeness, where efficient solutions are unknown but possibly exist.
Analyzing Algorithms
To design effective algorithms, we’ll focus on measuring computational resources like time and memory, though factors like disk access or bandwidth may also matter depending on the application.
Practical algorithm design must also consider debugging, maintenance, and often incomplete specifications.
Simple, adaptable algorithms are ideal, and most covered in this course are straightforward and modifiable for slight variations.
Model of Computation
We aim to analyze algorithms independently of hardware and software specifics.
Algorithms are meant for human understanding, so we can omit low-level details.
To analyze meaningfully, we use a RAM (random access machine) model—an idealized, single-processor machine with infinite memory, where each basic operation (e.g., assignment, arithmetic, array access) takes constant time.
While it doesn’t model all real-world factors, like data locality, the RAM model has been a reliable abstraction of modern computers since the 1960s.
Example: 2 Dimension Maxima
For algorithm analysis, consider choosing a car: you want the fastest and cheapest option, but can't decide which matters more.
A car that is both faster and cheaper than another "dominates" it.
Given a set of cars, our goal is to list only those that aren't dominated by any other.
This illustrates a formal problem model.
Let there be a 2D point \(p\) with coordinates \(p = (p.x, p.y)\)
- A point \(p\) is said to be dominated by point \(q\) if \(p.x \le q.x\) and \(p.y \le q.y\).
- Given a
set1 of points \(P =\{p_1, p_2, \ldots, p_n\}\) in 2D, a point \(p\) is said to bemaximalif it dominates every other point in \(P\).
Each car is represented by a point \((x, y)\), where xxx is the car’s speed and \(y\) is the negation of its price (higher \(y\) means cheaper).
The goal is to maximize both speed and affordability, with the most desirable cars having the highest values for both \(x\) and \(y\).
Maximal points in 2D
Brute-force Algorithm
Consider a set1
Take a point \(p_i\) and compare it with all other points \(p_j\).
If \(p_i\) is not dominated by \(p_j\) then output it.
Maxima(int n, Point p[1 ... n])
for i <- 1 to n
do
maximal <- true
for j <- 1 to n
do
if (i != j) and (P[i].x <= P[j].x) and (P[i].y <= P[j].y)
then maximal <- false; break
if (maximal = true)
then output P[i]
Pseudocode has no formal syntax rules.
Details such as type specifications for procedures and variables, or definitions for data types, can often be omitted if they are clear from context.
The level of detail depends on the intended audience, and unnecessary details should be left out to focus on the main algorithm.
Consistency checks, like ensuring distinct points in a set, are sometimes omitted to keep the pseudocode simple, even though they may be important for implementation.

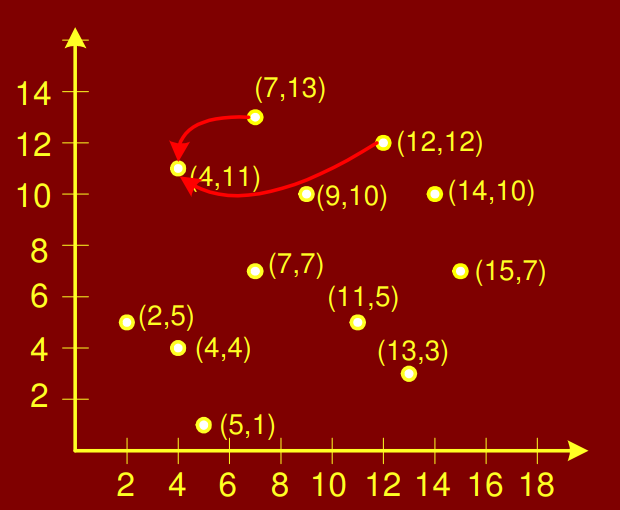

Points that dominate \((4, 11)\)

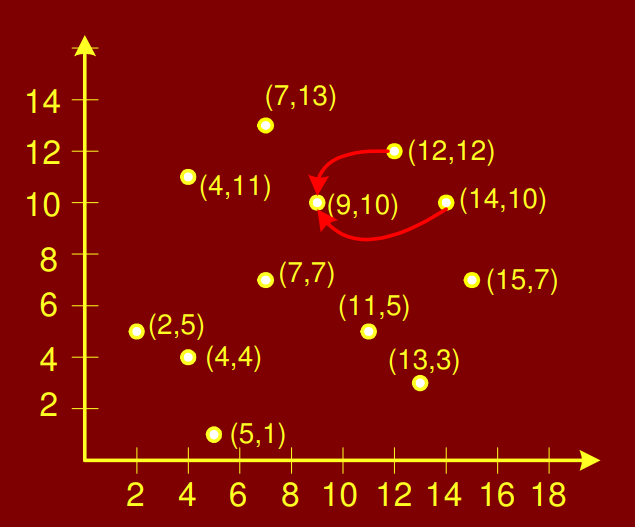

Points that dominate \((9, 10)\)

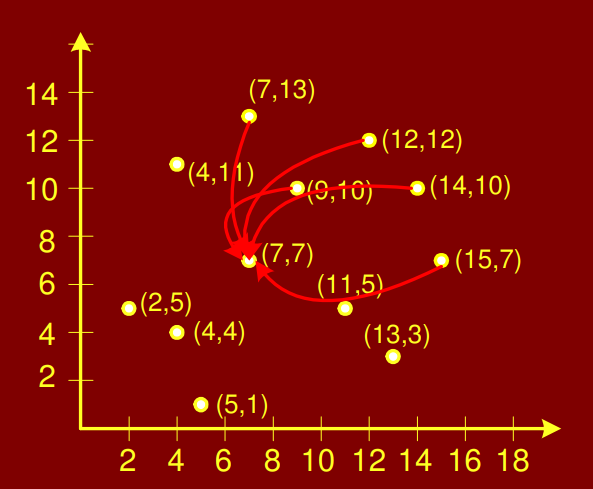

Points that dominate \((7, 7)\)

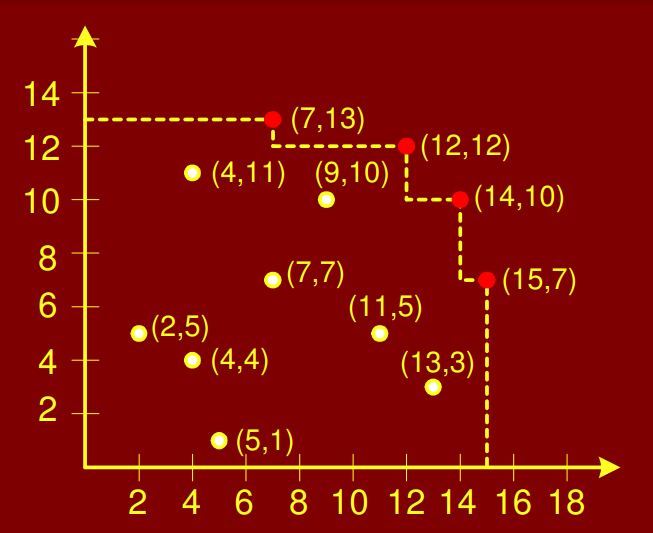

Points that dominate all points
Running time Analysis
Our analysis focuses on measuring execution time and space (memory).
We will ignore technological factors like computer speed, programming language, and compiler optimizations.
To measure the running time of the brute-force 2-D maxima algorithm, we might count executed steps, element accesses, or comparisons.
Running time depends on input size and structure, so different inputs of the same size may have varying running times.
We use two criteria for measuring running time: worst-case time and average-case time.
Worst case time
It is the maximum running time over all legal inputs of size \(n\).
Let \(I\) denote an input instance and let \(|I|\) denote its length, and let \(T(I)\) denote the running time of an algorithm on input \(I\).
Then
Average case time
It is the average running time over all inputs of size \(n\).
Let \(p(I)\) denote the probability of seeing this input.
Then the average case time is the weighted sum of the running times with weights being the probabilities
Analysis of the Brute-force Maxima Algorithm
We usually focus on worst-case time, as average-case time is harder to compute due to the difficulty of specifying input probability distributions.
Worst-case time gives an upper bound on the running time.
Assume the input size is \(n\), and we count the number of times any element of \(P\) is accessed.
The outer loop runs \(n\) times, and for each iteration, the inner loop also runs \(n\) times.
The if-statement makes four accesses to \(P\), and the output statement makes two accesses for each maximal point, which occurs for each iteration in the worst case.
Maxima(int n, Point p[1 ... n])
for i <- 1 to n // n times
do
maximal <- true
for j <- 1 to n // n times
do
if (i != j) and (P[i].x <= P[j].x) and (P[i].y <= P[j].y) // 4 accesses
then maximal <- false; break
if (maximal = true)
then output P[i].x, P[i].y // 2 accesses
Thus we might express the worst-case running time as a pair of nested summations, one for the \(i\)-loop and the other for the \(j\)-loop
For small numbers of \(n\), it is fast enough but due to the \(n^2\) term, it becomes an issue for running time.
The worse time is
This is called asymptotic growth rate of the function2 which we will discuss later.
Arithmetic Series
Quadratic Series
Geometric Series
If \(0 < x < 1\) then it is \(\Theta(1)\), otherwise if it is \(x > 1\) then it is \(\Theta(x^n)\)
Harmonic Series
Analysis: a Harder Example
for i <- 1 to n
do
for j <- 1 to 2i
do
k = j ...
while (k >= 0)
do k = k - 1 ...
Inner Loop
Consider the inner loop
while (k >= 0)
do k = k - 1
It is executed for \(k = j, j - 1, j - 2, \ldots, 0\)
Time spent inside the while loop is constant.
Let \(I()\) be the time spent inside the while loop, then
Middle Loop
Consider the middle loop
for j <- 1 to 2i
do
Let \(M()\) be the time
Outer Loop
Consider the outer loop
for i <- 1 to n
do
2-dimension Maxima Revisited
We used brute force algorithm but it uses no intelligence in pruning out decisions.
The dominance relation is transitive, meaning if \(p_j\) dominates \(p_i\) and \(p_k\) dominates \(p_j\), then \(p_k\) ultimately dominates \(p_i\).
Therefore, \(p_i\) is not needed after we find any point which dominates it.
Plane-sweep Algorithm
To improve running time, we use a plane sweep: sweeping a vertical line across the plane from left to right.
We start by sorting points by x-coordinate.
As we move the sweep line from left to right, we update the list of maximal points to the left.
Points dominated by others appear at the end, so we scan the list from left to right, eliminating points with a lower y-coordinate.
A stack can efficiently store and update maximal points, with the top of the stack holding the point with the highest x-coordinate.
Sweep line at \((2, 5)\)

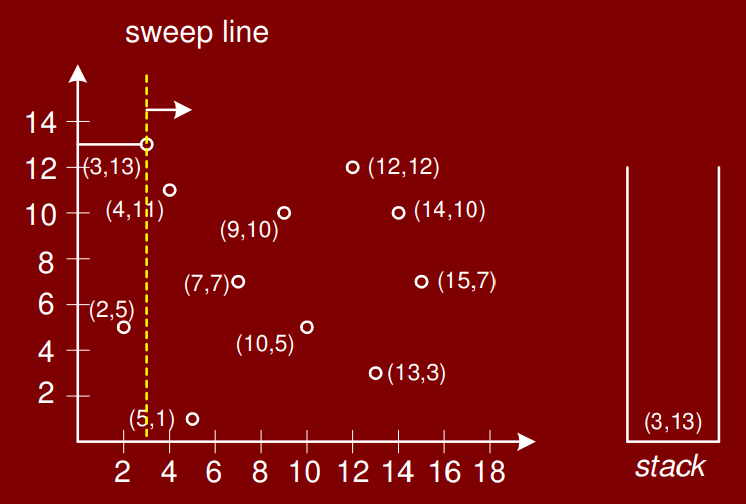

Sweep line at \((3, 13)\)

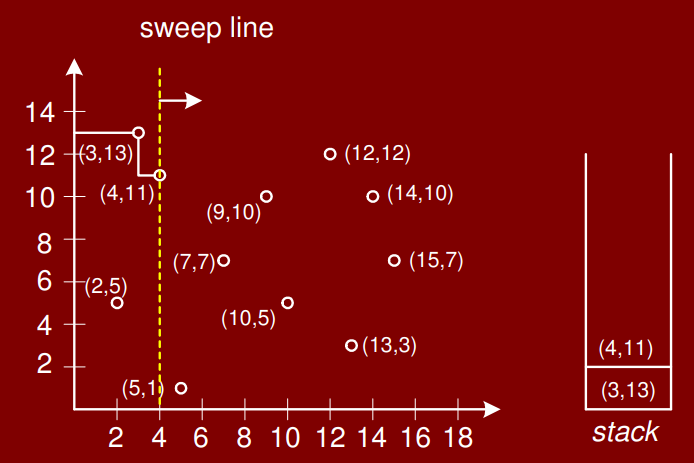

Sweep line at \((4, 11)\)

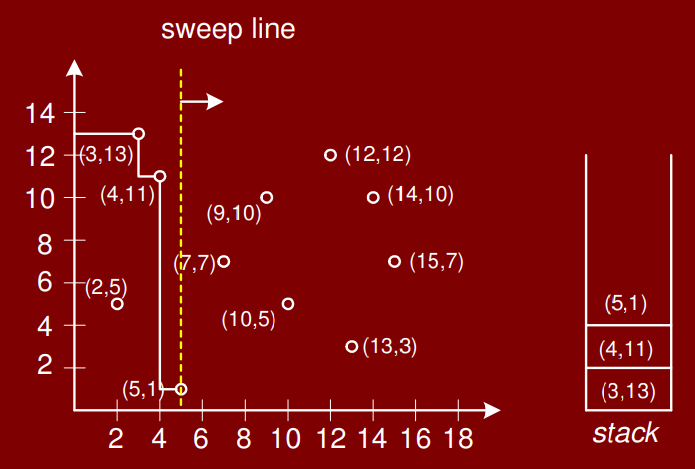

Sweep line at \((5, 1)\)

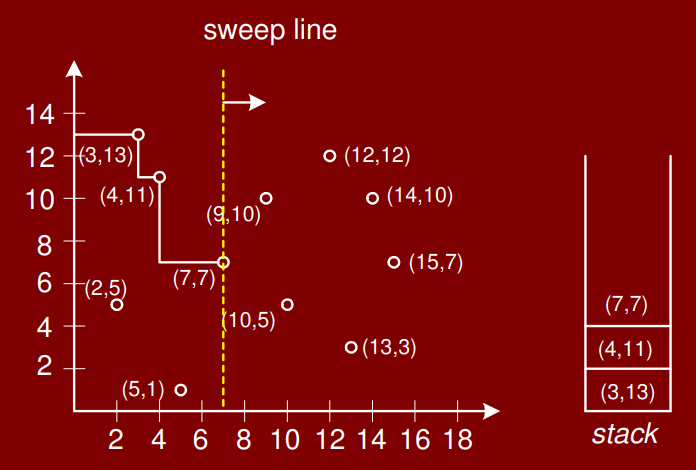

Sweep line at \((7, 7)\)

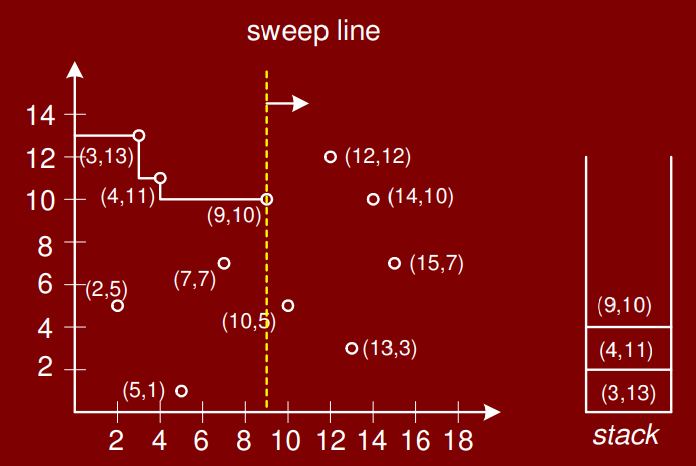

Sweep line at \((9, 10)\)

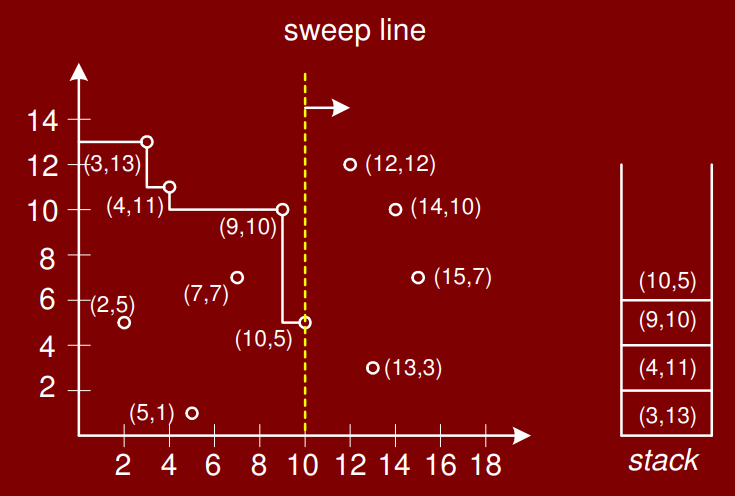

Sweep line at \((10, 5)\)

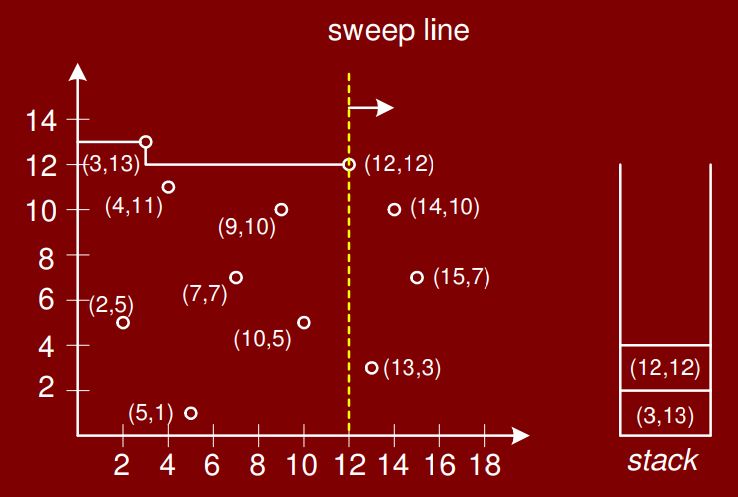

Sweep line at \((12, 12)\)

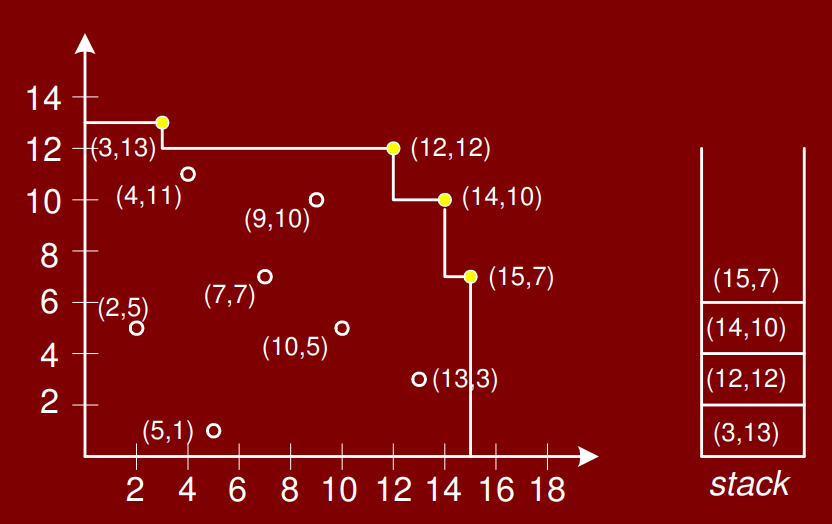

The final maximal set
Plane-Sweep-Maxima(n, P[1 .. n])
sort P in ascending order by x
stack s;
for i <- 1 to n
do
while (s.notEmpty() & s.top().y <= P[i].y)
do s.pop();
s.push(P[i]);
output the contents of stack s;
Analysis of Plane-sweep Algorithm
Sorting takes \(\Theta (n \log n)\).
The for-loop runs \(n\) times, and the inner while-loop seemingly runs \(n − 1\) times, suggesting \(\Theta(n^2)\).
However, the while-loop only runs \(n\) times in total, as each element is pushed and popped from the stack exactly once.
Thus, the for-loop and while-loop together run \(\Theta(n)\) times.
With sorting, the total runtime of the plane-sweep algorithm is \(\Theta(n \log n)\).
Comparison of Brute-force and Plane Sweep Algorithms
| \(n\) | \(\log n\) | \(\frac n {\log n}\) |
|---|---|---|
| 100 | 7 | 15 |
| 1000 | 10 | 100 |
| 10000 | 13 | 752 |
| 100000 | 17 | 6021 |
| 1000000 | 20 | 50171 |
For \(n = 1,000,000\), if plane-sweep takes 1 second, brute-force takes 14 hours.
This highlights the importance of asymptotic analysis in choosing efficient algorithms for large inputs, where running times become a critical factor.
Efficient design ensures that users can handle large inputs within a reasonable timeframe.
