C5 Linear time Sorting

Dated: 13-01-2025

Counting Sort

Imagine 3 arrays:

• \(A[1 .. n]\) containing the initial inputs.
• \(B[1 .. n]\) containing the sorted outputs.
• \(C[1 .. k]\) containing the ranks such that \(C[x]\) is the rank of \(x\) in \(A\) where \(x \in [1 .. k]\).

The \(C[1 .. k]\) is constructed in following way:

• The \(C[1 .. k]\) is initialized with \(0\).
• We run across \(A\) using index \(j \in [1 .. n]\).
• Increment each \(C[A[j]]\).

Now index of each entry in \(C\) represents the value in \(A\) and the entry represents the rank of that value.

• Run across \(C\) and do \(C[i] = C[i] + C[i - 1]\).

Structure of \(C\)

Consider an example where

\[C = \{2, 2, 2, 2, 1, 0, 2\}\]

\[\rightarrow\]

\[C = \{2, 4, 6, 8, 9, 9, 11\}\]

The algorithm works as follows: - Run across \(A\) using index \(j \in [1 .. n]\) backwards, let each value be \(x\). - \(C[x]\) is the indexed cell within \(B\) which we want to select. - \(x\) is the value placed inside the selected cell. - Decrement \(C[x]\) after placing \(x\) in \(B[C[x]]\).

counting_sort(array A, array B, int k) {
    for i <- 1 to k
    do C[i] <- 0 // k times
    for j <- 1 to length[A]
    do C[A[j]] <- C[A[j]] + 1 // n times
    // C[i] now contains the number of elements = i
    for i <- 2 to k
    do C[i] <- C[i] + C[i - 1] // k times
    // C[i] now contains the number of elements <= i
    for j <- length[A] downto 1
    do B[A[j]] <- A[j]
        C[A[j]] <- C[A[j]] - 1 // n times
}

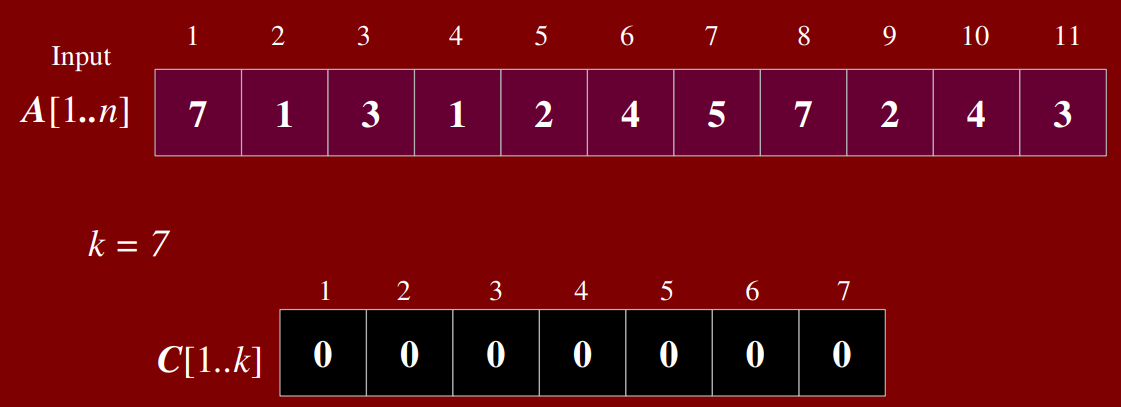

Initial A and C array

A[1] = 7 processed

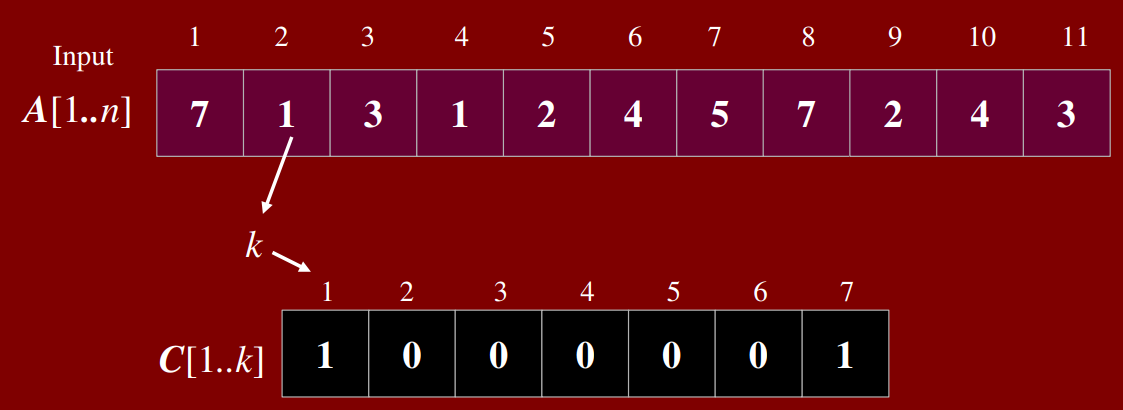

A[2] = 1 processed

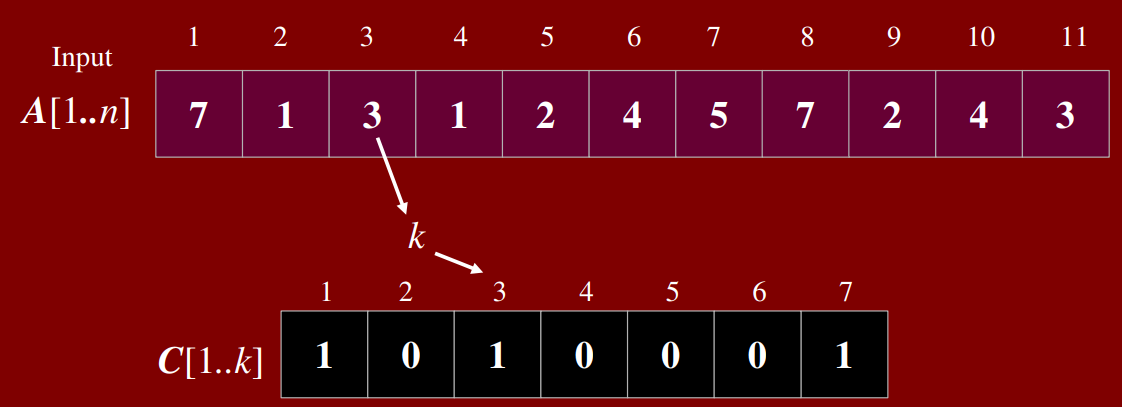

A[3] = 3 processed

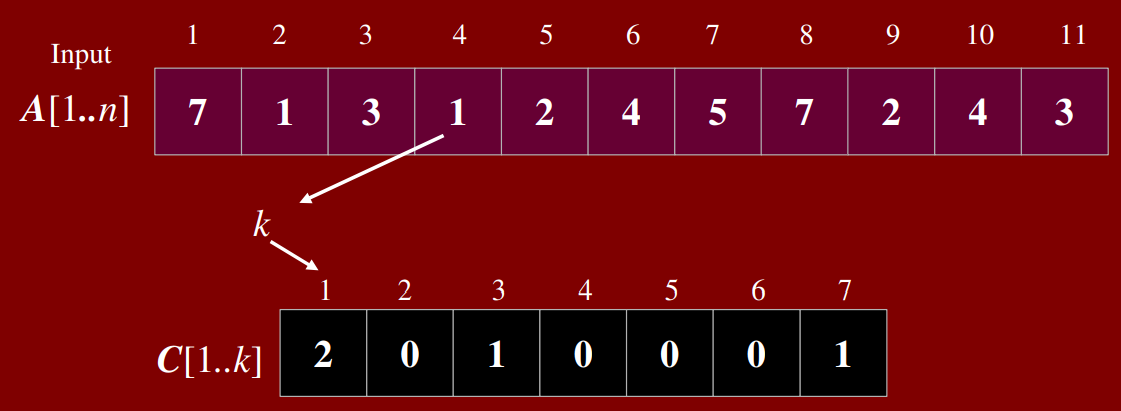

A[4] = 1 processed

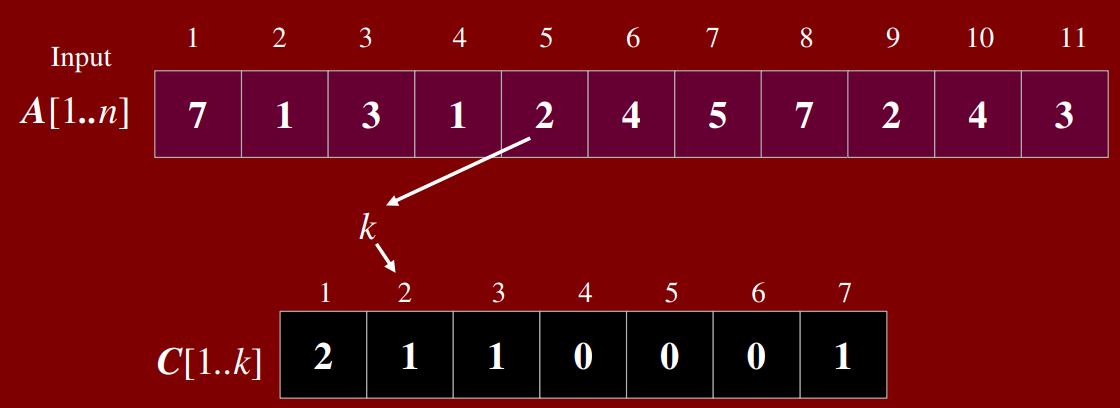

A[5] = 2 processed

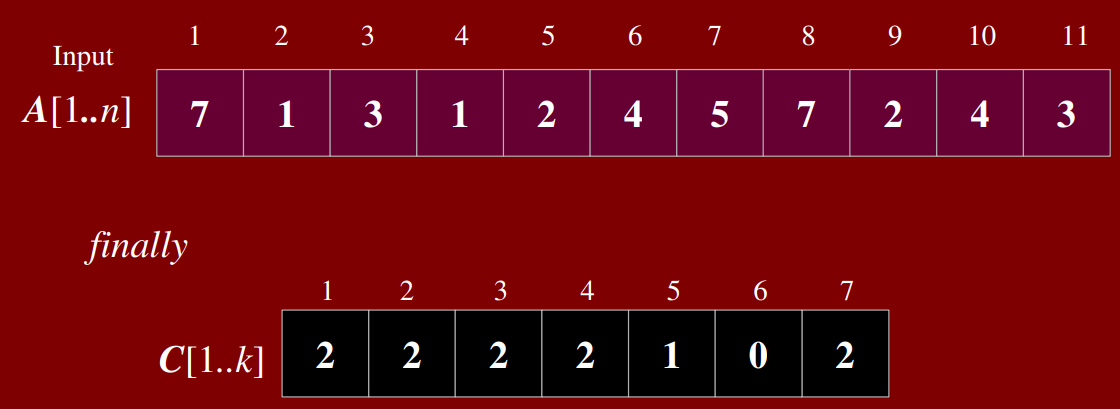

C now contains count of elements of A

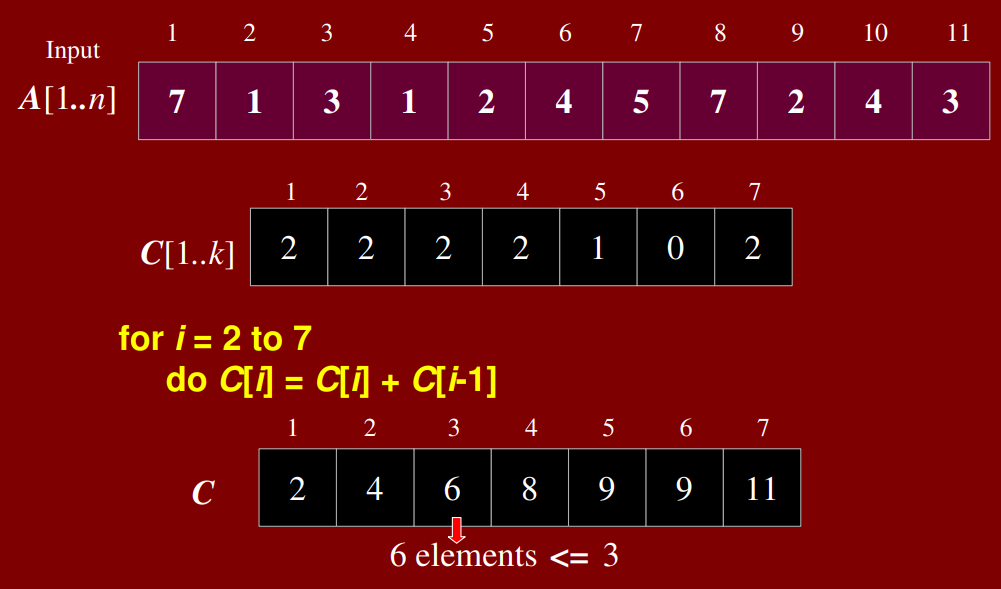

C set to rank each number of A

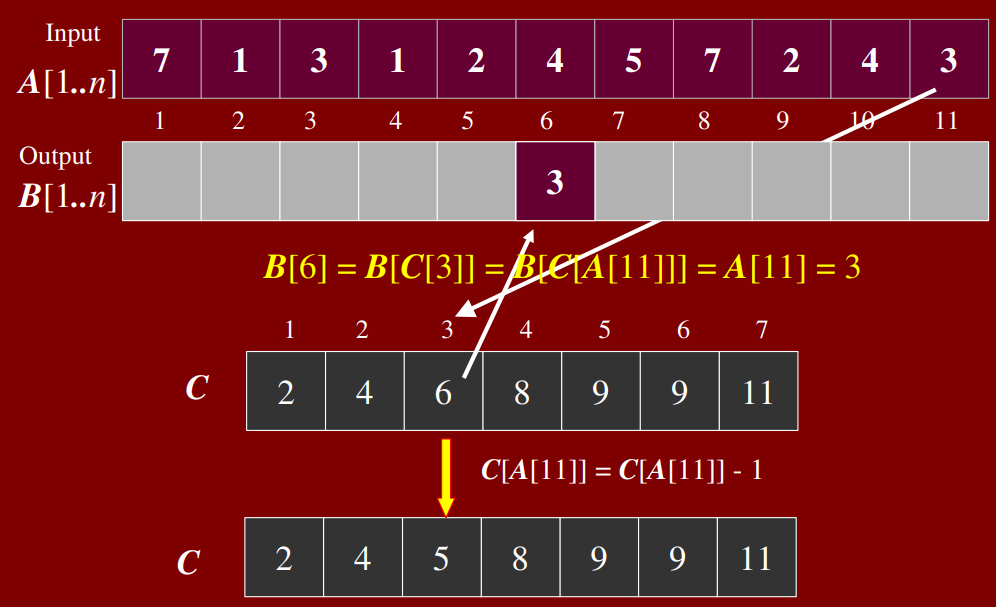

A[11] placed in output of B

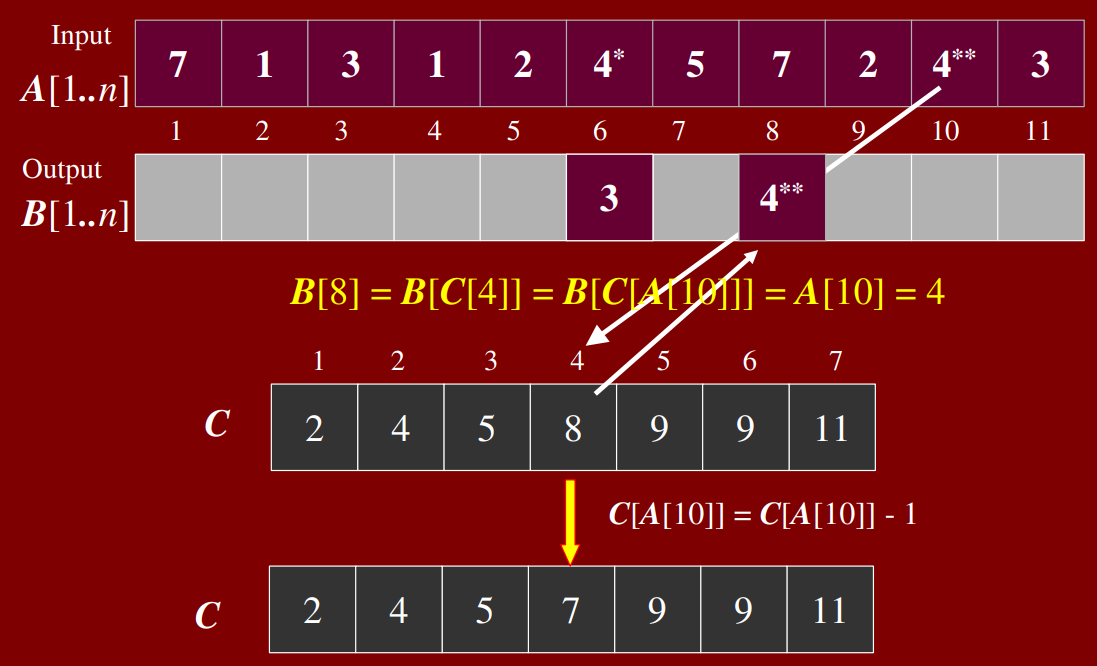

A[10] placed in output array B

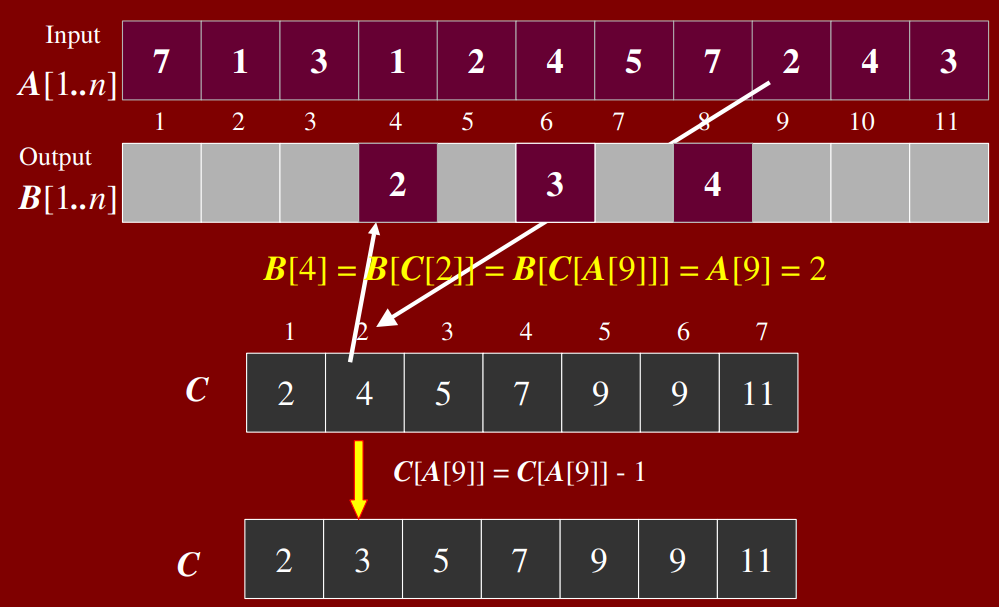

A[9] placed in output array B

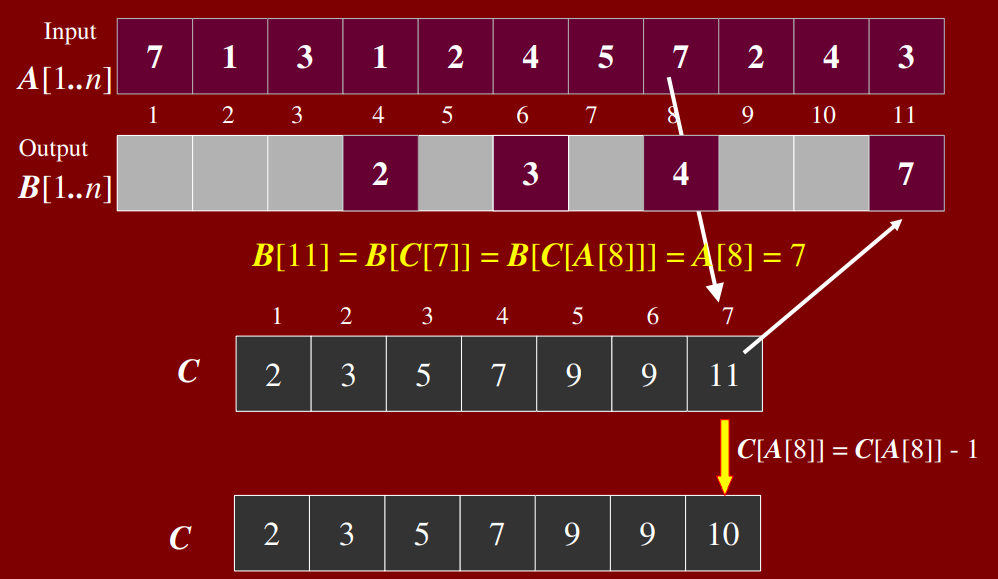

A[8] placed in output array B

A[7] placed in output array B

A[6] placed in output array B

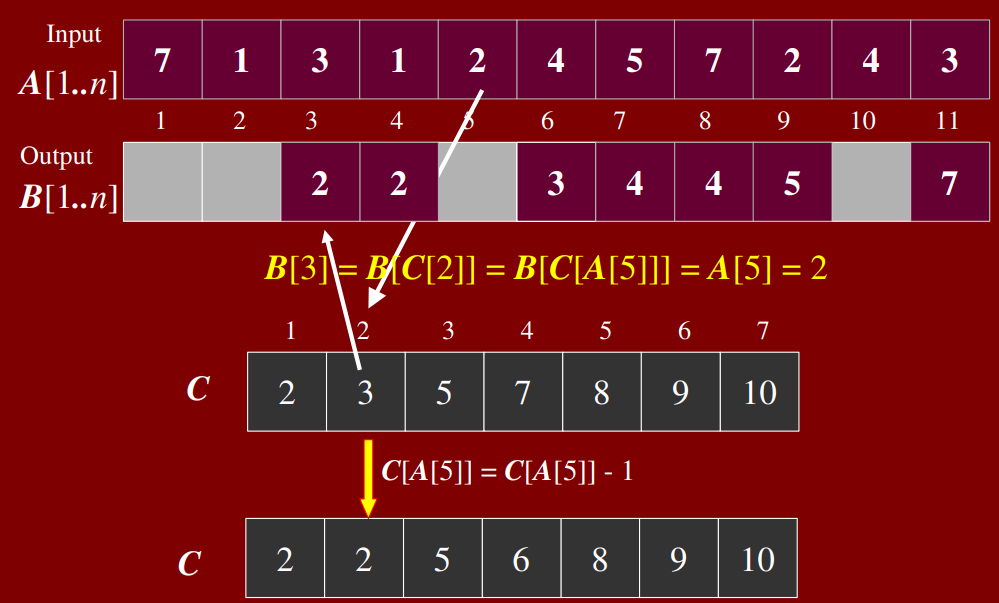

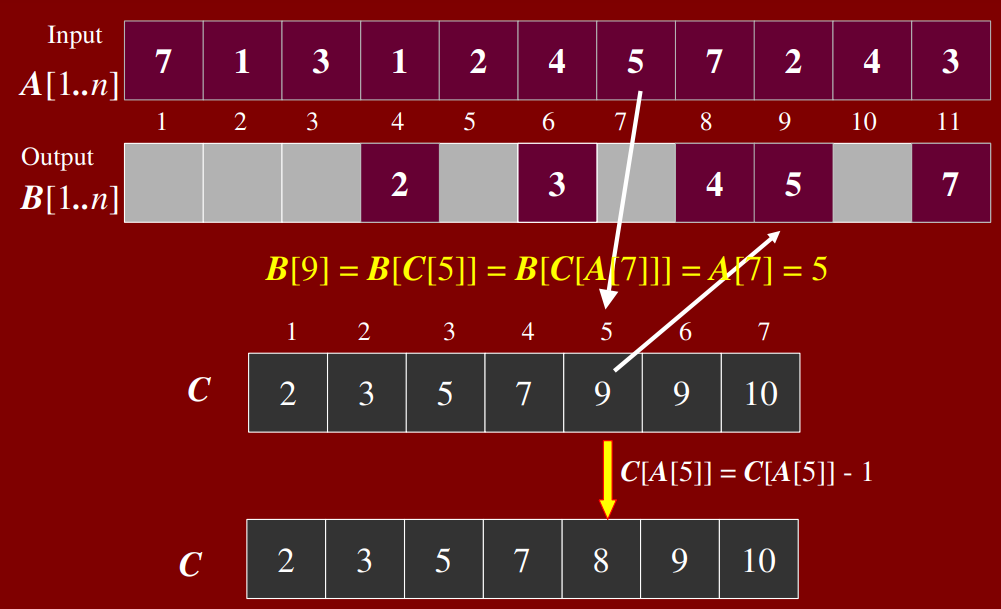

A[5] placed in output array B

A[4] placed in output array B

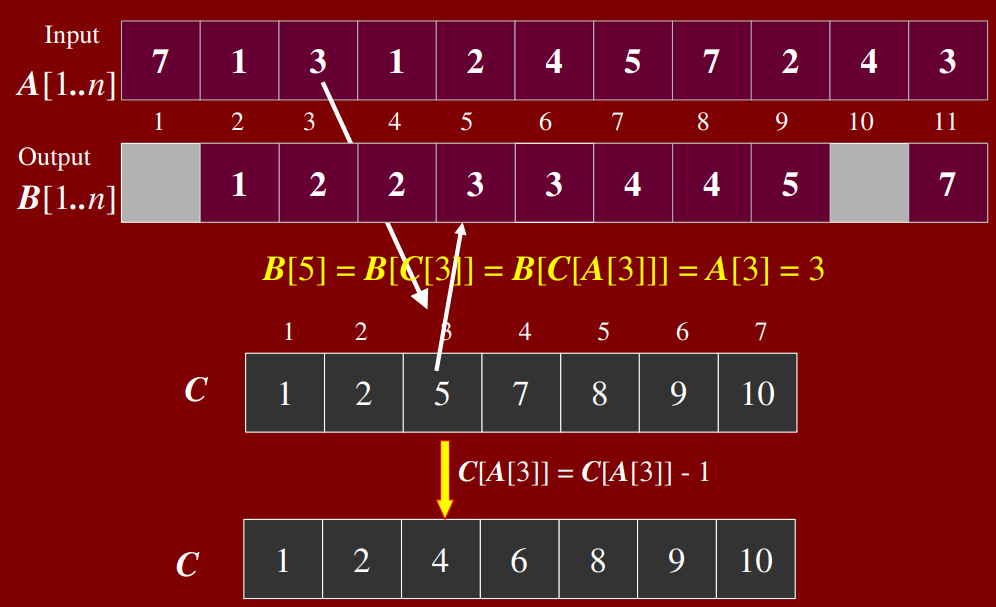

A[3] placed in output array B

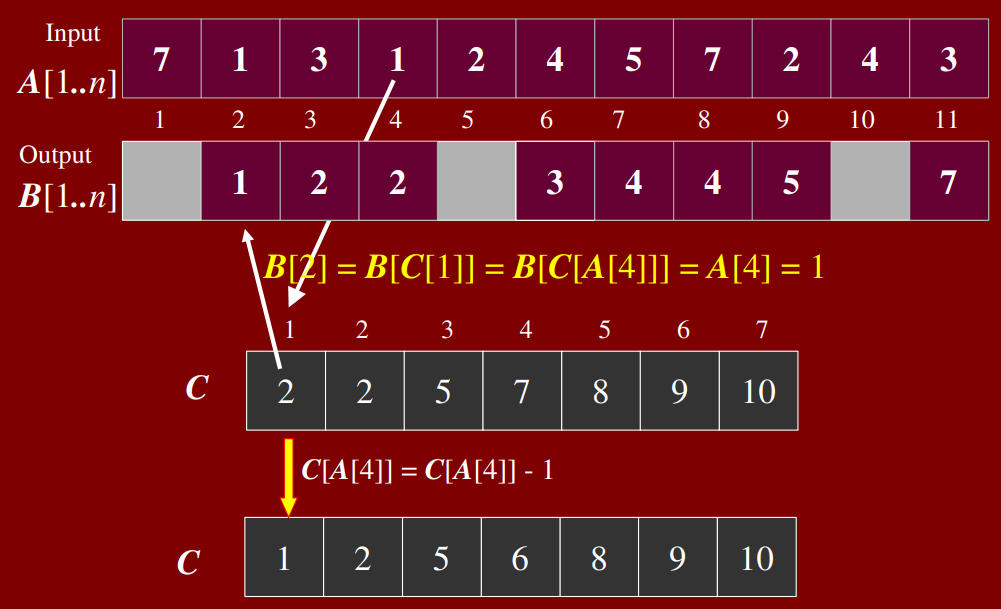

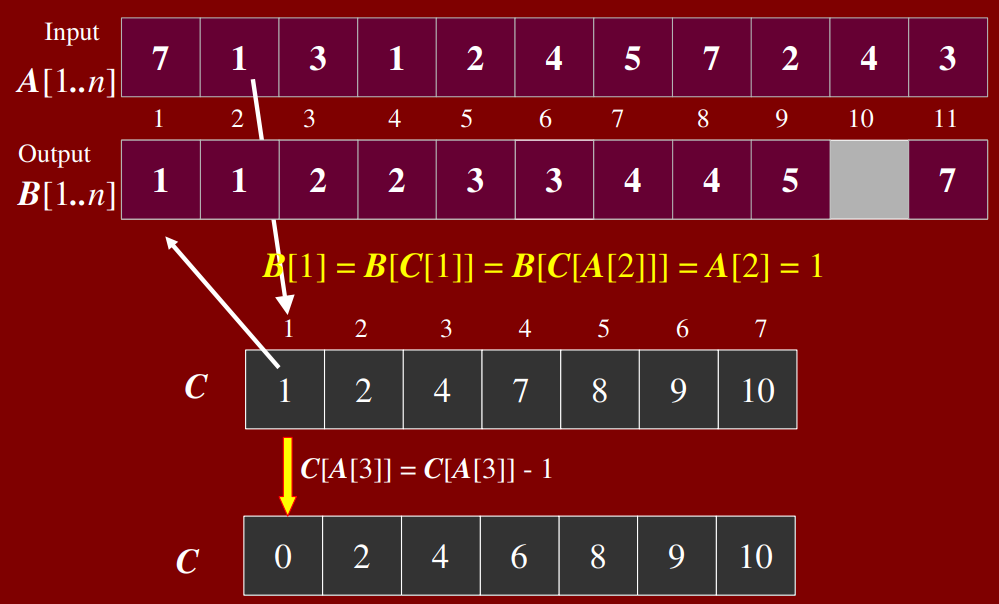

A[2] placed in output array B

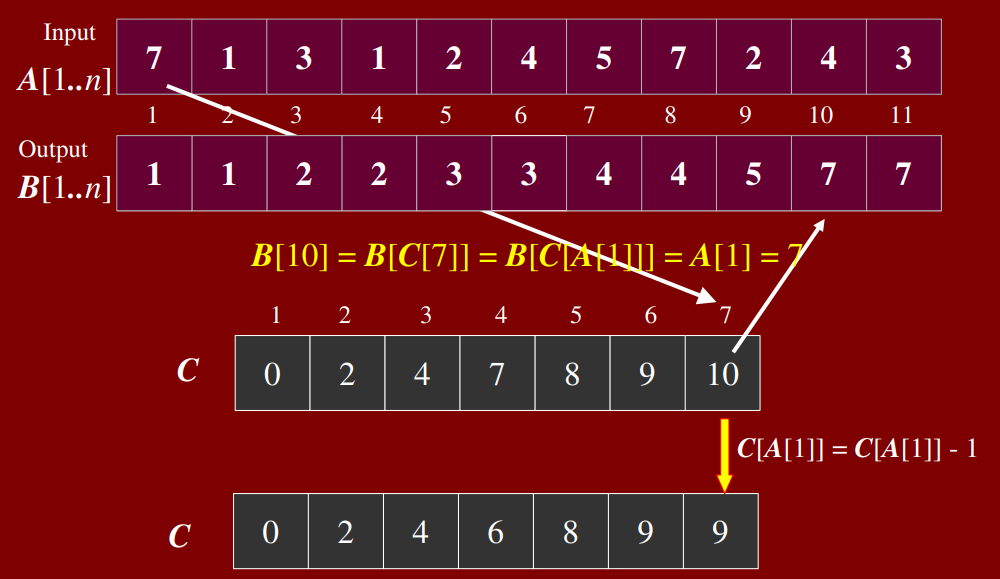

B now contains the final sorted data

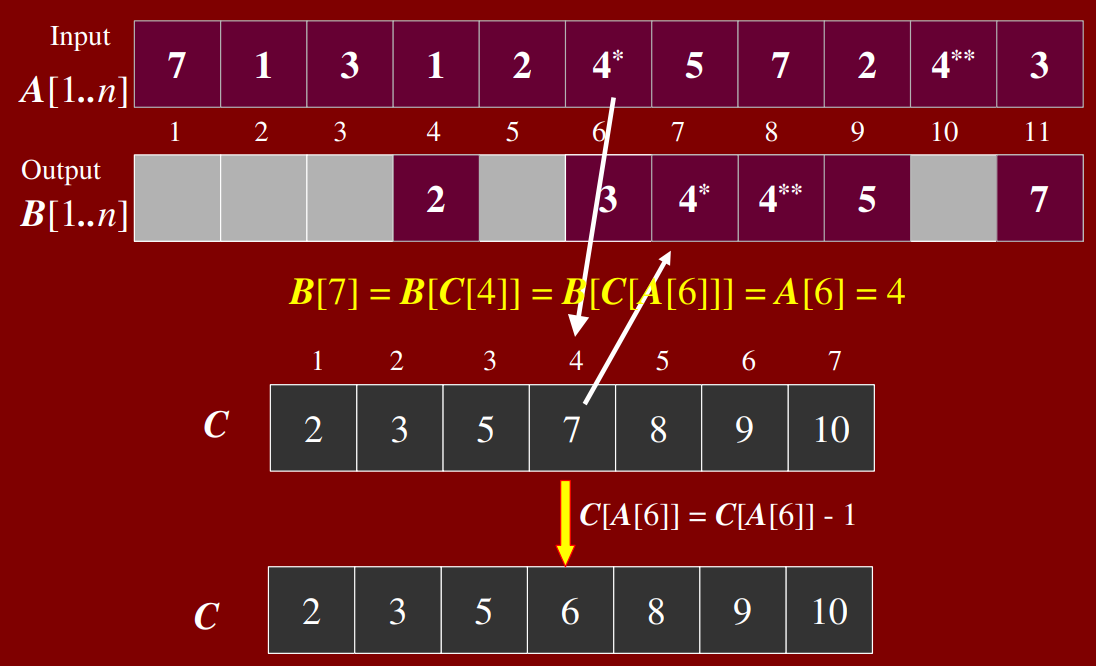

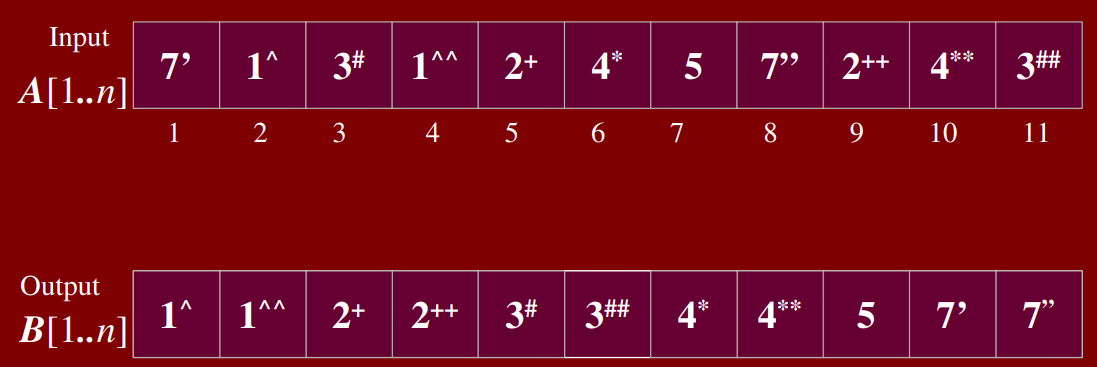

Counting Sort is not in-place¹ but is stable.¹ Here is an illustration.

4 at right side within \(A\) is also sorted in right side in \(B\).

4 at left side within \(A\) is also sorted in left side in \(B\).

Stability¹ of counting sort.

Bucket or Bin Sort

BucketSort(array A, int n, int M) {
// Pre-condition: for 1 <= i <= n, 0 <= a[i] < M
// Mark all the bins empty
for i <- 1 to M
do bin[i] <- Empty
for i <- 1 to n
do bin[A[i]] <- A[i]
}

If there are \(n\) keys then placing all the keys in appropriate bins is going to take \(O(n)\) operations.
If there were \(m\) bins then we would also need to figure out if there are elements in each bin or not.
This would take \(O(m)\) operations.
So the whole algorithm's time is:

\[T(n) = c_1n + c_2m\]

If \(m \le n\) then the running time is \(O(n)\).
If \(m >> n\) then the running time is \(O(m)\).

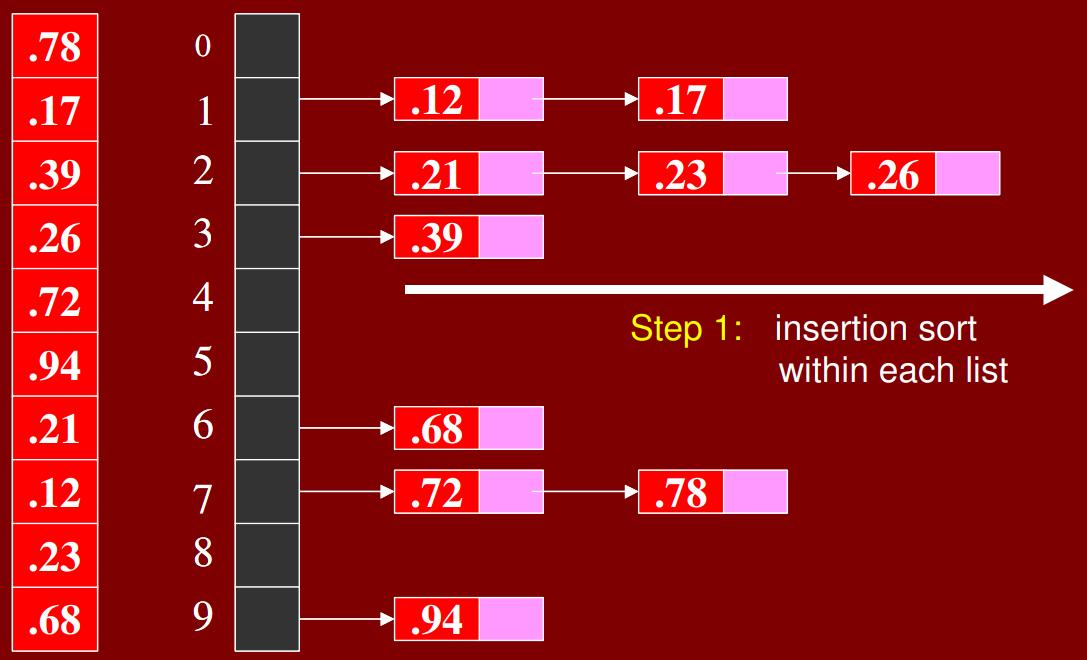

Placing keys in bins in sorted order

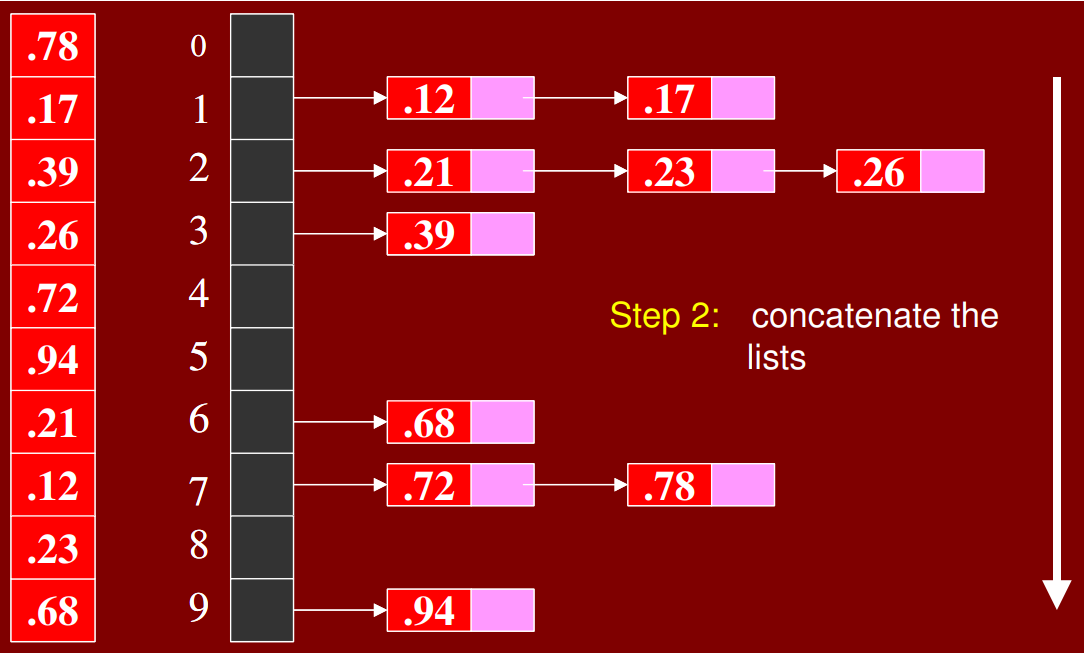

Concatenate the lists

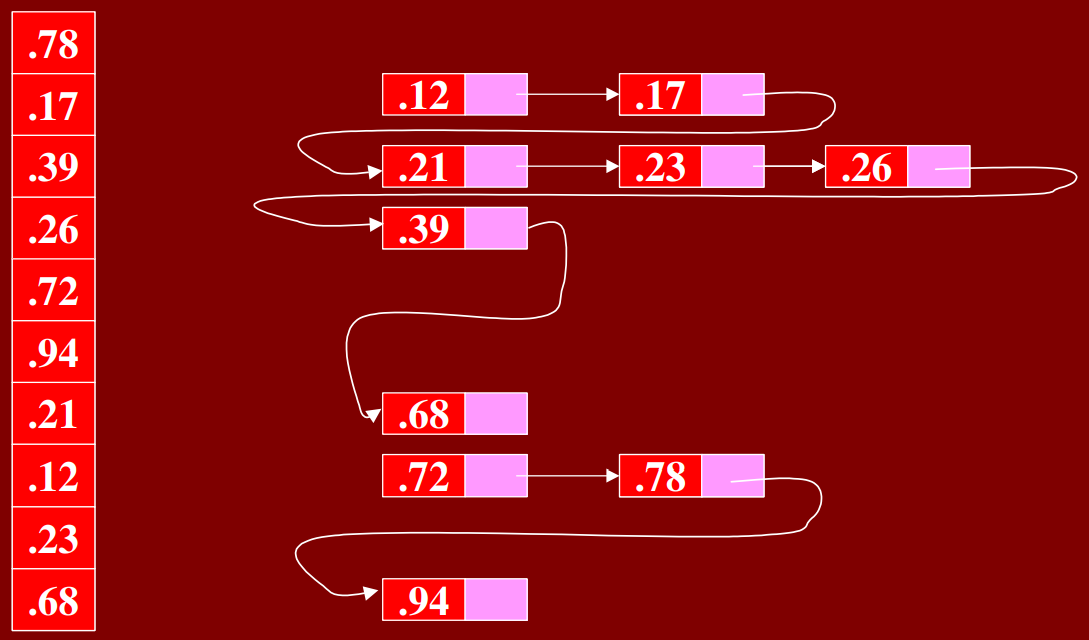

Final sorted sequence

Radix Sort

The limitation with counting sort is that it works great if \(k\) is small but if \(k\) is in millions then the rank would also be in millions but radix sort provides a nice work around.

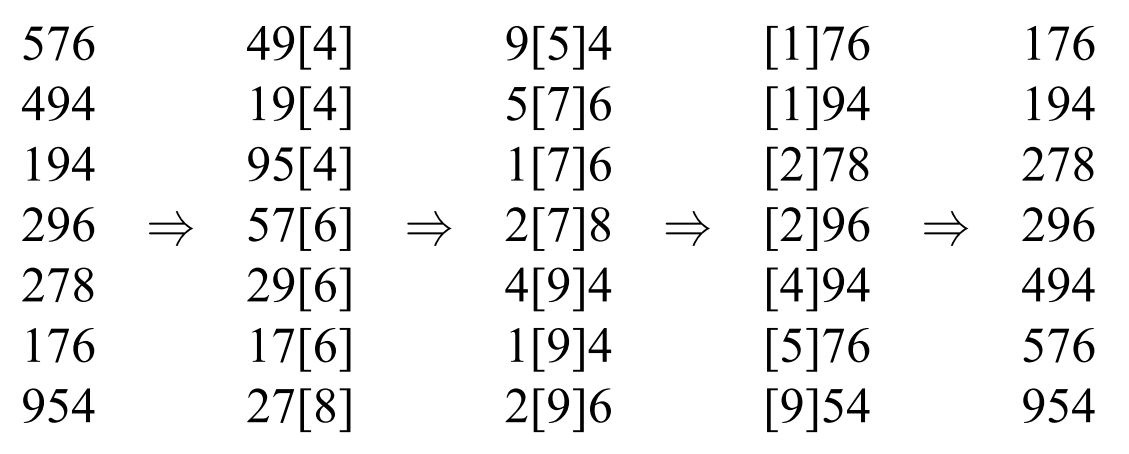

Radix sort

RadixSort(array A, int n, int d) {
    for i <- 1 to d
    do stably sort A with respect to ith lowest order digit
}

References

---

1. Read more about in-place and stable algorithms. ↩↩↩
