39. Building Polygonal Models of Surfaces

Dated: 05-07-2025

To get started, following points make it a bit easier:

Keep polygon orientations consistent. Make sure that when viewed from the outside, all the polygons on the surface are oriented in the same direction (all clockwise or all counterclockwise). Try to get this right the first time, since it's excruciatingly painful to fix the problem later. (If you use glScale*() to reflect geometry around some axis of symmetry, you might change the orientation with glFrontFace() to keep the orientations consistent.)
When you subdivide a surface, watch out for any nontriangular polygons. The three vertices of a triangle are guaranteed to lie on a plane; any polygon with four or more vertices might not. Nonplanar polygons can be viewed from some orientation such that the edges cross each other, and OpenGL might not render such polygons correctly.
There's always a trade off between performance and quality. Use small polygons for curvatures and less polygons for flat surfaces.
For high-quality images, it's a good idea to subdivide more on the outer edges than in the interior.
Try to avoid T-intersections in your models.
If you're constructing a closed surface, make sure to use exactly the same numbers for coordinates at the beginning and end of a closed loop, or you can get gaps and cracks due to numerical round-off.

Example of bad 2D code:

#define PI 3.14159265
#define EDGES 30

/*draw a circle*/
glBegin(GL_LINE_STRIP);
for (i = 0; i <= EDGES; i++)
    glVertex2f(
        cos((2 * PI * i) / EDGES),
        sin((2 * PI * i) / EDGES)
    );
glEnd();

Fixes:

When i == EDGES, use 0 for cos() and sin() functions instead of (2 * PI * EDGES / EDGES).
Use GL_LINE_LOOP instead of GL_LINE_STRIP and change the loop termination condition to i < EDGES.

An Example

Building an Icosahedron

#define X 0.525731112119133606
#define Z 0.850650808352039932

static GLfloat vdata[12][3] = {
    {-X, 0.0, Z}, {X, 0.0, Z}, {-X, 0.0, -Z}, {X, 0.0, -Z},
    {0.0, Z, X}, {0.0, Z, -X}, {0.0, -Z, X}, {0.0, -Z, -X},
    {Z, X, 0.0}, {-Z, X, 0.0}, {Z, -X, 0.0}, {-Z, -X, 0.0}
};

static GLuint tindices[20][3] = {
    {0, 4, 1}, {0, 9, 4}, {9, 5, 4}, {4, 5, 8}, {4, 8, 1},
    {8, 10, 1}, {8, 3, 10}, {5, 3, 8}, {5, 2, 3}, {2, 7, 3},
    {7, 10, 3}, {7, 6, 10}, {7, 11, 6}, {11, 0, 6}, {0, 1, 6},
    {6, 1, 10}, {9, 0, 11}, {9, 11, 2}, {9, 2, 5}, {7, 2, 11}
};

int i;
glBegin(GL_TRIANGLES);
for (i = 0; i < 20; i++) {
    // color information here
    glVertex3fv(&vdata[tindices[i][0]][0]);
    glVertex3fv(&vdata[tindices[i][1]][0]);
    glVertex3fv(&vdata[tindices[i][2]][0]);
}
glEnd();

X and Z are chosen such that the distance from the origin to any of the vertices of the icosahedron is 1.0. The coordinates of vertices are given in vdata[][] where the zeroth vertex is \((-X, 0.0, Z)\).
The first triangle is made from vertices

Zeroth
Fourth
First

Calculating Normal Vectors for a Surface

The normal vector¹ for all 3 vertices of the triangle are same.

A `triangle` with `vectors`² `normal`¹ to all of its `vertices`.

void normalize(float v[3]) {
    GLfloat d = sqrt(v[0] * v[0] + v[1] * v[1] + v[2] * v[2]);
    if (d == 0.0) {
        error("zero length vector");
        return;
    }
    v[0] /= d;
    v[1] /= d;
    v[2] /= d;
}

void normcrossprod(float v1[3], float v2[3], float out[3]) {
    out[0] = v1[1] * v2[2] - v1[2] * v2[1];
    out[1] = v1[2] * v2[0] - v1[0] * v2[2];
    out[2] = v1[0] * v2[1] - v1[1] * v2[0];
    normalize(out);
}

GLfloat d1[3], d2[3], norm[3];

for (int j = 0; j < 3; j++) {
    d1[j] = vdata[tindices[i][0]][j] - vdata[tindices[i][1]][j];
    d2[j] = vdata[tindices[i][1]][j] - vdata[tindices[i][2]][j];
}

normcrossprod(d1, d2, norm);
glNormal3fv(norm);

Here is the code that would draw an icosahedral approximation of a smoothly shaded sphere

glBegin(GL_TRIANGLES);
for (int i = 0; i < 20; i++) {
    glNormal3fv(&vdata[tindices[i][0]][0]);
    glVertex3fv(&vdata[tindices[i][0]][0]);

    glNormal3fv(&vdata[tindices[i][1]][0]);
    glVertex3fv(&vdata[tindices[i][1]][0]);

    glNormal3fv(&vdata[tindices[i][2]][0]);
    glVertex3fv(&vdata[tindices[i][2]][0]);
}
glEnd();

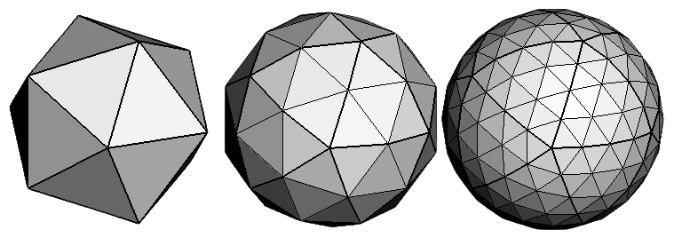

Improving the Model

Subdividing to improve approximation
Source: perso.esiee.fr/~perrotol/

Single subdivision code

void drawtriangle(float* v1, float* v2, float* v3) {
    glBegin(GL_TRIANGLES);
    glNormal3fv(v1); glVertex3fv(v1);
    glNormal3fv(v2); glVertex3fv(v2);
    glNormal3fv(v3); glVertex3fv(v3);
    glEnd();
}

void subdivide(float* v1, float* v2, float* v3) {
    GLfloat v12[3], v23[3], v31[3];
    for (int i = 0; i < 3; i++) {
        v12[i] = v1[i] + v2[i];
        v23[i] = v2[i] + v3[i];
        v31[i] = v3[i] + v1[i];
    }
    normalize(v12);
    normalize(v23);
    normalize(v31);

    drawtriangle(v1, v12, v31);
    drawtriangle(v2, v23, v12);
    drawtriangle(v3, v31, v23);
    drawtriangle(v12, v23, v31);
}

for (int i = 0; i < 20; i++) {
    subdivide(
        &vdata[tindices[i][0]][0],
        &vdata[tindices[i][1]][0],
        &vdata[tindices[i][2]][0]
    );
}

recursive subdivision code

void subdivide(float* v1, float* v2, float* v3, long depth) {
    GLfloat v12[3], v23[3], v31[3];

    if (depth == 0) {
        drawtriangle(v1, v2, v3);
        return;
    }

    for (int i = 0; i < 3; i++) {
        v12[i] = v1[i] + v2[i];
        v23[i] = v2[i] + v3[i];
        v31[i] = v3[i] + v1[i];
    }

    normalize(v12);
    normalize(v23);
    normalize(v31);

    subdivide(v1, v12, v31, depth - 1);
    subdivide(v2, v23, v12, depth - 1);
    subdivide(v3, v31, v23, depth - 1);
    subdivide(v12, v23, v31, depth - 1);
}

Generalized Subdivision

Typically, the recursion ends either if

a certain depth is reached
if some condition on the curvature is satisfied

To look at a more generalized solution to subdivision problem, consider an arbitrary surface parameterized using two variables u[0] and u[1].

The following function takes u[] and returns 3D vertex and normal unit vectors¹

void surf(GLfloat u[2], GLfloat vertex[3], GLfloat normal[3]);

The following function takes u[] and returns the curvature of the surface at that point.

float curv(GLfloat u[2]);

Following code shows the recursive routine that subdivides a triangle either until the maximum depth is reached or until the maximum curvature at the three vertices is less than some cutoff.

void subdivide(float u1[2], float u2[2], float u3[2], float cutoff, long depth) {
    GLfloat v1[3], v2[3], v3[3];
    GLfloat n1[3], n2[3], n3[3];
    GLfloat u12[2], u23[2], u31[2];

    if (depth == maxdepth || (curv(u1) < cutoff && curv(u2) < cutoff && curv(u3) < cutoff)) {
        surf(u1, v1, n1);
        surf(u2, v2, n2);
        surf(u3, v3, n3);

        glBegin(GL_POLYGON);
        glNormal3fv(n1); glVertex3fv(v1);
        glNormal3fv(n2); glVertex3fv(v2);
        glNormal3fv(n3); glVertex3fv(v3);
        glEnd();

        return;
    }

    for (int i = 0; i < 2; i++) {
        u12[i] = (u1[i] + u2[i]) / 2.0f;
        u23[i] = (u2[i] + u3[i]) / 2.0f;
        u31[i] = (u3[i] + u1[i]) / 2.0f;
    }

    subdivide(u1, u12, u31, cutoff, depth + 1);
    subdivide(u2, u23, u12, cutoff, depth + 1);
    subdivide(u3, u31, u23, cutoff, depth + 1);
    subdivide(u12, u23, u31, cutoff, depth + 1);
}

References

Read more about surface normals. ↩↩↩
Read more about vectors. ↩
