43. Real World and `Opengl` Lighting

Dated: 13-07-2025

When we look at a physical surface, our eye's perception of the color depends on the distribution of photon energies that arrive and trigger our cone cells. Those photons come from a light source or combination of sources, some of which are absorbed and some are reflected by the surface. In addition, different surfaces may have very different properties - some are shiny and preferentially reflect light in certain directions, while others scatter incoming light equally in all directions. Most surfaces are somewhere in between.

The OpenGL lighting model considers the lighting to be divided into four independent components:

emissive¹
ambient¹
diffuse¹
specular¹

All four components are computed independently and then added together.

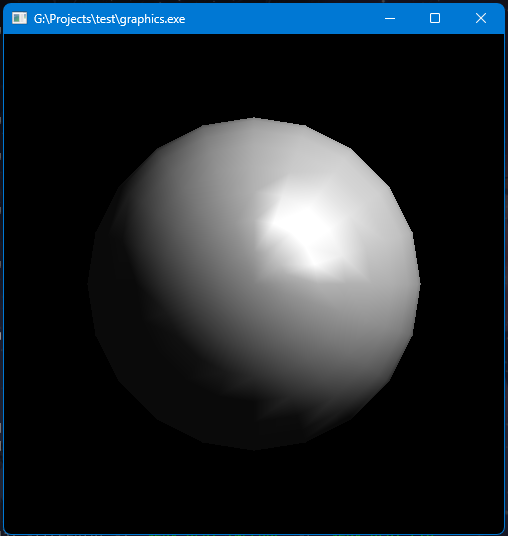

A Simple Example: Rendering a Lit `Sphere`

These are the steps required to add lighting to our scene.

Define normals² to each vertex of the object (helps in determining orientation with relation to light source).
Create, select, and position one or more light sources.
Create and select a lighting model which determines
- level of global ambient light¹
- effective location of the viewpoint
Define material properties for the objects in the scene.

#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/glut.h>

void init(void) {
    GLfloat mat_specular[] = { 1.0, 1.0, 1.0, 1.0 };
    GLfloat mat_shininess[] = { 50.0 };
    GLfloat light_position[] = { 1.0, 1.0, 1.0, 0.0 };
    glClearColor(0.0, 0.0, 0.0, 0.0);
    glShadeModel(GL_SMOOTH);
    glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
    glMaterialfv(GL_FRONT, GL_SHININESS, mat_shininess);
    glLightfv(GL_LIGHT0, GL_POSITION, light_position);
    glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glEnable(GL_DEPTH_TEST);
}

void display(void) {
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glutSolidSphere(1.0, 20, 16);
    glFlush();
}

void reshape(int w, int h) {
    glViewport(0, 0, (GLsizei) w, (GLsizei) h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();

    if (w <= h)
        glOrtho(-1.5, 1.5, -1.5*(GLfloat)h/(GLfloat)w, 1.5*(GLfloat)h/(GLfloat)w, -10.0, 10.0);
    else
        glOrtho(-1.5*(GLfloat)w/(GLfloat)h, 1.5*(GLfloat)w/(GLfloat)h, -1.5, 1.5, -10.0, 10.0);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
}

int main(int argc, char** argv) {
    glutInit(&argc, argv);
    glutInitDisplayMode (GLUT_SINGLE | GLUT_RGB | GLUT_DEPTH);
    glutInitWindowSize (500, 500);
    glutInitWindowPosition (100, 100);
    glutCreateWindow (argv[0]);
    init();
    glutDisplayFunc(display);
    glutReshapeFunc(reshape);
    glutMainLoop();

    return 0;
}

RGBA color mode is preferred in comparison to color index mode because lighting capabilities of color index are limited

Steps in Details

Defining `normal vectors`² for Each `vertex` of Every Object

An object's normals² determine its orientation relative to the light sources. In the example, these normals² are defined in glutSolidSphere().

Create, Position, and Enable One or More light Sources

The example uses only one white light source specified by glLightfv() call. We can introduce at least 8 different light sources with different colors (the default for OpenGL is black). We also need to call glEnable() with GL_LIGHTING as a parameter to prepare OpenGL to perform lighting calculations.

Select a Lighting Model

In the example, the only element of the lighting model that's defined explicitly is the global ambient light. This example uses the default settings, i.e.

A viewer with infinite distance
One sided lighting

Define Material Properties for the Objects in the Scene

An object's material properties determine how it reflects light and therefore what material it seems to be made of. In this example, we used only 2 material properties, specified with glMaterialfv().

Creating light Sources

void glLighti(GLenum light, GLenum pname, TYPE param);
void glLightf(GLenum light, GLenum pname, TYPE param);
void glLightiv(GLenum light, GLenum pname, TYPE *param);
void glLightfv(GLenum light, GLenum pname, TYPE *param);

These functions create lights ranging from GL_LIGHT0 to GL_LIGHT7.
The characteristics of the light being set is defined by pname.
The param indicates the value to which pname is set. For the vectorized version, a pointer³ to the vector is used.

Parameter name	Default Value	Meaning
`GL_AMBIENT`	\((0.0, 0.0, 0.0, 1.0)\)	ambient `RGBA` intensity of light
`GL_DIFFUSE`	\((1.0, 1.0, 1.0, 1.0)\)	diffuse `RGBA` intensity of light
`GL_SPECULAR`	\((1.0, 1.0, 1.0, 1.0)\)	specular `RGBA` intensity of light
`GL_POSITION`	\((0.0, 0.0, 1.0, 0.0)\)	\((x, y, z, w)\) position of light
`GL_SPOT_DIRECTION`	\((0.0, 0.0, -1.0)\)	\((x, y, z)\) direction of spotlight
`GL_SPOT_EXPONENT`	\(0.0\)	spotlight exponent
`GL_SPOT_CUTOFF`	\(180.0\)	spotlight cutoff angle
`GL_CONSTANT_ATTENUATION`	\(1.0\)	constant attenuation factor
`GL_LINEAR_ATTENUATION`	\(0.0\)	linear attenuation factor
`GL_QUADRATIC_ATTENUATION`	\(0.0\)	quadratic attenuation factor

Example

Defining colors and position of a light source.

GLfloat light_ambient[] = { 0.0, 0.0, 0.0, 1.0 };
GLfloat light_diffuse[] = { 1.0, 1.0, 1.0, 1.0 };
GLfloat light_specular[] = { 1.0, 1.0, 1.0, 1.0 };
GLfloat light_position[] = { 1.0, 1.0, 1.0, 0.0 };

glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient);
glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse);
glLightfv(GL_LIGHT0, GL_SPECULAR, light_specular);
glLightfv(GL_LIGHT0, GL_POSITION, light_position);

Remember to turn each light on using glEnable().

The alpha component of these colors is not used until blending is enabled.

Position and Attenuation

Parallel lights (sources are at infinite distance) are directional
Sources of light within the scene are positional

we supply a 4 valued vector⁴ \((x, y, z, w)\) for GL_POSITION.

If \(w = 0\) then the corresponding light is directional one and \((x, y, z)\) describe its direction.
If \(w \ne 0\) then the corresponding light is positional one and \((x, y, z)\) describe its direction in homogeneous object coordinates.

OpenGL attenuates a light source by multiplying the contribution of that source by an attenuation factor

\[\text{attenuation factor} = \frac 1 {k_c + k_l d + k_q d^2}\]

where

\(d\) is distance between light's position and the vertex
\(k_c\) is GL_CONSTANT_ATTENUATION
\(k_l\) is GL_LINEAR_ATTENUATION
\(k_q\) is GL_QUADRATIC_ATTENUATION

glLightf(GL_LIGHT0, GL_CONSTANT_ATTENUATION, 2.0);
glLightf(GL_LIGHT0, GL_LINEAR_ATTENUATION, 1.0);
glLightf(GL_LIGHT0, GL_QUADRATIC_ATTENUATION, 0.5);

Spotlights

Converting a `positional` light into a `spotlight`

Controlling a Light's Position and Direction

We can manipulate a light source's position or direction by changing the contents of the modelview matrix.⁵

The projection matrix⁵ has no effect on a light's position or direction.

Keeping the light Stationary

The code inside init() and reshape() could be

glViewport(0, 0, (GLsizei) w, (GLsizei) h);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();

if (w <= h)
    glOrtho(-1.5, 1.5, -1.5 * h / w, 1.5 * h / w, -10.0, 10.0);
else
    glOrtho(-1.5 * w / h, 1.5 * w / h, -1.5, 1.5, -10.0, 10.0);

glMatrixMode(GL_MODELVIEW);
glLoadIdentity();

/* later in init() */
GLfloat light_position[] = { 1.0, 1.0, 1.0, 1.0 };
glLightfv(GL_LIGHT0, GL_POSITION, position);

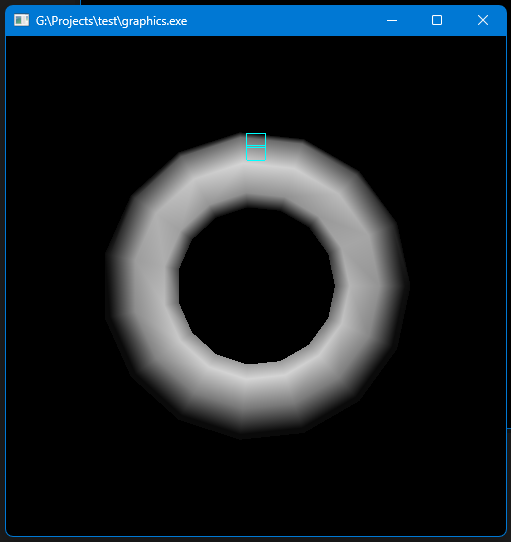

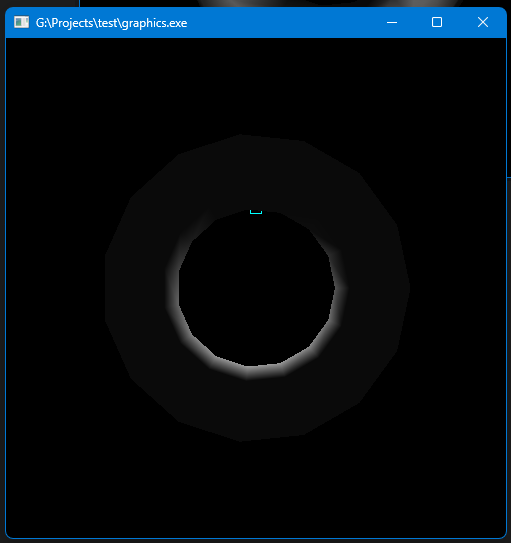

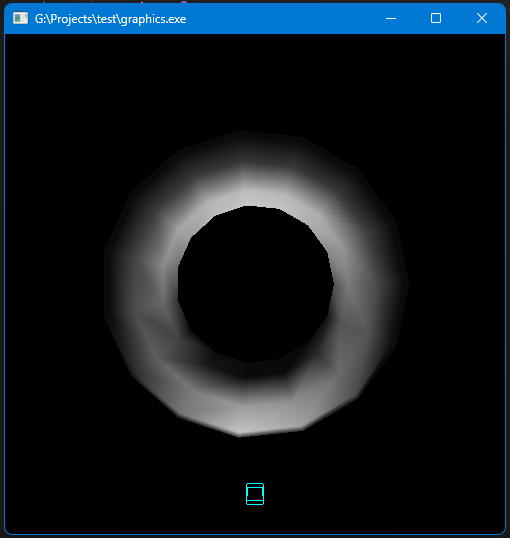

Independently Moving the light

Now suppose we want to rotate or translate the light position so that the light moves relative to a stationary object.

#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/glut.h>

static int spin = 0;

void init(void) {
    glClearColor(0.0, 0.0, 0.0, 0.0);
    glShadeModel(GL_SMOOTH);
    glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glEnable(GL_DEPTH_TEST);
}
/* Here is where the light position is reset after the modeling
* transformation (glRotated) is called. This places the
* light at a new position in world coordinates. The cube
* represents the position of the light.
*/
void display(void) {
    GLfloat position[] = { 0.0, 0.0, 1.5, 1.0 };
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glPushMatrix();
    glTranslatef(0.0, 0.0, -5.0);
    glPushMatrix();
    glRotated((GLdouble) spin, 1.0, 0.0, 0.0);
    glLightfv(GL_LIGHT0, GL_POSITION, position);
    glTranslated(0.0, 0.0, 1.5);
    glDisable(GL_LIGHTING);
    glColor3f(0.0, 1.0, 1.0);
    glutWireCube(0.1);
    glEnable(GL_LIGHTING);
    glPopMatrix();
    glutSolidTorus (0.275, 0.85, 8, 15);
    glPopMatrix();
    glFlush();
}

void reshape(int w, int h) {
    glViewport(0, 0, (GLsizei) w, (GLsizei) h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluPerspective(40.0, (GLfloat) w/(GLfloat) h, 1.0, 20.0);
    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
}

void mouse(int button, int state, int x, int y) {
    switch (button) {
        case GLUT_LEFT_BUTTON:
            if (state == GLUT_DOWN) {
                spin = (spin + 30) % 360;
                glutPostRedisplay();
            }
            break;

        default:
            break;
    }
}

int main(int argc, char** argv) {

    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB | GLUT_DEPTH);
    glutInitWindowSize(500, 500);
    glutInitWindowPosition(100, 100);
    glutCreateWindow(argv[0]);
    init();
    glutDisplayFunc(display);
    glutReshapeFunc(reshape);
    glutMouseFunc(mouse);
    glutMainLoop();

    return 0;
}

Selecting a Lighting Model

The OpenGL notion of a lighting model has three components

The global ambient light intensity
Whether the viewpoint position is local to the scene or whether it should be considered to be an infinite distance away
Whether lighting calculations should be performed differently for both the front and back faces of objects

The functions OpenGL provides are following

void glLightModeli(GLenum pname, TYPE param);
void glLightModelf(GLenum pname, TYPE param);
void glLightModeliv(GLenum pname, TYPE *param);
void glLightModelfv(GLenum pname, TYPE *param);

Parameter name	Default Value	Meaning
`GL_LIGHT_MODEL_AMBIENT`	\((0.2, 0.2, 0.2, 1.0)\)	ambient `RGBA` intensity of the entire scene
`GL_LIGHT_MODEL_LOCAL_VIEWER`	\(0.0\) or `GL_FALSE`	how specular reflection angles are computed
`GL_LIGHT_MODEL_TWO_SIDE`	\(0.0\) or `GL_FALSE`	choose between one sided or two sided lighting

Global `Ambient light`¹

GLfloat lmodel_ambient[] = { 0.2, 0.2, 0.2, 1.0 };
glLightModelfv(GL_LIGHT_MODEL_AMBIENT, lmodel_ambient);

Enabling Lighting

With OpenGL, we need to explicitly enable (or disable) lighting.

glEnable(GL_LIGHTING);
glDisable(GL_LIGHTING);

Enabling one specific light:

glEnable(GL_LIGHT0);

Defining `Material` Properties

void glMateriali(GLenum face, GLenum pname, TYPE param);
void glMaterialf(GLenum face, GLenum pname, TYPE param);
void glMaterialiv(GLenum face, GLenum pname, TYPE *param);
void glMaterialfv(GLenum face, GLenum pname, TYPE *param);

Parameter Name	Default Value	Meaning
`GL_AMBIENT`	\((0.2, 0.2, 0.2, 1.0)\)	ambient color of material
`GL_DIFFUSE`	\((0.8, 0.8, 0.8, 1.0)\)	diffuse color of material
`GL_AMBIENT_AND_DIFFUSE`		ambient and diffuse color of material
`GL_SPECULAR`	\((0.0, 0.0, 0.0, 1.0)\)	specular color of material
`GL_SHININESS`	\(0.0\)	specular exponent
`GL_EMISSION`	\((0.0, 0.0, 0.0, 1.0)\)	emissive color of material
`GL_COLOR_INDEXES`	\((0, 1, 1)\)	ambient, diffuse and specular color indices

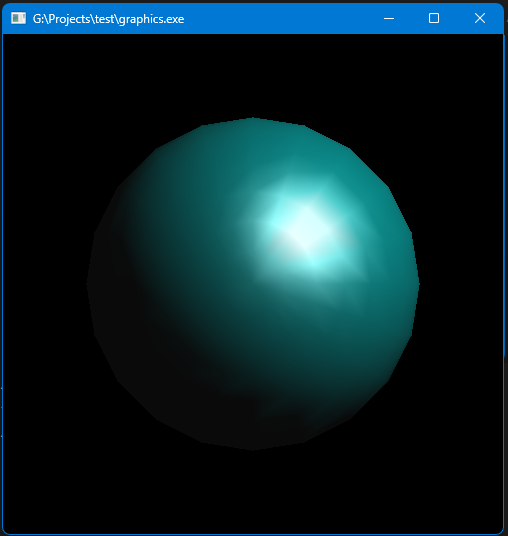

Diffuse and Ambient Reflection

GLfloat mat_amb_diff[] = { 0.1, 0.5, 0.8, 1.0 };
glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE, mat_amb_diff);

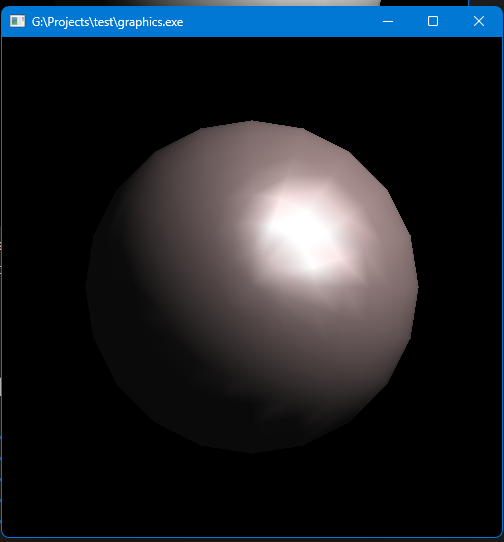

Specular Reflection

GLfloat mat_specular[] = { 1.0, 1.0, 1.0, 1.0 };
GLfloat low_shininess[] = { 5.0 };
glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
glMaterialfv(GL_FRONT, GL_SHININESS, low_shininess);

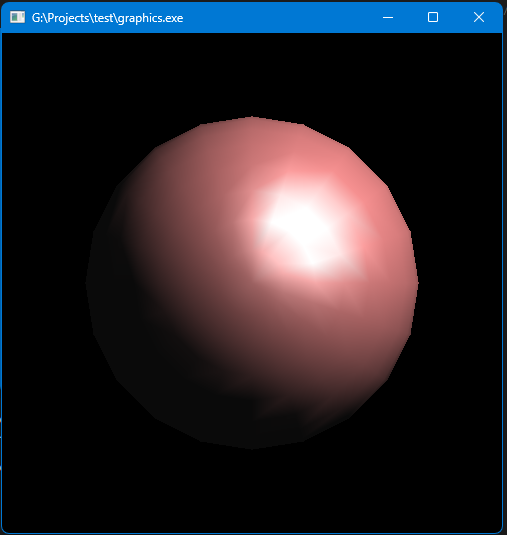

Emission

By specifying an RGBA color for GL_EMISSION, we can make an object appear to be giving off light of that color.

GLfloat mat_emission[] = {0.3, 0.2, 0.2, 0.0};
glMaterialfv(GL_FRONT, GL_EMISSION, mat_emission);

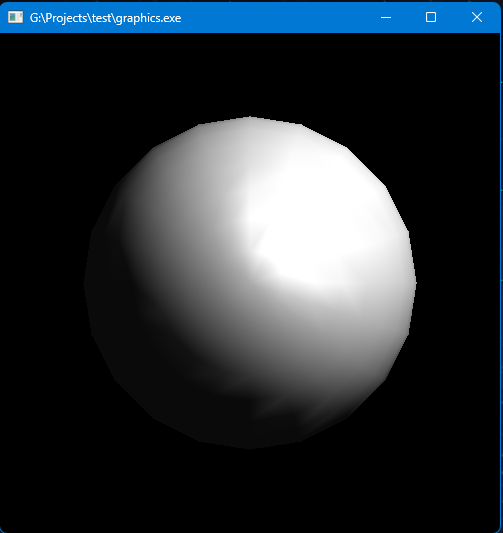

Changing Material Properties

void glColorMaterial(GLenum face, GLenum mode);

OpenGL does not maintain separate mode variables for each face. After calling glColorMaterial(), we need to call glEnable() with GL_COLOR_MATERIAL as the parameter.

#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/glut.h>

GLfloat diffuseMaterial[4] = { 0.5, 0.5, 0.5, 1.0 };

void init(void) {
    GLfloat mat_specular[] = { 1.0, 1.0, 1.0, 1.0 };
    GLfloat light_position[] = { 1.0, 1.0, 1.0, 0.0 };
    glClearColor(0.0, 0.0, 0.0, 0.0);
    glShadeModel(GL_SMOOTH);
    glEnable(GL_DEPTH_TEST);
    glMaterialfv(GL_FRONT, GL_DIFFUSE, diffuseMaterial);
    glMaterialfv(GL_FRONT, GL_SPECULAR, mat_specular);
    glMaterialf(GL_FRONT, GL_SHININESS, 25.0);
    glLightfv(GL_LIGHT0, GL_POSITION, light_position);
    glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glColorMaterial(GL_FRONT, GL_DIFFUSE);
    glEnable(GL_COLOR_MATERIAL);
}

void display(void) {
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glutSolidSphere(1.0, 20, 16);
    glFlush();
}

void reshape(int w, int h) {
    glViewport(0, 0, (GLsizei) w, (GLsizei) h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();

    if (w <= h)
        glOrtho(-1.5, 1.5, -1.5*(GLfloat)h/(GLfloat)w, 1.5*(GLfloat)h/(GLfloat)w, -10.0, 10.0);
    else
        glOrtho (-1.5*(GLfloat)w/(GLfloat)h, 1.5*(GLfloat)w/(GLfloat)h, -1.5, 1.5, -10.0, 10.0);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
}

void mouse(int button, int state, int x, int y) {
    switch (button) {
        case GLUT_LEFT_BUTTON:
            if (state == GLUT_DOWN) { /* change red */
                diffuseMaterial[0] += 0.1;

                if (diffuseMaterial[0] > 1.0)
                    diffuseMaterial[0] = 0.0;

                glColor4fv(diffuseMaterial);
                glutPostRedisplay();
            }
            break;

        case GLUT_MIDDLE_BUTTON:
            if (state == GLUT_DOWN) { /* change green */
                diffuseMaterial[1] += 0.1;

                if (diffuseMaterial[1] > 1.0)
                    diffuseMaterial[1] = 0.0;

                glColor4fv(diffuseMaterial);
                glutPostRedisplay();
            }
            break;

        case GLUT_RIGHT_BUTTON:
            if (state == GLUT_DOWN) { /* change blue */
                diffuseMaterial[2] += 0.1;

                if (diffuseMaterial[2] > 1.0)
                    diffuseMaterial[2] = 0.0;

                glColor4fv(diffuseMaterial);
                glutPostRedisplay();
            }
            break;

        default:
            break;
    }
}

int main(int argc, char** argv) {
    glutInit(&argc, argv);
    glutInitDisplayMode (GLUT_SINGLE | GLUT_RGB | GLUT_DEPTH);
    glutInitWindowSize (500, 500);
    glutInitWindowPosition (100, 100);
    glutCreateWindow (argv[0]);
    init();
    glutDisplayFunc(display);
    glutReshapeFunc(reshape);
    glutMouseFunc(mouse);
    glutMainLoop();

    return 0;
}

References

Read more about lighting types. ↩↩↩↩↩↩
Read more about surface normals. ↩↩↩↩
Read more about pointers. ↩
Read more about vectors. ↩
Read more about matrices. ↩↩

43. Real World and Opengl Lighting

A Simple Example: Rendering a Lit Sphere

Steps in Details

Defining normal vectors2 for Each vertex of Every Object

Create, Position, and Enable One or More light Sources

Select a Lighting Model

Define Material Properties for the Objects in the Scene

Creating light Sources

Example

Position and Attenuation

Spotlights

Controlling a Light's Position and Direction

Keeping the light Stationary

Independently Moving the light

Selecting a Lighting Model

Global Ambient light1

Enabling Lighting

Defining Material Properties

Diffuse and Ambient Reflection

Specular Reflection

Emission

Changing Material Properties

References

43. Real World and `Opengl` Lighting

A Simple Example: Rendering a Lit `Sphere`

Defining `normal vectors`² for Each `vertex` of Every Object

Global `Ambient light`¹

Defining `Material` Properties
